About the Project-Multi-Path-LED-Indicator-Board

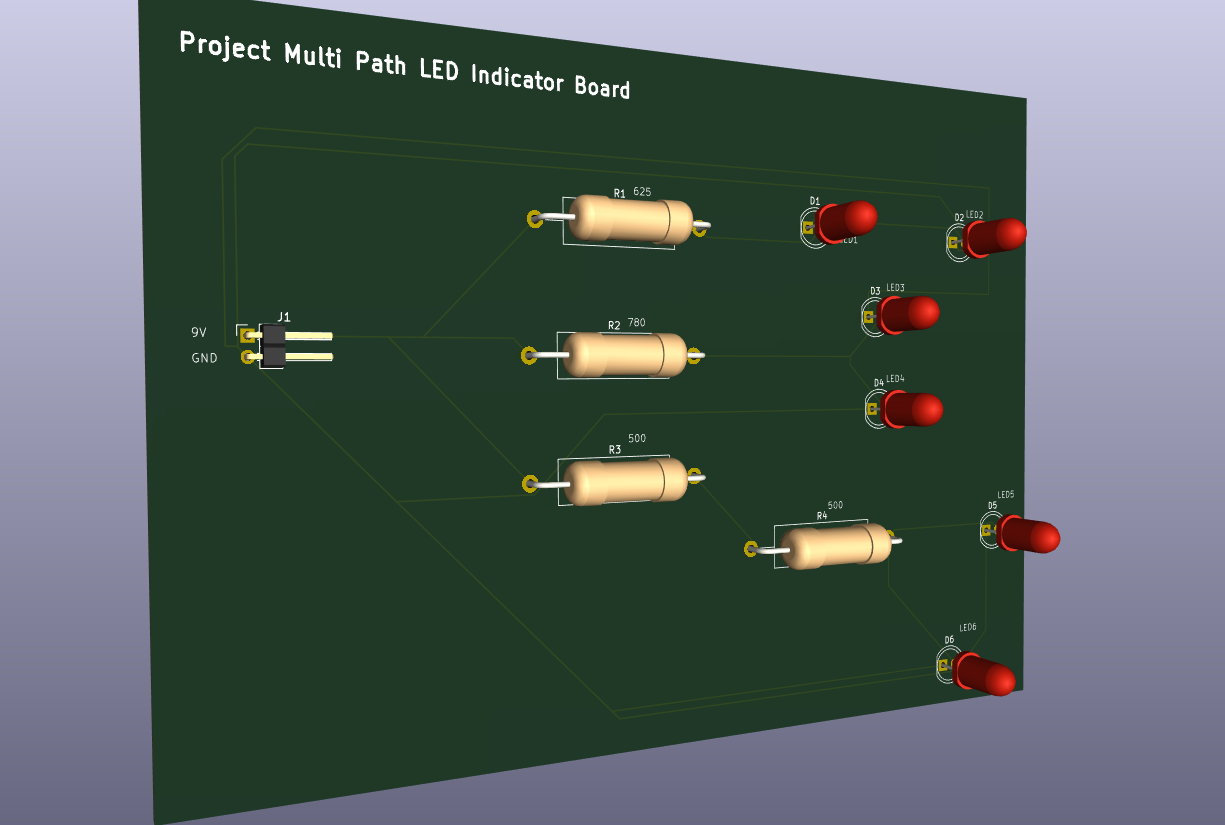

Project-Multi-Path-LED-Indicator-Board is an open source PCB design by Nikolov999, published on GitHub. It is a 2-layer board measuring 137 × 97 mm, with 11 components from 5 distinct parts.
By type, the board carries 6 diodes, 4 resistors and 1 connector.
From the project
A 9 V through-hole KiCad project created as a self-directed exercise in mixed series/parallel circuit analysis, resistor sizing, current splitting, PCB design, and design verification.
A 9 V through-hole KiCad project created as a self-directed exercise in mixed series/parallel circuit analysis, resistor sizing, current splitting, PCB design, and design verification.
The project deliberately combines different branch structures rather than repeating the same resistor-and-LED branch six times.
The exercise brief was generated by ChatGPT (OpenAI, GPT-5.6 Sol) at the my request as part of a hands-on electronics learning session.
Project-Multi-Path-LED-Indicator-Board bill of materials (BOM)
11 components, 5 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 1X02 Conn_01x02 | PinHeader_1x02_P2.54mm_Horizontal | J1 |
| 6 | LED | LED_D5.0mm | D1, D2, D3, D4, D5, D6 |
| 1 | 625 | R_Axial_DIN0617_L17.0mm_D6.0mm_P25.40mm_Horizontal | R1 |
| 1 | 780 | R_Axial_DIN0617_L17.0mm_D6.0mm_P25.40mm_Horizontal | R2 |
| 2 | 500 | R_Axial_DIN0617_L17.0mm_D6.0mm_P25.40mm_Horizontal | R3, R4 |
Project-Multi-Path-LED-Indicator-Board design files
The KiCad project lives in the Nikolov999/Project-Multi-Path-LED-Indicator-Board repository on GitHub; these links point at the commit this page was built from.
Project-Multi-Path-LED-Indicator-Board: common questions
How big is the Project-Multi-Path-LED-Indicator-Board?
The Project-Multi-Path-LED-Indicator-Board measures 137 × 97 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Project-Multi-Path-LED-Indicator-Board?
11 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Project-Multi-Path-LED-Indicator-Board design files?
From the Nikolov999/Project-Multi-Path-LED-Indicator-Board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Project-Multi-Path-LED-Indicator-Board design in my own project?
The repository has no license, so all rights stay with Nikolov999. Use it as a reference, and ask the author before reusing the design.
