Kbd75mock v2 routed

NilujePerchut·kbd75mockv2·hard/pcb/final_pcb/kbd75mock_v2_routed.kicad_pcb

Kbd75mock v2 routed PCB layout, top view — open source board by NilujePerchut

About the Kbd75mock v2 routed PCB

Kbd75mock v2 routed is an open source PCB design by NilujePerchut, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 305.1 × 117.4 mm, with 349 components from 302 distinct parts.

Other key parts include the None. By type, the board carries 190 diodes, 93 switches, 34 capacitors, 13 fuses, 9 resistors and 5 ICs.

From the project

Foolish attempt to make a KBD75v2 mechanicaly compatible board

An open-source KBD75V2 alternative PCB with the following features: - STM32F103 microcontroller - Per-Key RGB backlight (SK6812MINI-E) - 16 RGB backlight LEDs (compatible with offical foam hole location) - USB-C connector - AINSI & ISO layouts - Alternate layout for spacebar right side keys - Mechanicaly compatible with the KBDFans KBD75V2 case - Also compatible with the YMDK84 case (tested with acrylic case) - QMK compatible (see qmk firmware support) - JLCPCB friendly workflow: - Complies with JLCPCB design rules - Uses component available at JLCPCB SMT part

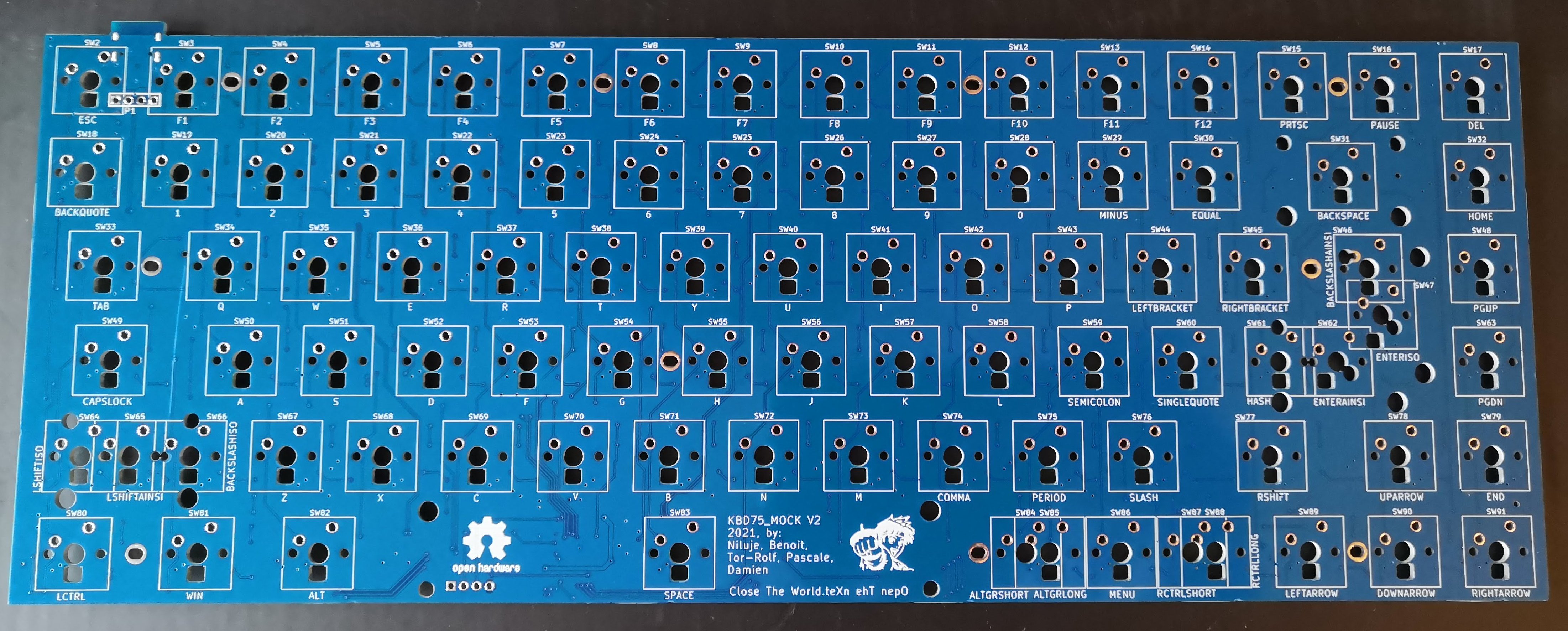

Kbd75mock v2 routed, from the project README — From the project README

Main components on the Kbd75mock v2 routed

Kbd75mock v2 routed bill of materials (BOM)

349 components, 302 distinct parts.

Qty	Part	Footprint	Refs
1	None	TSOT-23-6	U1
1	None	SOT-223	U2
1	None	LQFP-48_7x7mm_P0.5mm	U3
2	None	SOT23-5	U4, U5
1	None	Oscillator_SMD_Abracon_ASV-4Pin_7.0x5.1mm	X1
1	None	USB_C_Receptacle_HRO_TYPE-C-31-M-12	J1
2	None	SIL4	P1, P2
3	None	JLCPCB_TOOLING_HOLE	F1, F2, F3
10	None	FIX_KEYBOARD	F4, F5, F6, F7, F8, F9, F10, F11 +2
1	None	Sakura_big	S1
1	None	YMDK_case	S2
1	None	SW_SPST_TL3342	SW1
1	ESC	SW_Cherry_MX_1.00u_PCB	SW2
1	F1	SW_Cherry_MX_1.00u_PCB	SW3
1	F2	SW_Cherry_MX_1.00u_PCB	SW4
1	F3	SW_Cherry_MX_1.00u_PCB	SW5
1	F4	SW_Cherry_MX_1.00u_PCB	SW6
1	F5	SW_Cherry_MX_1.00u_PCB	SW7
1	F6	SW_Cherry_MX_1.00u_PCB	SW8
1	F7	SW_Cherry_MX_1.00u_PCB	SW9

Show 282 more

Qty	Part	Footprint	Refs
1	F8	SW_Cherry_MX_1.00u_PCB	SW10
1	F9	SW_Cherry_MX_1.00u_PCB	SW11
1	F10	SW_Cherry_MX_1.00u_PCB	SW12
1	F11	SW_Cherry_MX_1.00u_PCB	SW13
1	F12	SW_Cherry_MX_1.00u_PCB	SW14
1	PRTSC	SW_Cherry_MX_1.00u_PCB	SW15
1	PAUSE	SW_Cherry_MX_1.00u_PCB	SW16
1	DEL	SW_Cherry_MX_1.00u_PCB	SW17
1	BACKQUOTE	SW_Cherry_MX_1.00u_PCB	SW18
1	1	SW_Cherry_MX_1.00u_PCB	SW19
1	2	SW_Cherry_MX_1.00u_PCB	SW20
1	3	SW_Cherry_MX_1.00u_PCB	SW21
1	4	SW_Cherry_MX_1.00u_PCB	SW22
1	5	SW_Cherry_MX_1.00u_PCB	SW23
1	6	SW_Cherry_MX_1.00u_PCB	SW24
1	7	SW_Cherry_MX_1.00u_PCB	SW25
1	8	SW_Cherry_MX_1.00u_PCB	SW26
1	9	SW_Cherry_MX_1.00u_PCB	SW27
1	0	SW_Cherry_MX_1.00u_PCB	SW28
1	MINUS	SW_Cherry_MX_1.00u_PCB	SW29
1	EQUAL	SW_Cherry_MX_1.00u_PCB	SW30
1	BACKSPACE	SW_Cherry_MX_2.00u_PCB	SW31
1	HOME	SW_Cherry_MX_1.00u_PCB	SW32
1	TAB	SW_Cherry_MX_1.50u_PCB	SW33
1	Q	SW_Cherry_MX_1.00u_PCB	SW34
1	W	SW_Cherry_MX_1.00u_PCB	SW35
1	E	SW_Cherry_MX_1.00u_PCB	SW36
1	R	SW_Cherry_MX_1.00u_PCB	SW37
1	T	SW_Cherry_MX_1.00u_PCB	SW38
1	Y	SW_Cherry_MX_1.00u_PCB	SW39
1	U	SW_Cherry_MX_1.00u_PCB	SW40
1	I	SW_Cherry_MX_1.00u_PCB	SW41
1	O	SW_Cherry_MX_1.00u_PCB	SW42
1	P	SW_Cherry_MX_1.00u_PCB	SW43
1	LEFTBRACKET	SW_Cherry_MX_1.00u_PCB	SW44
1	RIGHTBRACKET	SW_Cherry_MX_1.00u_PCB	SW45
1	BACKSLASHAINSI	SW_Cherry_MX_1.50u_PCB_ainsi_backslash	SW46
1	ENTERISO	SW_Cherry_MX_ISOEnter_PCB	SW47
1	PGUP	SW_Cherry_MX_1.00u_PCB	SW48
1	CAPSLOCK	SW_Cherry_MX_1.75u_PCB	SW49
1	A	SW_Cherry_MX_1.00u_PCB	SW50
1	S	SW_Cherry_MX_1.00u_PCB	SW51
1	D	SW_Cherry_MX_1.00u_PCB	SW52
1	F	SW_Cherry_MX_1.00u_PCB	SW53
1	G	SW_Cherry_MX_1.00u_PCB	SW54
1	H	SW_Cherry_MX_1.00u_PCB	SW55
1	J	SW_Cherry_MX_1.00u_PCB	SW56
1	K	SW_Cherry_MX_1.00u_PCB	SW57
1	L	SW_Cherry_MX_1.00u_PCB	SW58
1	SEMICOLON	SW_Cherry_MX_1.00u_PCB	SW59
1	SINGLEQUOTE	SW_Cherry_MX_1.00u_PCB	SW60
1	HASH	SW_Cherry_MX_1.00u_PCB	SW61
1	ENTERAINSI	SW_Cherry_MX_2.25u_PCB	SW62
1	PGDN	SW_Cherry_MX_1.00u_PCB	SW63
1	LSHIFTISO	SW_Cherry_MX_1.25u_PCB	SW64
1	LSHIFTAINSI	SW_Cherry_MX_2.25u_PCB	SW65
1	BACKSLASHISO	SW_Cherry_MX_1.00u_PCB	SW66
1	Z	SW_Cherry_MX_1.00u_PCB	SW67
1	X	SW_Cherry_MX_1.00u_PCB	SW68
1	C	SW_Cherry_MX_1.00u_PCB	SW69
1	V	SW_Cherry_MX_1.00u_PCB	SW70
1	B	SW_Cherry_MX_1.00u_PCB	SW71
1	N	SW_Cherry_MX_1.00u_PCB	SW72
1	M	SW_Cherry_MX_1.00u_PCB	SW73
1	COMMA	SW_Cherry_MX_1.00u_PCB	SW74
1	PERIOD	SW_Cherry_MX_1.00u_PCB	SW75
1	SLASH	SW_Cherry_MX_1.00u_PCB	SW76
1	RSHIFT	SW_Cherry_MX_1.75u_PCB	SW77
1	UPARROW	SW_Cherry_MX_1.00u_PCB	SW78
1	END	SW_Cherry_MX_1.00u_PCB	SW79
1	LCTRL	SW_Cherry_MX_1.25u_PCB	SW80
1	WIN	SW_Cherry_MX_1.25u_PCB	SW81
1	ALT	SW_Cherry_MX_1.25u_PCB	SW82
1	SPACE	SW_Cherry_MX_6.25u_PCB_ROTATED	SW83
1	ALTGRSHORT	SW_Cherry_MX_1.00u_PCB	SW84
1	ALTGRLONG	SW_Cherry_MX_1.50u_PCB	SW85
1	MENU	SW_Cherry_MX_1.00u_PCB	SW86
1	RCTRLSHORT	SW_Cherry_MX_1.50u_PCB	SW87
1	RCTRLLONG	SW_Cherry_MX_1.00u_PCB	SW88
1	LEFTARROW	SW_Cherry_MX_1.00u_PCB	SW89
1	DOWNARROW	SW_Cherry_MX_1.00u_PCB	SW90
1	RIGHTARROW	SW_Cherry_MX_1.00u_PCB	SW91
1	None	0805LED	D1
1	ESC	D_SOD-123F	D2
1	F1	D_SOD-123F	D3
1	F2	D_SOD-123F	D4
1	F3	D_SOD-123F	D5
1	F4	D_SOD-123F	D6
1	F5	D_SOD-123F	D7
1	F6	D_SOD-123F	D8
1	F7	D_SOD-123F	D9
1	F8	D_SOD-123F	D10
1	F9	D_SOD-123F	D11
1	F10	D_SOD-123F	D12
1	F11	D_SOD-123F	D13
1	F12	D_SOD-123F	D14
1	PRTSC	D_SOD-123F	D15
1	PAUSE	D_SOD-123F	D16
1	DEL	D_SOD-123F	D17
1	BACKQUOTE	D_SOD-123F	D18
1	1	D_SOD-123F	D19
1	2	D_SOD-123F	D20
1	3	D_SOD-123F	D21
1	4	D_SOD-123F	D22
1	5	D_SOD-123F	D23
1	6	D_SOD-123F	D24
1	7	D_SOD-123F	D25
1	8	D_SOD-123F	D26
1	9	D_SOD-123F	D27
1	0	D_SOD-123F	D28
1	MINUS	D_SOD-123F	D29
1	EQUAL	D_SOD-123F	D30
1	BACKSPACE	D_SOD-123F	D31
1	HOME	D_SOD-123F	D32
1	TAB	D_SOD-123F	D33
1	Q	D_SOD-123F	D34
1	W	D_SOD-123F	D35
1	E	D_SOD-123F	D36
1	R	D_SOD-123F	D37
1	T	D_SOD-123F	D38
1	Y	D_SOD-123F	D39
1	U	D_SOD-123F	D40
1	I	D_SOD-123F	D41
1	O	D_SOD-123F	D42
1	P	D_SOD-123F	D43
1	LEFTBRACKET	D_SOD-123F	D44
1	RIGHTBRACKET	D_SOD-123F	D45
1	BACKSLASHAINSI	D_SOD-123F	D46
1	PGUP	D_SOD-123F	D47
1	CAPSLOCK	D_SOD-123F	D48
1	A	D_SOD-123F	D49
1	S	D_SOD-123F	D50
1	D	D_SOD-123F	D51
1	F	D_SOD-123F	D52
1	G	D_SOD-123F	D53
1	H	D_SOD-123F	D54
1	J	D_SOD-123F	D55
1	K	D_SOD-123F	D56
1	L	D_SOD-123F	D57
1	SEMICOLON	D_SOD-123F	D58
1	SINGLEQUOTE	D_SOD-123F	D59
1	HASH	D_SOD-123F	D60
1	PGDN	D_SOD-123F	D61
1	LSHIFTISO	D_SOD-123F	D62
1	BACKSLASHISO	D_SOD-123F	D63
1	Z	D_SOD-123F	D64
1	X	D_SOD-123F	D65
1	C	D_SOD-123F	D66
1	V	D_SOD-123F	D67
1	B	D_SOD-123F	D68
1	N	D_SOD-123F	D69
1	M	D_SOD-123F	D70
1	COMMA	D_SOD-123F	D71
1	PERIOD	D_SOD-123F	D72
1	SLASH	D_SOD-123F	D73
1	RSHIFT	D_SOD-123F	D74
1	UPARROW	D_SOD-123F	D75
1	END	D_SOD-123F	D76
1	LCTRL	D_SOD-123F	D77
1	WIN	D_SOD-123F	D78
1	ALT	D_SOD-123F	D79
1	SPACE	D_SOD-123F	D80
1	ALTGRSHORT	D_SOD-123F	D81
1	MENU	D_SOD-123F	D82
1	RCTRLSHORT	D_SOD-123F	D83
1	LEFTARROW	D_SOD-123F	D84
1	DOWNARROW	D_SOD-123F	D85
1	RIGHTARROW	D_SOD-123F	D86
1	LCTRL	SK6812-MINI-E	D87
1	WIN	SK6812-MINI-E	D88
1	ALT	SK6812-MINI-E	D89
1	SPACE	SK6812-MINI-E	D90
1	ALTGRLONG	SK6812-MINI-E	D91
1	MENU	SK6812-MINI-E	D92
1	RCTRLLONG	SK6812-MINI-E	D93
1	LEFTARROW	SK6812-MINI-E	D94
1	DOWNARROW	SK6812-MINI-E	D95
1	RIGHTARROW	SK6812-MINI-E	D96
1	END	SK6812-MINI-E	D97
1	UPARROW	SK6812-MINI-E	D98
1	RSHIFT	SK6812-MINI-E	D99
1	SLASH	SK6812-MINI-E	D100
1	PERIOD	SK6812-MINI-E	D101
1	COMMA	SK6812-MINI-E	D102
1	M	SK6812-MINI-E	D103
1	N	SK6812-MINI-E	D104
1	B	SK6812-MINI-E	D105
1	V	SK6812-MINI-E	D106
1	C	SK6812-MINI-E	D107
1	X	SK6812-MINI-E	D108
1	Z	SK6812-MINI-E	D109
1	BACKSLASHISO	SK6812-MINI-E	D110
1	LSHIFTAINSI	SK6812-MINI-E	D111
1	LSHIFTISO	SK6812-MINI-E	D112
1	CAPSLOCK	SK6812-MINI-E	D113
1	A	SK6812-MINI-E	D114
1	S	SK6812-MINI-E	D115
1	D	SK6812-MINI-E	D116
1	F	SK6812-MINI-E	D117
1	G	SK6812-MINI-E	D118
1	H	SK6812-MINI-E	D119
1	J	SK6812-MINI-E	D120
1	K	SK6812-MINI-E	D121
1	L	SK6812-MINI-E	D122
1	SEMICOLON	SK6812-MINI-E	D123
1	SINGLEQUOTE	SK6812-MINI-E	D124
1	HASH	SK6812-MINI-E	D125
1	ENTERAINSI	SK6812-MINI-E	D126
1	PGDN	SK6812-MINI-E	D127
1	PGUP	SK6812-MINI-E	D128
1	ENTERISO	SK6812-MINI-E	D129
1	BACKSLASHAINSI	SK6812-MINI-E	D130
1	RIGHTBRACKET	SK6812-MINI-E	D131
1	LEFTBRACKET	SK6812-MINI-E	D132
1	P	SK6812-MINI-E	D133
1	O	SK6812-MINI-E	D134
1	I	SK6812-MINI-E	D135
1	U	SK6812-MINI-E	D136
1	Y	SK6812-MINI-E	D137
1	T	SK6812-MINI-E	D138
1	R	SK6812-MINI-E	D139
1	E	SK6812-MINI-E	D140
1	W	SK6812-MINI-E	D141
1	Q	SK6812-MINI-E	D142
1	TAB	SK6812-MINI-E	D143
1	BACKQUOTE	SK6812-MINI-E	D144
1	1	SK6812-MINI-E	D145
1	2	SK6812-MINI-E	D146
1	3	SK6812-MINI-E	D147
1	4	SK6812-MINI-E	D148
1	5	SK6812-MINI-E	D149
1	6	SK6812-MINI-E	D150
1	7	SK6812-MINI-E	D151
1	8	SK6812-MINI-E	D152
1	9	SK6812-MINI-E	D153
1	0	SK6812-MINI-E	D154
1	MINUS	SK6812-MINI-E	D155
1	EQUAL	SK6812-MINI-E	D156
1	BACKSPACE	SK6812-MINI-E	D157
1	HOME	SK6812-MINI-E	D158
1	DEL	SK6812-MINI-E	D159
1	PAUSE	SK6812-MINI-E	D160
1	PRTSC	SK6812-MINI-E	D161
1	F12	SK6812-MINI-E	D162
1	F11	SK6812-MINI-E	D163
1	F10	SK6812-MINI-E	D164
1	F9	SK6812-MINI-E	D165
1	F8	SK6812-MINI-E	D166
1	F7	SK6812-MINI-E	D167
1	F6	SK6812-MINI-E	D168
1	F5	SK6812-MINI-E	D169
1	F4	SK6812-MINI-E	D170
1	F3	SK6812-MINI-E	D171
1	F2	SK6812-MINI-E	D172
1	F1	SK6812-MINI-E	D173
1	ESC	SK6812-MINI-E	D174
1	BKL0	LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm	D175
1	BKL1	LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm	D176
1	BKL2	LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm	D177
1	BKL3	LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm	D178
1	BKL4	LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm	D179
1	BKL5	LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm	D180
1	BKL6	LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm	D181
1	BKL7	LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm	D182
1	BKL8	LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm	D183
1	BKL9	LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm	D184
1	BKL10	LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm	D185
1	BKL11	LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm	D186
1	BKL12	LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm	D187
1	BKL13	LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm	D188
1	BKL14	LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm	D189
1	BKL15	LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm	D190
1	MPZ1608B471ATA00	0603L	L1
26	100nF	0603C	C1, C2, C5, C6, C7, C8, C9, C10 +18
7	4.7uF	0805C	C3, C29, C30, C31, C32, C33, C34
1	22uF	0805C	C4
2	5.1K	0603R	R1, R2
2	100K	0603R	R3, R4
2	22	0603R	R5, R6
1	1.5K	0603R	R7
1	10K	0603R	R8
1	1.4K	0603R	R9
