LED-PCB-Documentation is an open source PCB design by nizarbadriali, published on GitHub under the MIT license. It is a 2-layer board measuring 100 × 60 mm, with 3 components from 3 distinct parts.
By type, the board carries 1 connector, 1 diode and 1 resistor.
From the project
A simple intro level printed circuit board, fully documented to nurture my deep understanding of circuits.
Status: Schematic and PCB designed; LTspice simulation completed; uploaded ERC, DRC, and schematic-parity results show zero reported violations under the configured checks. Manufacturing files exported. Physical assembly and testing pending.

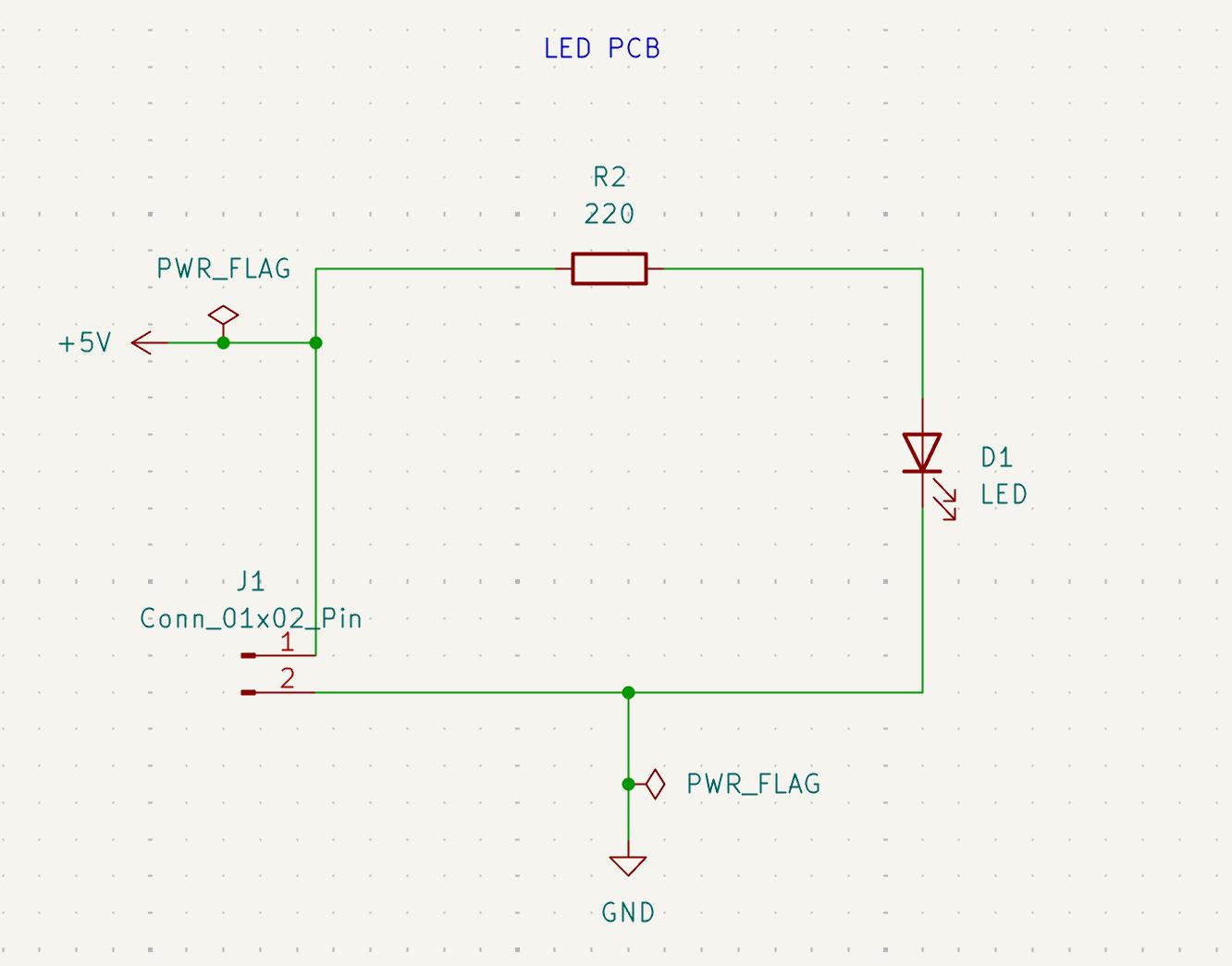

A simple 5V → 220 Ω resistor → red LED → ground circuit, developed to practice circuit calculations, SPICE model fitting, PCB layout, and fabrication-file verification. The diode model is fitted to supplied I–V data whose provenance is not yet documented. Simulation results are predictions, not physical measurements.
LED-PCB-Documentation bill of materials (BOM)
3 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_01x02_Pin | PinHeader_1x02_P2.54mm_Vertical | J1 |
| 1 | LED | LED_D5.0mm | D1 |
| 1 | 220 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2 |
LED-PCB-Documentation design files
The KiCad project lives in the nizarbadriali/LED-PCB-Documentation repository on GitHub; these links point at the commit this page was built from.
- Layoutkicad/Simple LED.kicad_pcb
- Schematickicad/Simple LED.kicad_sch
LED-PCB-Documentation: common questions
How big is the LED-PCB-Documentation?
The LED-PCB-Documentation measures 100 × 60 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the LED-PCB-Documentation?
3 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the LED-PCB-Documentation design files?
From the nizarbadriali/LED-PCB-Documentation repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the LED-PCB-Documentation design in my own project?
Yes, under the terms of its MIT license, which nizarbadriali chose for the repository.
