AC-to-DC-converter-
About the AC-to-DC-converter- PCB
AC-to-DC-converter- is an open source PCB design by Noraiz963, published on GitHub. It is a 2-layer board measuring 37 × 29.5 mm, with 10 components from 6 distinct parts.
By type, the board carries 5 diodes, 2 connectors, 2 resistors and 1 capacitor.
From the project
A basic AC to DC converter circuit designed in KiCad — full-wave bridge rectifier with capacitor filtering. First PCB design project.

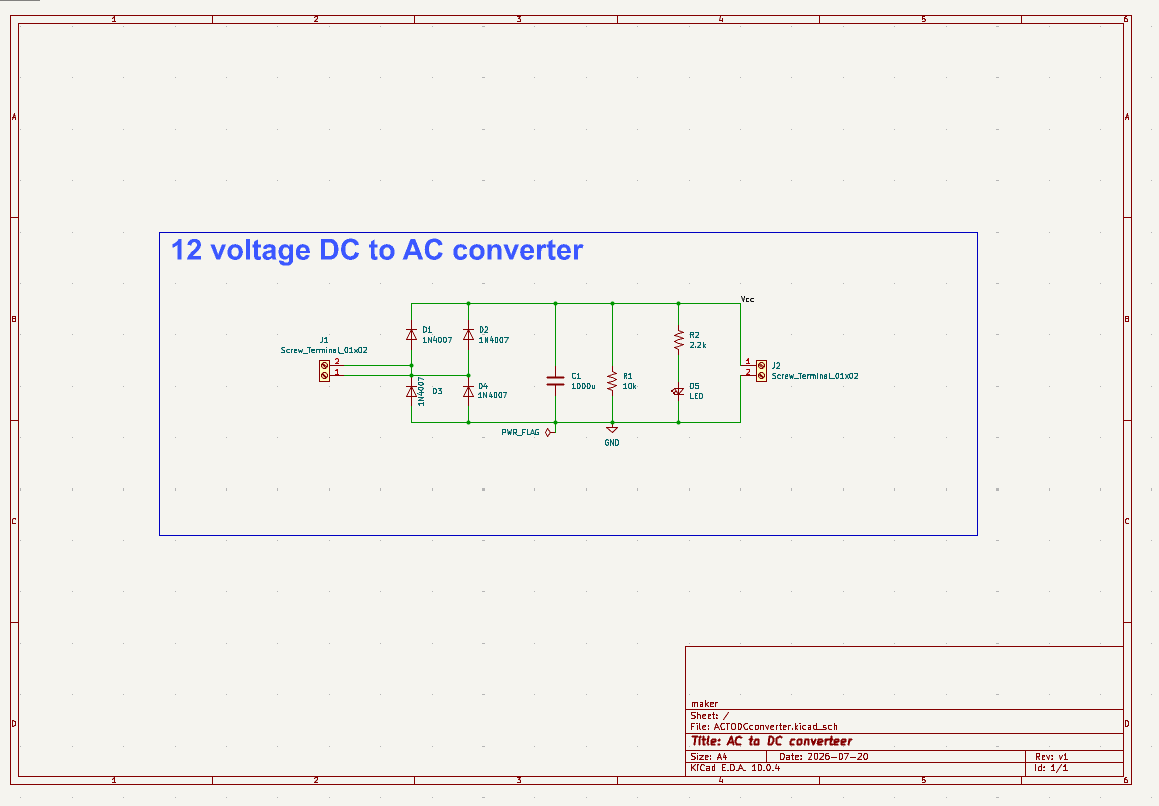

A basic AC to DC converter designed in KiCad — my first completed PCB design project. The circuit takes an AC input and converts it into a smoothed, low-voltage DC output using a full-wave bridge rectifier and filter capacitor.
- Bridge rectifier: 4x 1N4007 diodes (D1–D4) arranged in a full-wave rectifier configuration, converting AC input into pulsating DC - Smoothing: 1000µF filter capacitor (C1) to smooth the rectified output into a steady DC level - Bleeder resistor: 10kΩ (R1) to discharge the capacitor safely when the board is disconnected - Power indicator: LED (D5) with a 2.2kΩ…
AC-to-DC-converter- bill of materials (BOM)
10 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | Screw_Terminal_01x02 | TerminalBlock_MaiXu_MX126-5.0-02P_1x02_P5.00mm | J1, J2 |
| 4 | 1N4007 | D_DO-41_SOD81_P10.16mm_Horizontal | D1, D2, D3, D4 |
| 1 | LED | LED_0603_1608Metric | D5 |
| 1 | 1000u | CP_Radial_D8.0mm_P3.50mm | C1 |
| 1 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
| 1 | 2.2k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2 |
AC-to-DC-converter- design files
The KiCad project lives in the Noraiz963/AC-to-DC-converter- repository on GitHub; these links point at the commit this page was built from.
AC-to-DC-converter-: common questions
How big is the AC-to-DC-converter- PCB?
The AC-to-DC-converter- measures 37 × 29.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the AC-to-DC-converter-?
10 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the AC-to-DC-converter- design files?
From the Noraiz963/AC-to-DC-converter- repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the AC-to-DC-converter- design in my own project?
The repository has no license, so all rights stay with Noraiz963. Use it as a reference, and ask the author before reusing the design.
