Hsp pcb intro
About the Hsp pcb intro
Hsp pcb intro is an open source PCB design by nushackers, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 22.2 × 11.4 mm, with 6 components from 5 distinct parts.
By type, the board carries 3 resistors, 1 connector, 1 switch and 1 diode.
From the project

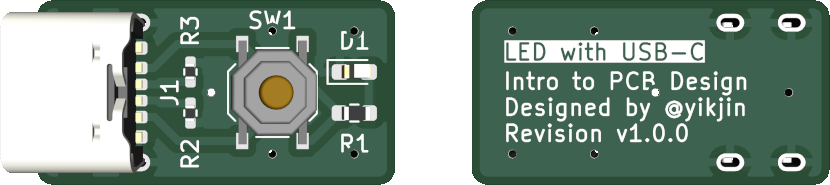

Simple USB LED PCB hardware source files using KiCad for Hackerspace "Intro to PCB Design" workshop
This repository contains a basic USB-C LED PCB project using KiCad 9. KiCad is a free/libre and open-source project (FLOSS), and you can download this electronic design automation (EDA) software from their website.
We assume that this PCB board will be manufactured by JLCPCB, so component sourcing is done through their parts catalogue, and the PCB manufacturing capabilities are conformant to theirs. We will also use Bouni's KiCAD JLCPCB tools plugin to generate the final gerber files to send to JLCPCB for fabrication.
Hsp pcb intro bill of materials (BOM)
6 components, 5 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C18357552 HX TYPE-C 6PIN | USB_C_Receptacle_GCT_USB4125-xx-x_6P_TopMnt_Horizontal | J1 |
| 1 | C318884 BTN_ON | SW_Push_1P1T_XKB_TS-1187A | SW1 |
| 1 | C2286 LED_RED | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D1 |
| 1 | 150R | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1 |
| 2 | 5K1 5k1 | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R2, R3 |
Hsp pcb intro design files
The KiCad project lives in the nushackers/hsp-pcb-intro repository on GitHub; these links point at the commit this page was built from.
Hsp pcb intro: common questions
How big is the Hsp pcb intro?
The Hsp pcb intro measures 22.2 × 11.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Hsp pcb intro?
6 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Hsp pcb intro design files?
From the nushackers/hsp-pcb-intro repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Hsp pcb intro design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which nushackers chose for the repository.
