Panelize
About the Panelize PCB
Panelize is an open source PCB design by ogatatsu, published on GitHub. It is a 2-layer board measuring 99.3 × 99.3 mm, with 12 components from 3 distinct parts.
By type, the board carries 10 connectors, 1 switch and 1 diode.
From the project

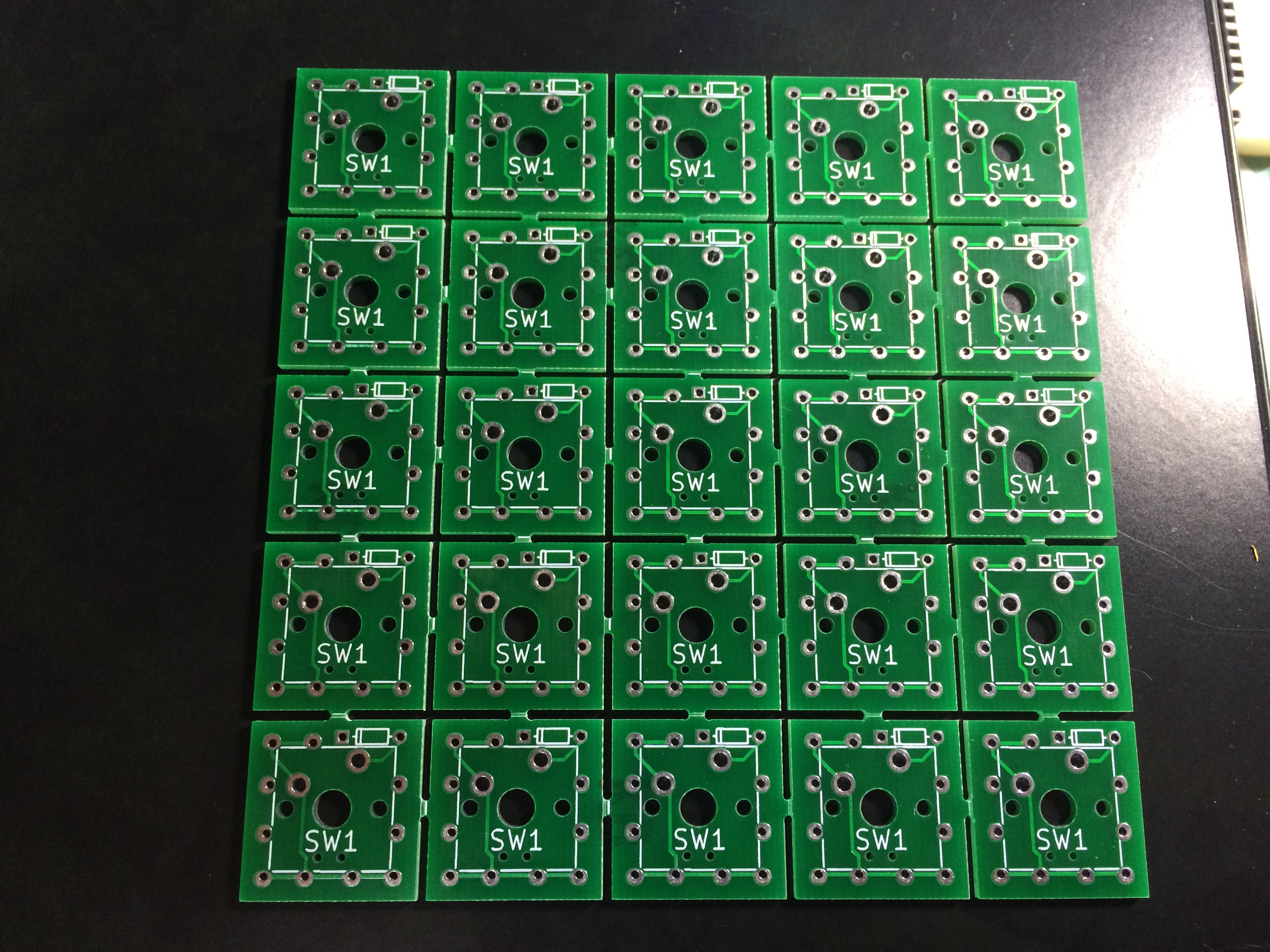

panelizeフォルダにガーバーデータもアップしてあるので作りたい人はどうぞご自由に。 10cm x 10cm のサイズで25個入るように設計してあります。
panelizeフォルダにガーバーデータもアップしてあるので作りたい人はどうぞご自由に。 10cm x 10cm のサイズで25個入るように設計してあります。
https://creativecommons.org/licenses/by/4.0/
Panelize bill of materials (BOM)
12 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 10 | CONN_01X01 | wirepad | P11, P12, P13, P14, P15, P16, P21, P22 +2 |
| 1 | SW_PUSH | switch | SW1 |
| 1 | D | diode | D1 |
Panelize design files
The KiCad project lives in the ogatatsu/Cherry-Mx-Bitboard repository on GitHub; these links point at the commit this page was built from.
Panelize: common questions
How big is the Panelize PCB?
The Panelize measures 99.3 × 99.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Panelize?
12 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the Panelize design files?
From the ogatatsu/Cherry-Mx-Bitboard repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Panelize design in my own project?
The repository has no license, so all rights stay with ogatatsu. Use it as a reference, and ask the author before reusing the design.
