About the 20250110-679disV01 PCB
20250110-679disV01 is an open source PCB design by OpticsFoundry, published on GitHub under the MIT license. It is a 2-layer board measuring 230 × 230 mm, with 17 components from 10 distinct parts.
By type, the board carries 7 modules, 4 capacitors and 1 diode.
From the project
Library for designing optical setups in KiCad. These designs can be imported into the optical circuit board manufacturing system of OpticsFoudnry.
This repository includes a library for designing optical setups in KiCad.
Please visit our website for more product and ordering. If you have any question or need help, write to us: opticsfoundry@gmail.com

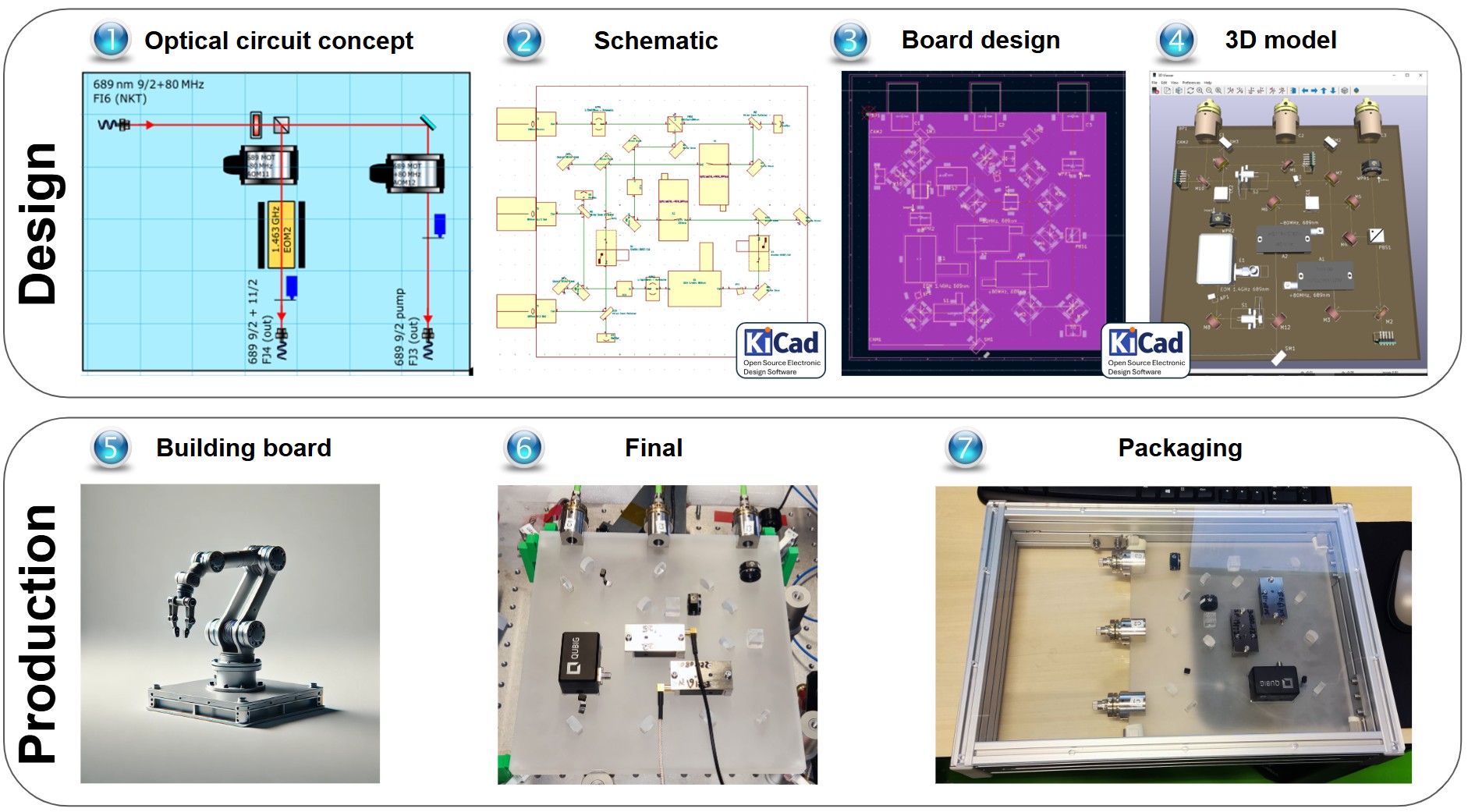

KiCad is an open source electronic design software. However, we have developed this library to be able to design optical setup. The procedure of producing an optical setup with Robot developed by OpticsFoundry is shown below.
20250110-679disV01 bill of materials (BOM)
17 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 6 | Mirror 6mm | Mirror6mm | M1, M3, M4, M5, M6, M7 |
| 1 | Mirror 3mm Polished | Mirror3mmRight | M2 |
| 1 | 230mm | Baseplate230mm | BP1 |
| 1 | NPBS-70:30-Flipped | PBS_Flipped | NPBSF3 |
| 1 | PBSCasix689nm | PBS | PBS1 |
| 2 | L/2@689nm - Rotatable | WaveplateRotateable | WPR1, WPR2 |
| 1 | Monitor | Detector | D1 |
| 1 | 689nm 9/2 Out, 60SMS-1-4-A4.5S-02 | S&KCollimator_V1 | C1 |
| 2 | 689nm 11/2 Out, 60SMS-1-4-A4.5S-02 | S&KCollimator_V1 | C2, C4 |
| 1 | 689nm Source, 60SMS-1-4-M5-10 | S&KCollimator_V1 | C3 |
