8-to-4-scart switch
About the 8-to-4-scart switch PCB
8-to-4-scart switch is an open source PCB design by Osmagtor, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 273.5 × 144.5 mm, with 114 components from 8 distinct parts.
By type, the board carries 72 jumpers, 16 diodes, 13 relays and 12 connectors.
From the project

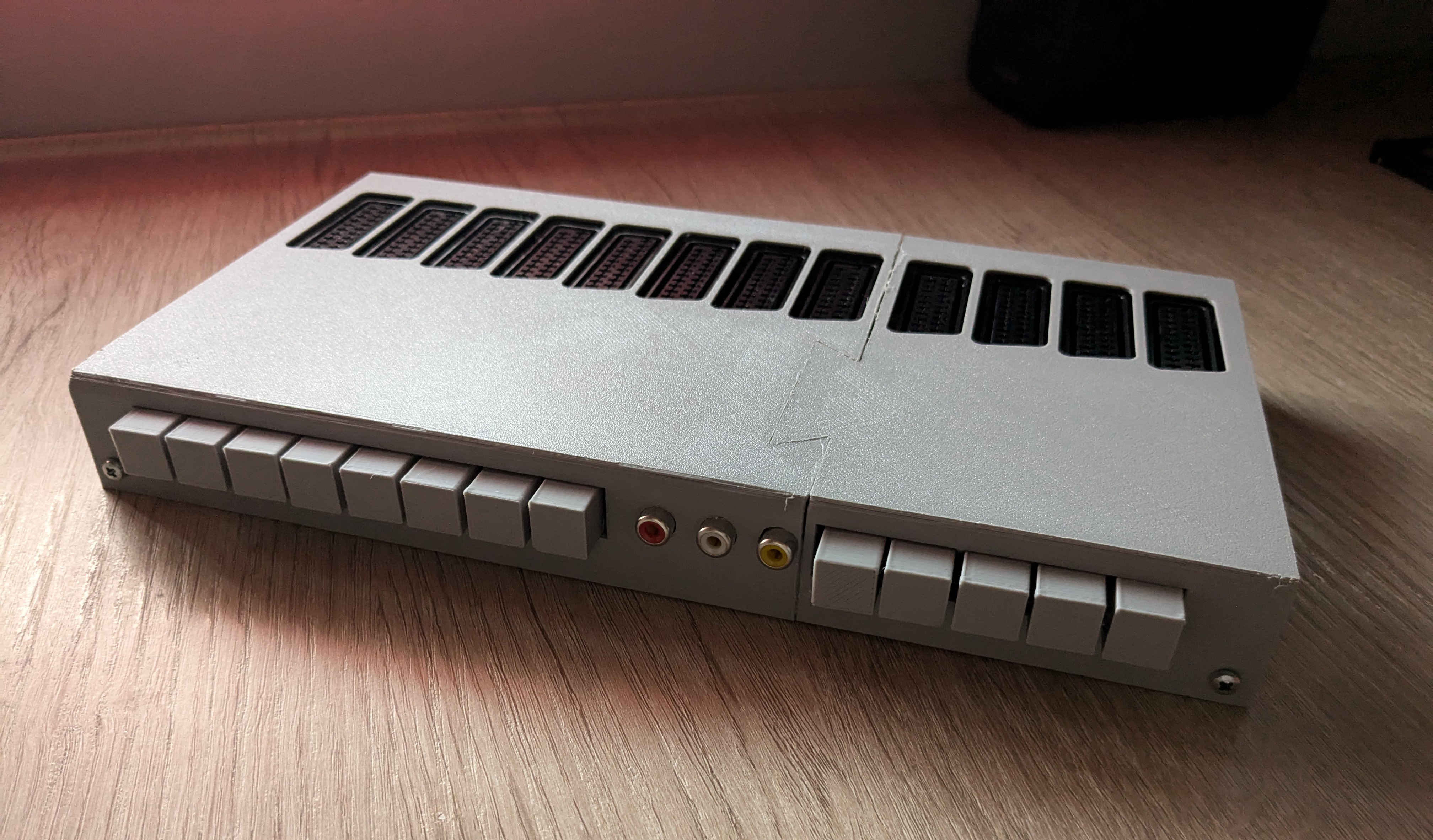

An open source PCB design for a passive SCART switch with 8 inputs, 4 outputs, RGB selection and RCA input ports
The "8-to-4 SCART Switch" is an open source PCB design for a passive SCART switch capable of (1) redirecting the signal of the selected SCART input device to the selected SCART output device and (2) selecting how the incoming signal is to be sent out (composite/RGB with composite sync or "csync"). It can accommodate for an RCA port to introduce a stereo audio signal or a lightgun signal into the selected output SCART cable.
8-to-4-scart switch bill of materials (BOM)
114 components, 8 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 12 | SCART-F | SCART | J1, J2, J3, J4, J5, J6, J7, J8 +4 |
| 66 | Jumper_2_Open | Jumper-Wire_12mm_Red | JP1, JP2, JP3, JP4, JP5, JP6, JP7, JP8 +58 |
| 6 | Jumper_2_Open | Jumper-Wire_20mm_Blue | JP43, JP44, JP45, JP46, JP47, JP48 |
| 8 | Relay_DPDT | 18-PIN RELAY | K1, K2, K3, K7, K8, K9, K10, K11 |
| 4 | Relay_DPDT | 24-PIN RELAY | K4, K5, K12, K13 |
| 1 | Relay_DPDT | Relay_DPDT_RGB_ONOFF | K6 |
| 1 | ~ | Triple_RCA | TripleRCA1 |
| 16 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2, D3, D4, D5, D6, D7, D8 +8 |
8-to-4-scart switch design files
The KiCad project lives in the Osmagtor/8-to-4-scart-switch repository on GitHub; these links point at the commit this page was built from.
- LayoutKiCAD/PCB.kicad_pcb
- SchematicKiCAD/PCB.kicad_sch
8-to-4-scart switch: common questions
How big is the 8-to-4-scart switch PCB?
The 8-to-4-scart switch measures 273.5 × 144.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 8-to-4-scart switch?
114 components, from 8 distinct parts. The full bill of materials is listed on this page.
Where can I download the 8-to-4-scart switch design files?
From the Osmagtor/8-to-4-scart-switch repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the 8-to-4-scart switch design in my own project?
Yes, under the terms of its GPL-3.0 license, which Osmagtor chose for the repository.
