Samtec dbg
About the Samtec dbg PCB

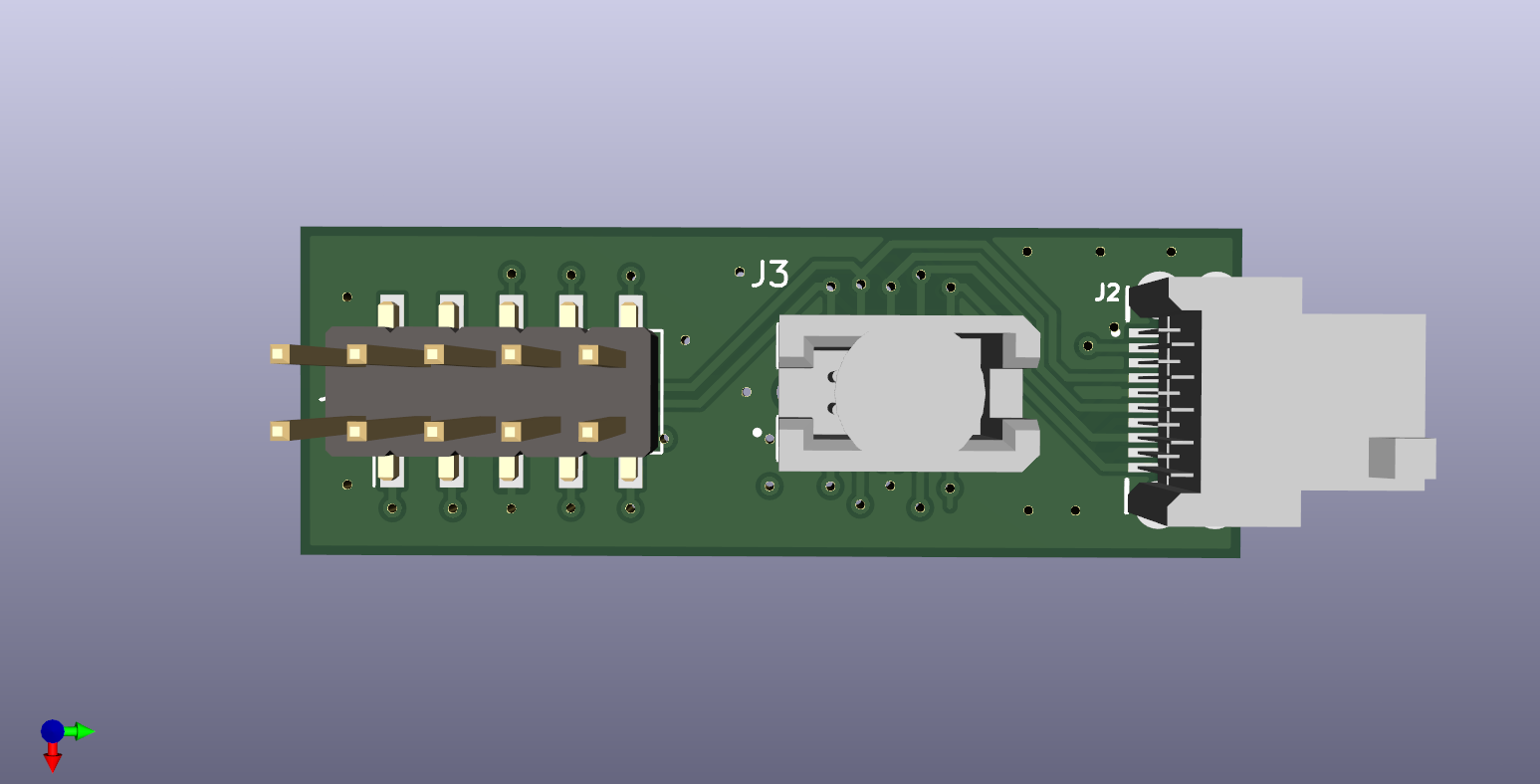

Samtec dbg is an open source PCB design by oxidecomputer, published on GitHub under the MPL-2.0 license. It is a 4-layer board measuring 14 × 40 mm, with 3 components from 3 distinct parts.
From the project
Allows for conversion between SFM-105-02-X-DH-XX, TFC-105-02-F-D-A-K, and a 2x5 0.1" header.
Samtec dbg bill of materials (BOM)
3 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_02x05_Odd_Even | PinHeader_2x05_P2.54mm_Vertical_SMD | J1 |
| 1 | SFM-105-02-X-DH-XX | SAMTEC_SFM-105-02-X-DH-XX | J2 |
| 1 | TFC-105-02-F-D-A-K | SAMTEC_TFC-105-02-F-D-A-K | J3 |
Samtec dbg design files
The KiCad project lives in the oxidecomputer/hw-samtec-dbg repository on GitHub; these links point at the commit this page was built from.
- Layoutsamtec_dbg.kicad_pcb
- Schematicsamtec_dbg.kicad_sch
Samtec dbg: common questions
How big is the Samtec dbg PCB?
The Samtec dbg measures 14 × 40 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Samtec dbg?
3 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the Samtec dbg design files?
From the oxidecomputer/hw-samtec-dbg repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Samtec dbg design in my own project?
Yes, under the terms of its MPL-2.0 license, which oxidecomputer chose for the repository.
