Atari-ST-Floppy-Adapter
About the Atari-ST-Floppy-Adapter PCB
Atari-ST-Floppy-Adapter is an open source PCB design by pdaehne, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 54.5 × 36.6 mm, with 4 components from 4 distinct parts.
From the project

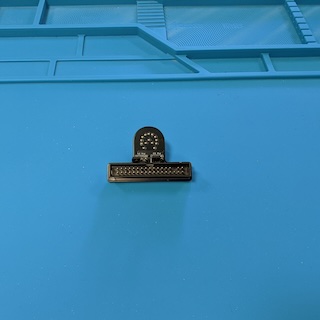

KiCad project and Gerber files for an adapter that converts the Atari ST external 14 pin floppy connector to a standard 34 pin IDC box header.
This repository contains the KiCad project and Gerber files for an adapter that converts the Atari ST external 14 pin floppy connector to a standard 34 pin IDC box header. The 14 pin floppy connectors are out of production for a long time and are extremely hard to get hold of and expensive nowadays. This adapter is a cheap workaround.
This floppy adapter is designed to be used in combination with my DSUB-19 Adapter for the Atari DMA/Harddisk port, they fit nicely next to each other. I also tried not to block other connectors, but I only have an Atari 1040 STF to check that, so your mileage…
Atari-ST-Floppy-Adapter bill of materials (BOM)
4 components, 4 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Floppy Connector | IDC-Header_2x17_P2.54mm_Vertical | J1 |
| 1 | ~ | Floppy Connector | J2 |
| 1 | Pin 10 | PinHeader_1x03_P2.54mm_Vertical | J3 |
| 1 | Pin 14 | PinHeader_1x03_P2.54mm_Vertical | J4 |
Atari-ST-Floppy-Adapter design files
The KiCad project lives in the pdaehne/Atari-ST-Floppy-Adapter repository on GitHub; these links point at the commit this page was built from.
Atari-ST-Floppy-Adapter: common questions
How big is the Atari-ST-Floppy-Adapter PCB?
The Atari-ST-Floppy-Adapter measures 54.5 × 36.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Atari-ST-Floppy-Adapter?
4 components, from 4 distinct parts. The full bill of materials is listed on this page.
Where can I download the Atari-ST-Floppy-Adapter design files?
From the pdaehne/Atari-ST-Floppy-Adapter repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Atari-ST-Floppy-Adapter design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
