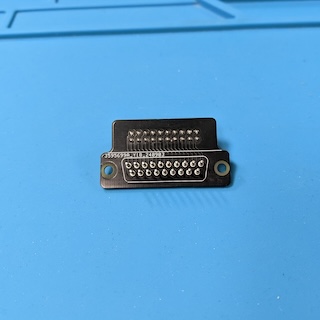

DSUB19-Adapter
About the DSUB19-Adapter PCB
DSUB19-Adapter is an open source PCB design by pdaehne, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 44.7 × 24 mm, with 2 components from 2 distinct parts.
From the project
KiCad Project and Gerbers for an Adapter that converts a D-SUB 19 socket to a 20 pin IDC box header
This repository contains the KiCad project and Gerber files for an adapter that converts a D-SUB 19 socket to a 20 pin IDC box header. D-SUB 19 sockets where used on the Atari ST (DMA/Harddisk connector). They are out of production for a long time and are extremely hard to get hold of and expensive nowadays. This adapter is a cheap workaround. It connects the 19 pins 1:1 to the pins of the IDC box header, with pin 20 unused. It should be compatible with the so-called UltraSatan Cables.
DSUB19-Adapter bill of materials (BOM)
2 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | DB19_Plug | DB19 | J1 |
| 1 | Conn_02x10_Top_Bottom | IDC-Header_2x10_P2.54mm_Vertical | J2 |
DSUB19-Adapter design files
The KiCad project lives in the pdaehne/DSUB19-Adapter repository on GitHub; these links point at the commit this page was built from.
- LayoutDSUB19-Adapter.kicad_pcb
- SchematicDSUB19-Adapter.kicad_sch
DSUB19-Adapter: common questions
How big is the DSUB19-Adapter PCB?
The DSUB19-Adapter measures 44.7 × 24 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the DSUB19-Adapter?
2 components, from 2 distinct parts. The full bill of materials is listed on this page.
Where can I download the DSUB19-Adapter design files?
From the pdaehne/DSUB19-Adapter repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the DSUB19-Adapter design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
