Sous vide
About the Sous vide PCB
Sous vide is an open source PCB design by PeterMitrano, published on GitHub. It is a 2-layer board measuring 100 × 70 mm, with 29 components from 21 distinct parts.
Other key parts include the G5LE, RAC01, NODE_MCU1.0, P090S and LCD_Backpack. By type, the board carries 7 resistors, 6 diodes, 5 ICs, 5 connectors, 2 switches and 2 capacitors.
From the project

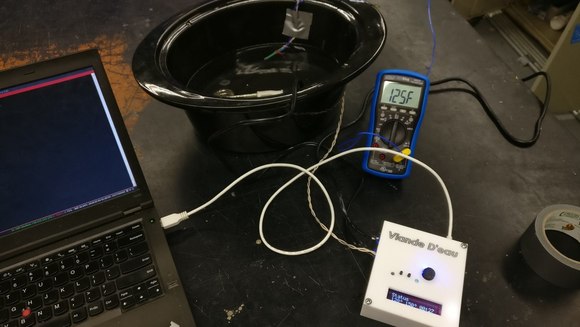

making a thing that makes food
Mains power is scary. I used this to calculate trace width/clearance: http://www.desmith.net/NMdS/Electronics/TraceWidth.html
- Hole size of screw terminals are too small. Should be 1.8542mm - Screw terminals are a bad idea, use IEC connector - Higher power heater - Buzzer/Dinger! - One wire for thermistor/heater - Something to stir the water around - Label on V+ and V- on heater are backwards (J1) - Button footprint is wrong
Main components on the Sous vide
Sous vide bill of materials (BOM)
29 components, 21 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | G5LE | Relay_SPDT_OMRON-G5LE-1 | U1 |
| 1 | RAC01 | RAC01-05SC | U2 |
| 1 | NODE_MCU1.0 node_mcu1.0 | NodeMCU_1_0 | U3 |
| 1 | P090S | P090S-THT_MNT | U4 |
| 1 | LCD_Backpack | Pin_Header_Straight_1x05_Pitch2.54mm | U5 |
| 1 | 2N3904 | TO-92_Molded_Narrow | Q1 |
| 1 | Heater | NC6-P108-02 | J1 |
| 1 | Power | NC6-P108-02 | J2 |
| 1 | CONN_01X02 Conn_01x02 | Pin_Header_Straight_1x02_Pitch2.54mm | J3 |
| 2 | Jumper | Pin_Header_Straight_1x02_Pitch2.54mm | J4, J5 |
| 1 | Fuse | Fuse_Holder_65600001009 | F1 |
| 2 | SW400 SW_Push_Dual | SW_TH_Tactile_Omron_B3F-10xx | SW1, SW2 |
| 3 | 1N4148FS D | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2, D4 |
| 3 | 67-1105 LED | LED_D5.0mm | D3, D5, D6 |
| 1 | 200NF 200nF | C_Disc_D4.3mm_W1.9mm_P5.00mm | C1 |
| 1 | 330UF 330uF | CP_Radial_D8.0mm_P3.50mm | C2 |
| 1 | 110 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1 |
| 2 | 11K 11k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R2, R6 |
| 1 | 430 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R3 |
| 2 | 43 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R4, R5 |
Show 1 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 1.1K 1.1k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R7 |
