About the MenuPanel PCB
MenuPanel is an open source PCB design by phazil, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 78.2 × 16 mm, with 13 components from 3 distinct parts.
By type, the board carries 6 switches, 6 resistors and 1 connector.
From the project

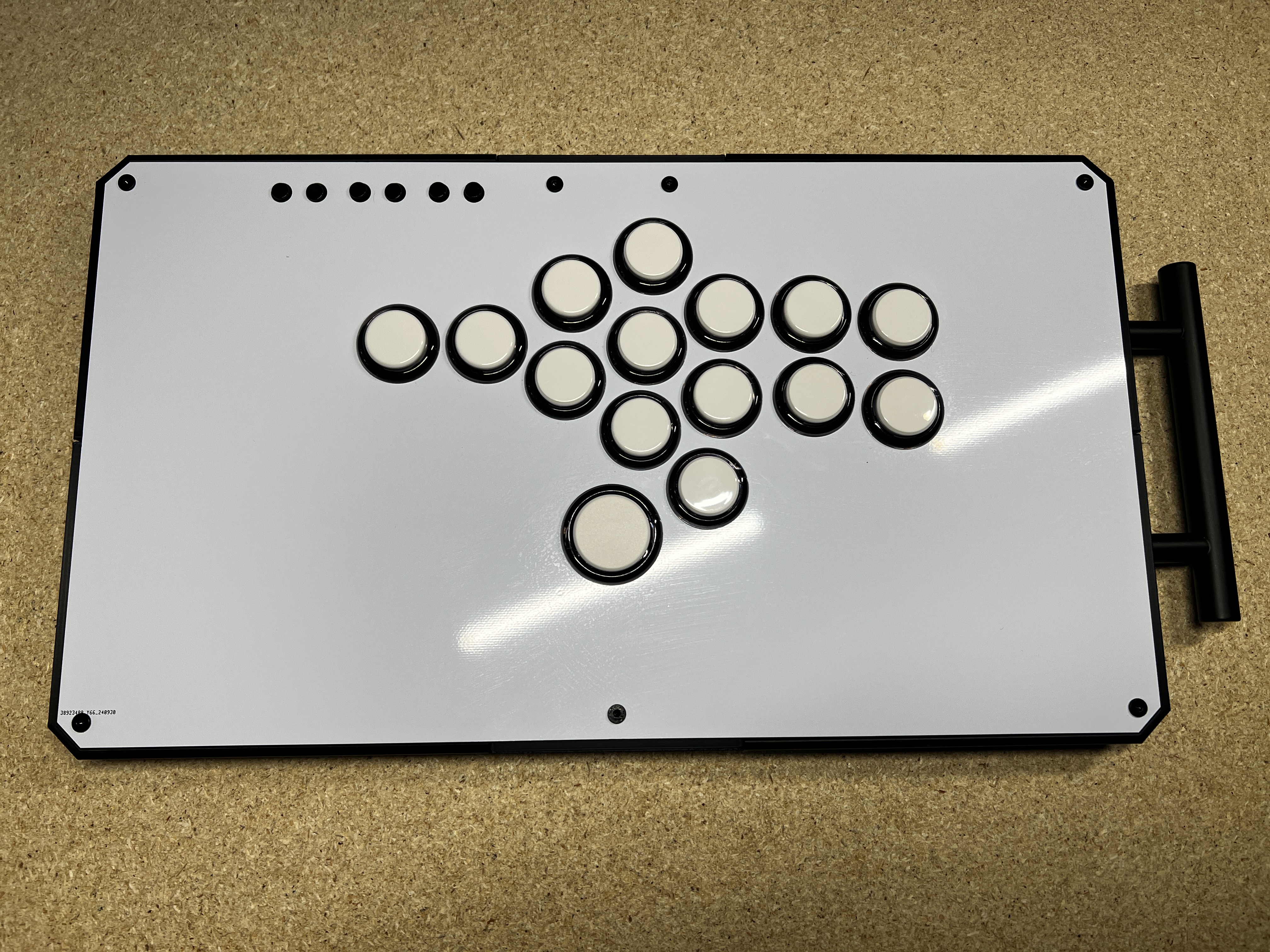

A redux of @TheTrain24's Project Purple in my own flavor.
A recreation of @TheTrain24's Purple Project seen here: Reference Posts
This started out as a post graduation project (someone in biology hire me pls) to explore deeper into the hobbies I was already interested in. Did all of the CAD/KiCAD work myself, and also because I missed out on the originals Train posted. Lots was learned here, and documenting it all isn't as fun as making it but I guess it's necessary lol.
MenuPanel bill of materials (BOM)
13 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_01x07_Socket | PinSocket_1x07_P2.54mm_Vertical | J1 |
| 6 | SW_Push | SW_PUSH_6mm_H4.3mm | SW1, SW2, SW3, SW4, SW5, SW6 |
| 6 | 0 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R2, R3, R4, R5, R6 |
MenuPanel design files
The KiCad project lives in the phazil/Purple-Project-Redux repository on GitHub; these links point at the commit this page was built from.
MenuPanel: common questions
How big is the MenuPanel PCB?
The MenuPanel measures 78.2 × 16 mm, has 2 copper layers and is 2.53 mm thick.
How many components are on the MenuPanel?
13 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the MenuPanel design files?
From the phazil/Purple-Project-Redux repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the MenuPanel design in my own project?
Yes, under the terms of its GPL-3.0 license, which phazil chose for the repository.
