Pineapple v3 base
About the Pineapple v3 base PCB

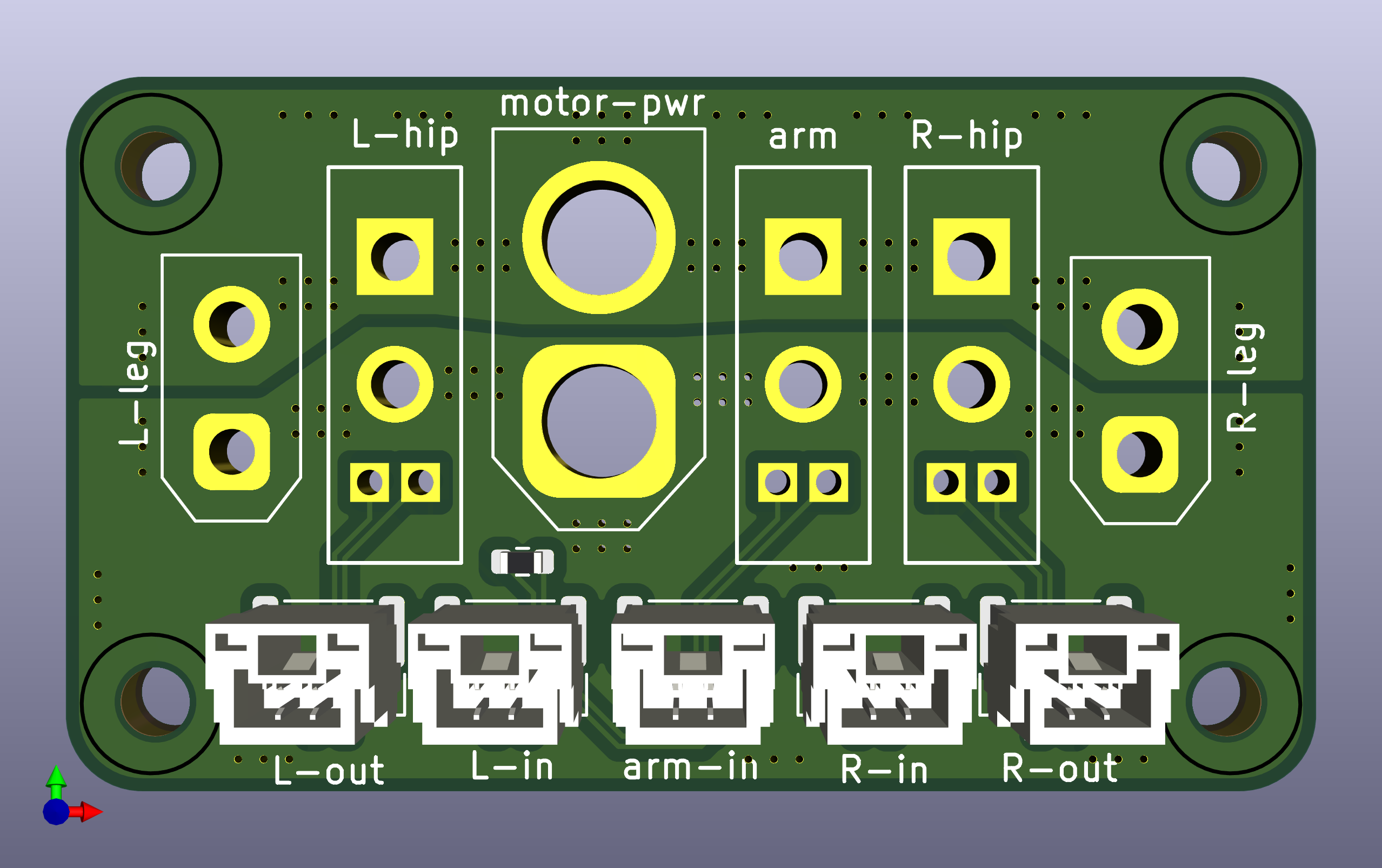

Pineapple v3 base is an open source PCB design by pineapple-biped, published on GitHub. It is a 2-layer board measuring 49 × 28 mm, with 12 components from 5 distinct parts.
By type, the board carries 11 connectors and 1 resistor.
From the project
Basic (simplified) version of the Pineapple V3 robot PCBs. The leg IMU is simplified, so this build drops the separate calf board and uses fewer signal headers than the full version. Four boards total: base, baseA, thigh, and arm. Each board has its own folder containing the .kic
Basic (simplified) version of the Pineapple V3 robot PCBs. The leg IMU is simplified, so this build drops the separate calf board and uses fewer signal headers than the full version. Four boards total: base, baseA, thigh, and arm. Each board has its own folder containing the .kicadpcb, .kicadsch`, and project files.
Exported Gerber files (ready for fabrication) are in the Gerbers/ folder — one gbr.zip per board.
Pineapple v3 base bill of materials (BOM)
12 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_01x02 | AMASS_XT60-M_1x02_P7.20mm_Vertical | J1 |
| 2 | Conn_01x02 | AMASS_XT30UPB-F_1x02_P5.0mm_Vertical | J2, J3 |
| 3 | Conn_02x02_Counter_Clockwise | XT30_22_M_vertical | J4, J22, J23 |
| 5 | Conn_01x02 | JST_GH_BM02B-GHS-TBT_1x02-1MP_P1.25mm_Vertical | J5, J6, J7, J12, J24 |
| 1 | 120 | R_0603_1608Metric | R1 |
Pineapple v3 base design files
The KiCad project lives in the pineapple-biped/pineapple_v3_pcb_basic repository on GitHub; these links point at the commit this page was built from.
Pineapple v3 base: common questions
How big is the Pineapple v3 base PCB?
The Pineapple v3 base measures 49 × 28 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Pineapple v3 base?
12 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the Pineapple v3 base design files?
From the pineapple-biped/pineapple_v3_pcb_basic repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Pineapple v3 base design in my own project?
The repository has no license, so all rights stay with pineapple-biped. Use it as a reference, and ask the author before reusing the design.
