Dekatronpc
About the Dekatronpc PCB
Dekatronpc is an open source PCB design by radiolok, published on GitHub. It is a 2-layer board measuring 209.7 × 188.7 mm, with 81 components from 15 distinct parts.
By type, the board carries 48 resistors, 16 capacitors and 1 connector.
From the project
DekatronPC - vacuum tube and cold-cathode tube based computer
A vacuum tube and cold-cathode tube based computer
Сan do +1 and -1 operations by desing, so they are best devices for brainfuck instruction set.

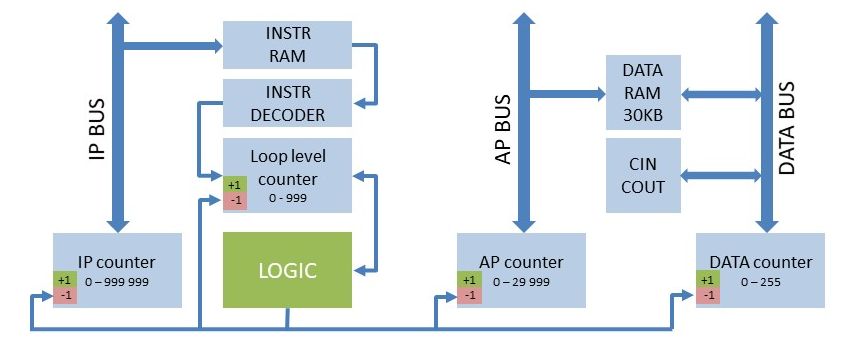

As a next generation of BrainfuckPC, DekatronPC should have next characteristics:
8 instructions - pure brainfuck only without RLE; 1M Instruction Pointer counter; 30K Address Pointer Counter; 256 data counter; Harvard architecture; Up to 50kHz clock; RAM size - 30 000 bytes; RAM device - ferrite core memory;
Dekatronpc bill of materials (BOM)
81 components, 15 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_01x31 | ГРПМШ1-31 | J1 |
| 8 | ИНС-1 | ИНС-1 | NE1, NE2, NE3, NE4, NE5, NE6, NE7, NE8 |
| 8 | 6Н16Б | 6N16B | Л11, Л12, Л13, Л14, Л21, Л22, Л23, Л24 |
| 4 | 5pF | C_Axial_L12.0mm_D7.5mm_P15.00mm_Horizontal | C1, C5, C9, C13 |
| 4 | 500pF | C_Axial_L22.0mm_D9.5mm_P27.50mm_Horizontal | C2, C6, C10, C14 |
| 4 | 0.01uF 400V | C_Axial_L12.0mm_D9.5mm_P15.00mm_Horizontal | C3, C7, C11, C15 |
| 4 | 10pF | C_Axial_L12.0mm_D7.5mm_P15.00mm_Horizontal | C4, C8, C12, C16 |
| 12 | 470k | R_Axial_DIN0617_L17.0mm_D6.0mm_P20.32mm_Horizontal | R1, R2, R6, R13, R14, R18, R25, R26 +4 |
| 8 | 1M | R_Axial_DIN0617_L17.0mm_D6.0mm_P20.32mm_Horizontal | R3, R9, R15, R21, R27, R33, R39, R45 |
| 4 | 2.4M | R_Axial_DIN0617_L17.0mm_D6.0mm_P20.32mm_Horizontal | R4, R16, R28, R40 |
| 8 | 10k | R_Axial_DIN0617_L17.0mm_D6.0mm_P20.32mm_Horizontal | R5, R7, R17, R19, R29, R31, R41, R43 |
| 4 | 2.2M | R_Axial_DIN0617_L17.0mm_D6.0mm_P20.32mm_Horizontal | R8, R20, R32, R44 |
| 4 | 200k | R_Axial_DIN0617_L17.0mm_D6.0mm_P20.32mm_Horizontal | R10, R22, R34, R46 |
| 4 | 270k | R_Axial_DIN0617_L17.0mm_D6.0mm_P20.32mm_Horizontal | R11, R23, R35, R47 |
| 4 | 220k | R_Axial_DIN0617_L17.0mm_D6.0mm_P20.32mm_Horizontal | R12, R24, R36, R48 |
Dekatronpc design files
The KiCad project lives in the radiolok/dekatronpc repository on GitHub; these links point at the commit this page was built from.
- Layoutsch/opamp/opamp.kicad_pcb
- Schematicsch/opamp/opamp.kicad_sch
Dekatronpc: common questions
How big is the Dekatronpc PCB?
The Dekatronpc measures 209.7 × 188.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Dekatronpc?
81 components, from 15 distinct parts. The full bill of materials is listed on this page.
Where can I download the Dekatronpc design files?
From the radiolok/dekatronpc repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Dekatronpc design in my own project?
The repository has no license, so all rights stay with radiolok. Use it as a reference, and ask the author before reusing the design.
