Wearable-Foot-Motion-Energy-Harvester

Rahul-2-specs·Wearable-Foot-Motion-Energy-Harvester·hardware/pcb/energy_harvester.kicad_pcb

Wearable-Foot-Motion-Energy-Harvester PCB layout, top view — open source board by Rahul-2-specs

About the Wearable-Foot-Motion-Energy-Harvester PCB

Wearable-Foot-Motion-Energy-Harvester is an open source PCB design by Rahul-2-specs, published on GitHub under the MIT license. It is a 2-layer board measuring 68.8 × 33.9 mm, with 14 components from 12 distinct parts.

By type, the board carries 4 connectors, 4 capacitors, 3 resistors, 2 transistors and 1 diode.

It belongs with the wearables and power & battery designs in this gallery.

From the project

Wearable piezoelectric energy harvesting system that converts foot motion into electrical energy for low-power wearable and biomedical applications.

A wearable piezoelectric energy harvesting system designed to convert mechanical energy generated by human foot motion into usable electrical energy for low-power wearable and biomedical applications.

The implemented system uses an LDT2-028K piezoelectric sensor mounted on a cantilever structure, followed by DB107 full-wave rectification, capacitor-based energy storage, and MOSFET-based power switching between the harvested-energy path and a rechargeable battery backup.

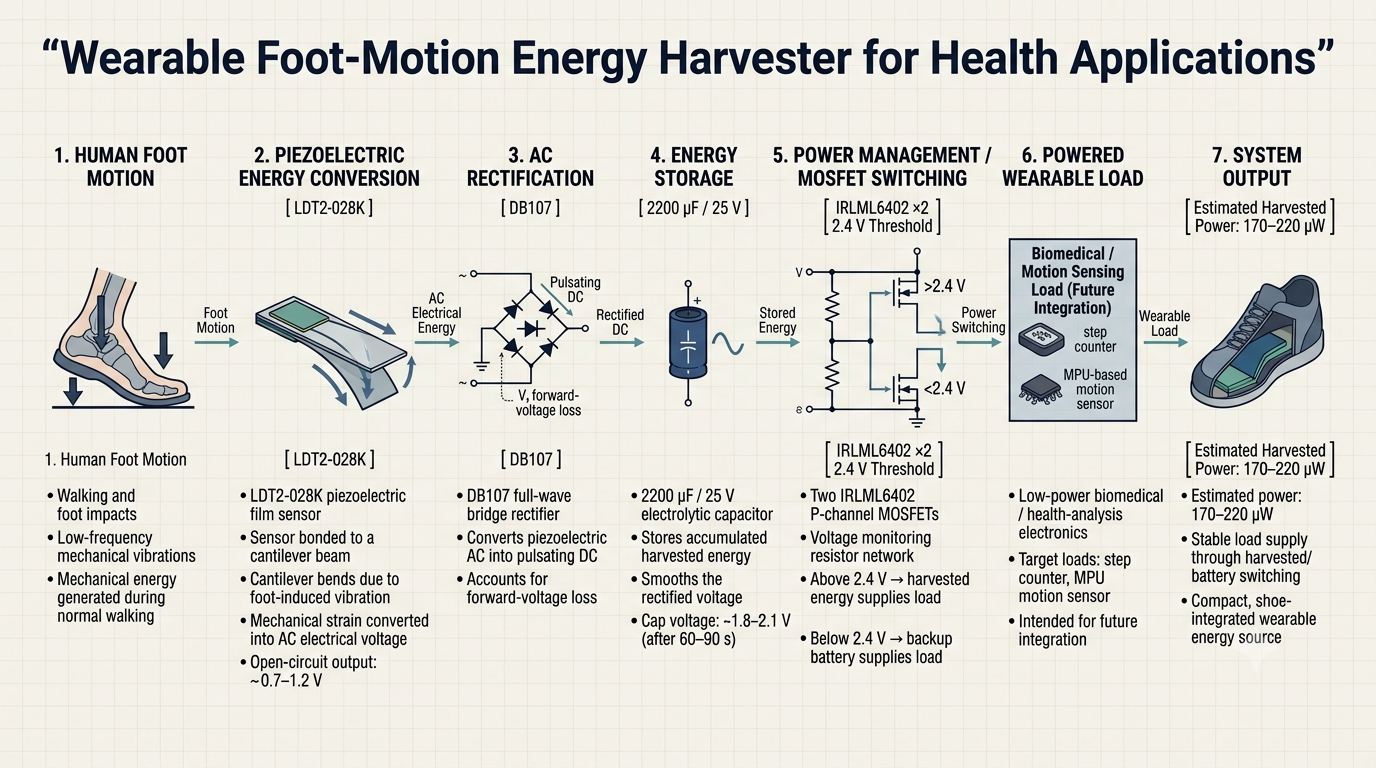

Wearable-Foot-Motion-Energy-Harvester, from the project README
From the project README

Wearable-Foot-Motion-Energy-Harvester bill of materials (BOM)

14 components, 12 distinct parts.

QtyPartRefs
2
IRLML6402
Q1, Q2
2
Conn_01x02_Pin
J1, J5
1
Conn_01x01_Pin
J2
1
Conn_01x04_Pin
J3
1
MDB10S
D1
1
10uC
C1
1
2200uC
C2
1
470uC
C3
1
0.1uC
C4
1
R
R1
1
470K
R2
1
470KR
R3

Wearable-Foot-Motion-Energy-Harvester design files

The KiCad project lives in the Rahul-2-specs/Wearable-Foot-Motion-Energy-Harvester repository on GitHub; these links point at the commit this page was built from.

Wearable-Foot-Motion-Energy-Harvester: common questions

How big is the Wearable-Foot-Motion-Energy-Harvester PCB?

The Wearable-Foot-Motion-Energy-Harvester measures 68.8 × 33.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Wearable-Foot-Motion-Energy-Harvester?

14 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the Wearable-Foot-Motion-Energy-Harvester design files?

From the Rahul-2-specs/Wearable-Foot-Motion-Energy-Harvester repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Wearable-Foot-Motion-Energy-Harvester design in my own project?

Yes, under the terms of its MIT license, which Rahul-2-specs chose for the repository.
