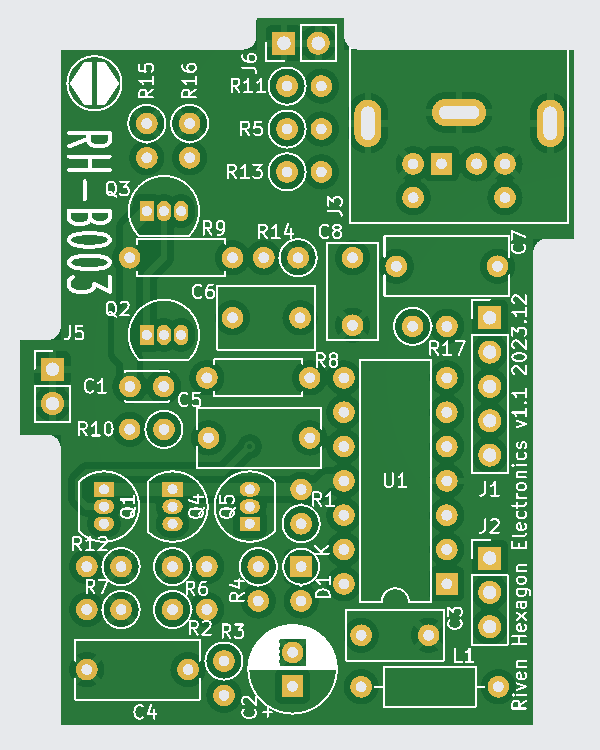

CoCo2 Video
About the CoCo2 Video PCB
CoCo2 Video is an open source PCB design by RivenHexagon, published on GitHub. It is a 2-layer board measuring 41 × 52.5 mm, with 38 components from 26 distinct parts.
Other key parts include the MC1372P. By type, the board carries 17 resistors, 8 capacitors, 5 transistors, 5 connectors, 1 IC and 1 diode.
From the project
A Composite and S-Video Mod for Tandy Radioshack Color Computer 2
The RHCCV is a video mod for the Tandy Radio Shack Color Computer 2. The modification replaces the original video module (the shiny metal box) of the CoCo2. It features a 6-pin or 4-pin compatible Mini DIN connector with S-Video, Composite Video and Audio outputs.
The /jlcpcb folder contains production-ready files that can be directly uploaded to jlcpcb.com for PCB manufacturing.
Main components on the CoCo2 Video
CoCo2 Video bill of materials (BOM)
38 components, 26 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MC1372P | DIP-14_W7.62mm | U1 |
| 3 | BC547 | TO-92_Inline | Q1, Q3, Q5 |
| 2 | BC557 | TO-92_Inline | Q2, Q4 |
| 1 | 20261043 | PinHeader_1x05_P2.54mm_Vertical | J1 |
| 1 | to PCB | PinHeader_1x03_P2.54mm_Vertical | J2 |
| 1 | Video | Connector_Mini-DIN_Female_6Pin_2rows | J3 |
| 1 | GND_W | PinHeader_1x02_P2.54mm_Vertical | J5 |
| 1 | GND_N | PinHeader_1x02_P2.54mm_Vertical | J6 |
| 1 | 1N4148 | D_DO-35_SOD27_P2.54mm_Vertical_AnodeUp | D1 |
| 1 | 10u | L_Axial_L6.6mm_D2.7mm_P10.16mm_Horizontal_Vishay_IM-2 | L1 |
| 1 | 100p | C_Disc_D3.0mm_W2.0mm_P2.50mm | C1 |
| 1 | 220u | CP_Radial_D6.3mm_P2.50mm | C2 |
| 2 | 22n | C_Rect_L7.0mm_W3.5mm_P5.00mm | C3, C8 |
| 3 | 100n | C_Rect_L9.0mm_W4.2mm_P7.50mm_MKT | C4, C5, C7 |
| 1 | 1u | C_Rect_L7.0mm_W4.5mm_P5.00mm | C6 |
| 2 | 680R | R_Axial_DIN0207_L6.3mm_D2.5mm_P2.54mm_Vertical | R1, R15 |
| 1 | 5k6 | R_Axial_DIN0207_L6.3mm_D2.5mm_P2.54mm_Vertical | R2 |
| 2 | 220R | R_Axial_DIN0207_L6.3mm_D2.5mm_P2.54mm_Vertical | R3, R4 |
| 3 | 75R | R_Axial_DIN0207_L6.3mm_D2.5mm_P2.54mm_Vertical | R5, R11, R13 |
| 1 | 3k3 | R_Axial_DIN0207_L6.3mm_D2.5mm_P2.54mm_Vertical | R6 |
Show 6 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | 470R | R_Axial_DIN0207_L6.3mm_D2.5mm_P2.54mm_Vertical | R7, R12, R16 |
| 1 | 680R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R8 |
| 1 | 4k7 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R9 |
| 1 | 330R | R_Axial_DIN0207_L6.3mm_D2.5mm_P2.54mm_Vertical | R10 |
| 1 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P2.54mm_Vertical | R14 |
| 1 | 3k9 | R_Axial_DIN0207_L6.3mm_D2.5mm_P2.54mm_Vertical | R17 |
CoCo2 Video design files
The KiCad project lives in the RivenHexagon/CoCo2_Video repository on GitHub; these links point at the commit this page was built from.
- LayoutCoCo2VideoMod.kicad_pcb
- SchematicCoCo2VideoMod.kicad_sch
CoCo2 Video: common questions
How big is the CoCo2 Video PCB?
The CoCo2 Video measures 41 × 52.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the CoCo2 Video?
38 components, from 26 distinct parts. The full bill of materials is listed on this page.
Where can I download the CoCo2 Video design files?
From the RivenHexagon/CoCo2_Video repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the CoCo2 Video design in my own project?
The repository has no license, so all rights stay with RivenHexagon. Use it as a reference, and ask the author before reusing the design.
