ProtoboardSource
About the ProtoboardSource PCB
ProtoboardSource is an open source PCB design by RoMadrigal, published on GitHub under the MIT license. It is a 2-layer board measuring 53 × 62.9 mm, with 4 components from 2 distinct parts.
By type, the board carries 2 connectors and 2 capacitors.
From the project

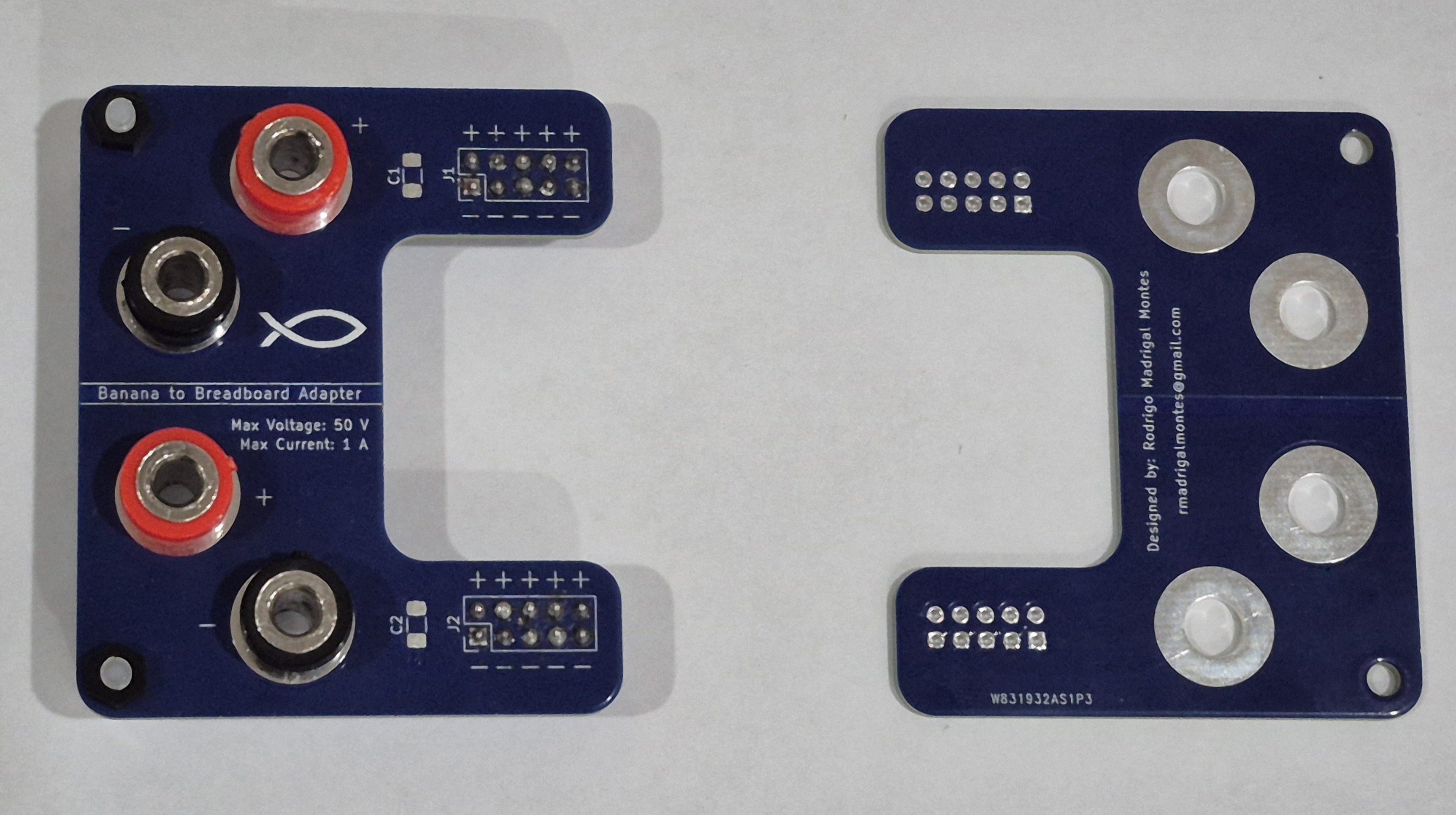

Repositorio del diseño de una PCB que permite conectar directamente cables con conector banana para alimentar una protoboard
Este repositorio y sus contenidos fueron diseñados por:
Quiero expresar mi agradecimiento a PCBWay por su colaboración y apoyo en la fabricación de esta PCB. La calidad de las placas recibidas, tanto en precisión de fabricación como en acabados, encajaron perfectamente con las dimensiones y especificaciones con las que las diseñé. Esto siempre es vital y más aún en una PCB de este tipo que debe encajar en una Protoboard con dimensiones muy específicas.
ProtoboardSource bill of materials (BOM)
4 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | Conn_02x05_Odd_Even | PinHeader_2x05_P2.54mm_Vertical | J1, J2 |
| 2 | C | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C1, C2 |
ProtoboardSource design files
The KiCad project lives in the RoMadrigal/ProtoboardSource-PCB repository on GitHub; these links point at the commit this page was built from.
ProtoboardSource: common questions
How big is the ProtoboardSource PCB?
The ProtoboardSource measures 53 × 62.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ProtoboardSource?
4 components, from 2 distinct parts. The full bill of materials is listed on this page.
Where can I download the ProtoboardSource design files?
From the RoMadrigal/ProtoboardSource-PCB repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the ProtoboardSource design in my own project?
Yes, under the terms of its MIT license, which RoMadrigal chose for the repository.
