Proteus mitsubishi76-adapter

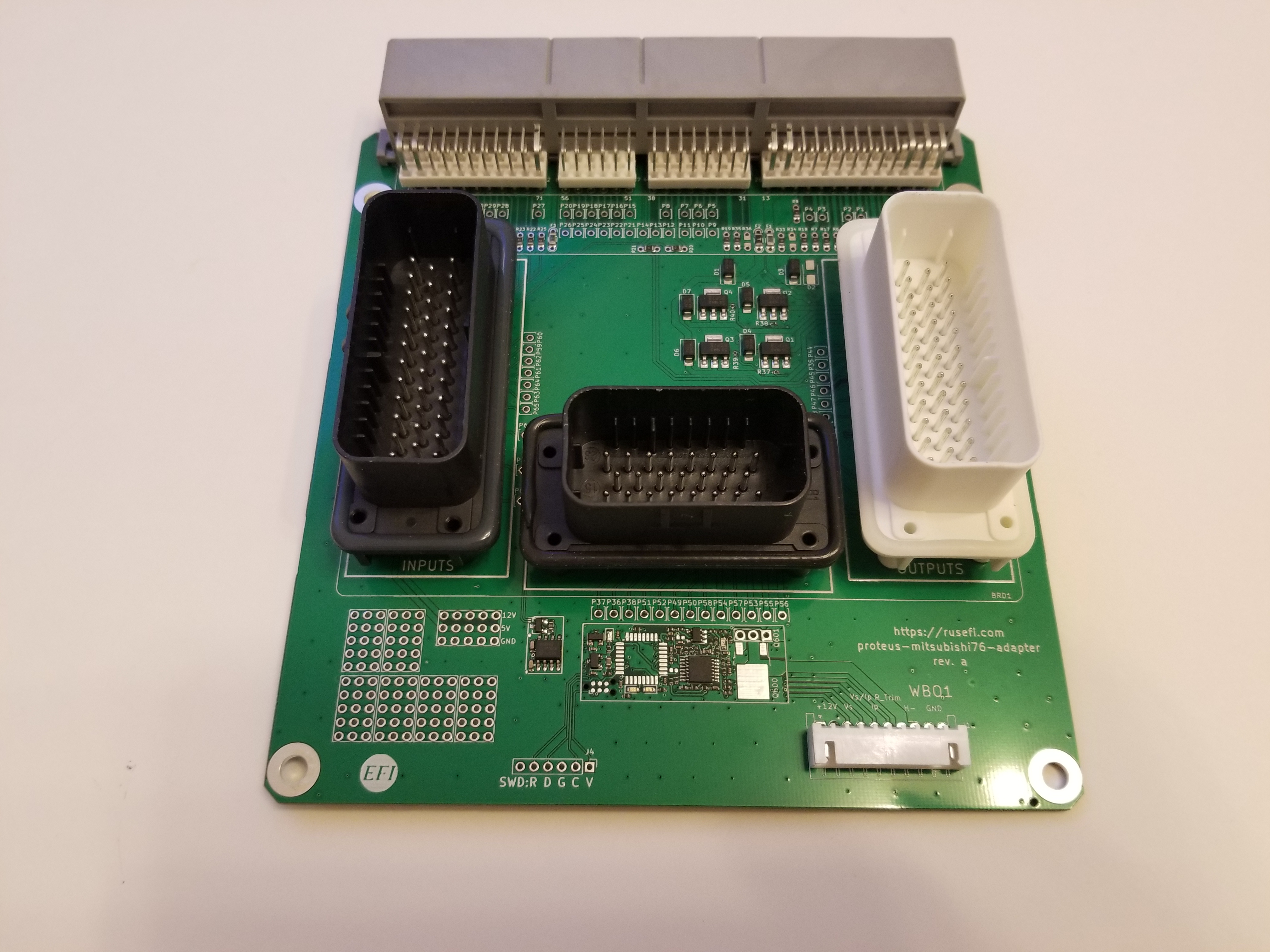

About the Proteus mitsubishi76-adapter PCB
Proteus mitsubishi76-adapter is an open source PCB design by rusefi, published on GitHub. It is a 2-layer board measuring 149 × 158 mm, with 134 components from 16 distinct parts.
By type, the board carries 70 connectors, 40 resistors, 7 diodes, 4 transistors, 3 fuses and 2 modules.
From the project
https://github.com/rusefi/rusefi and https://github.com/mck1117/proteus
https://github.com/rusefi/rusefi and https://github.com/mck1117/proteus
2 gen DSM 1995-1999 Mitsubishi Eclipse and Eagle Talon Turbo DSM ECU Pinouts
Our document, need work Connector Pinout Spreadsheet, with links to wiring drawings
Norman notes https://docs.google.com/spreadsheets/d/1ddxDElQDG0ZjSaX5fpkFeflPWwk7OCHC93gru9Ey_9U
https://my.prostreetonline.com/2013/09/05/faq-1g-and-2g-dsm-ecu-pinouts/
Proteus mitsubishi76-adapter bill of materials (BOM)
134 components, 16 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Module-wbo-0.3 | wbo | M1 |
| 1 | Module-can-0.1 | can | M2 |
| 4 | AUIPS2041LTR | SOT-223 | Q1, Q2, Q3, Q4 |
| 1 | XH-10AW | JST_XH_S10B-XH-A_1x10_P2.50mm_Horizontal | J1 |
| 1 | TE-3-178780-6 | TE-3-178780-6 | J2 |
| 1 | CONN_01X06 Conn_01x06 | PinHeader_1x06_P2.54mm_Vertical | J4 |
| 67 | Pad | PAD-TH | P1, P2, P3, P4, P5, P6, P7, P8 +59 |
| 1 | proteus | proteus | BRD1 |
| 2 | C182446 Fuse-Pad-Pad | PAD-1206-PAD | F1, F3 |
| 1 | Fuse-Pad-Pad | PAD-1206-PAD | F2 |
| 7 | PROTO_AREA | PROTO_AREA | G2, G3, G4, G5, G6, G7, G8 |
| 6 | C8678 D_Schottky | D_SMA | D1, D3, D4, D5, D6, D7 |
| 1 | DNP | D_SMA | D2 |
| 34 | C17477 Jumper-Pad-Pad | PAD-0805-PAD | R1, R2, R3, R4, R5, R6, R7, R8 +26 |
| 2 | Jumper-Pad-Pad | PAD-0805-PAD | R34, R36 |
| 4 | 10K 10k | R_0402_1005Metric | R37, R38, R39, R40 |
Proteus mitsubishi76-adapter design files
The KiCad project lives in the rusefi/proteus-mitsubishi76-adapter repository on GitHub; these links point at the commit this page was built from.
Proteus mitsubishi76-adapter: common questions
How big is the Proteus mitsubishi76-adapter PCB?
The Proteus mitsubishi76-adapter measures 149 × 158 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Proteus mitsubishi76-adapter?
134 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Proteus mitsubishi76-adapter design files?
From the rusefi/proteus-mitsubishi76-adapter repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Proteus mitsubishi76-adapter design in my own project?
The repository has no license, so all rights stay with rusefi. Use it as a reference, and ask the author before reusing the design.
