REF1714-NDS-GBA-Action-Replay-Max
About the REF1714-NDS-GBA-Action-Replay-Max PCB
REF1714-NDS-GBA-Action-Replay-Max is an open source PCB design by RWeick, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 53.8 × 67 mm, with 23 components from 17 distinct parts.
Other key parts include the SST39VF200A-70-4C-EKE, Datel_GBA/NDS 0602M3015, NDS_Cart_Slot and Cypress Unknown. By type, the board carries 7 capacitors, 6 resistors, 4 ICs, 4 connectors, 1 crystal and 1 switch.
From the project

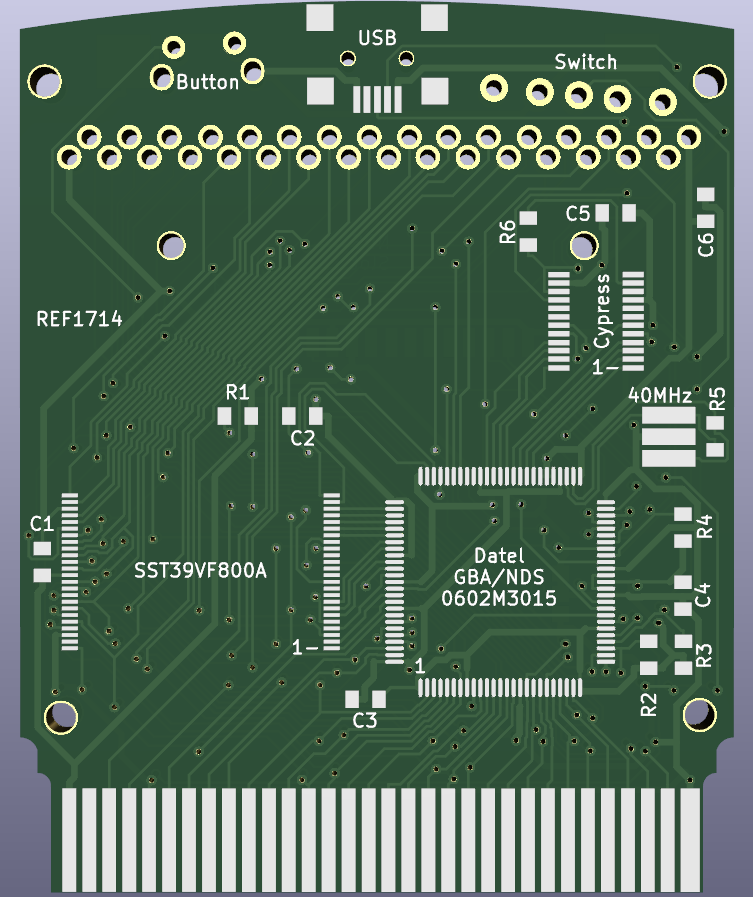

A full schematic, optimized PCB, and the rom dump
Main components on the REF1714-NDS-GBA-Action-Replay-Max
REF1714-NDS-GBA-Action-Replay-Max bill of materials (BOM)
23 components, 17 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SST39VF200A-70-4C-EKE SST39VF800A | sst39vf800a-70-4c-eke | U1 |
| 1 | Datel_GBA/NDS 0602M3015 | GBA AR Max FPGA | U2 |
| 1 | NDS_Cart_Slot | NDS Slot | U3 |
| 1 | Cypress Unknown | AR Max Cypress | U4 |
| 1 | Crystal_GND3 | 40MHz Crystal | Y1 |
| 1 | USB_B_Mini | USB_Mini_B | J1 |
| 1 | SW_DPDT_x2 | Angled Switch | J2 |
| 1 | System_Edge_Connector | Edge Connector | J3 |
| 1 | Game_Edge_Connector | Cartridge Slot, GBC | J4 |
| 1 | SW_Push_Dual | Angled Button | SW1 |
| 2 | 400nF 0805 | AR Max Capacitor | C1, C5 |
| 4 | 100nF 0805 | AR Max Capacitor | C2, C3, C4, C6 |
| 1 | Conn_01x03_Female | AR MAX Back Cap | C7 |
| 3 | 10k Ohm 0805 | AR Max Capacitor | R1, R2, R3 |
| 1 | 2.2k Ohm 0805 | AR Max Capacitor | R4 |
| 1 | 220k Ohm 0805 | AR Max Capacitor | R5 |
| 1 | 1.5k Ohm 0805 | AR Max Capacitor | R6 |
REF1714-NDS-GBA-Action-Replay-Max design files
The KiCad project lives in the RWeick/REF1714-NDS-GBA-Action-Replay-Max repository on GitHub; these links point at the commit this page was built from.
- LayoutREF1714.kicad_pcb
- SchematicREF1714.kicad_sch
REF1714-NDS-GBA-Action-Replay-Max: common questions
How big is the REF1714-NDS-GBA-Action-Replay-Max PCB?
The REF1714-NDS-GBA-Action-Replay-Max measures 53.8 × 67 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the REF1714-NDS-GBA-Action-Replay-Max?
23 components, from 17 distinct parts. The full bill of materials is listed on this page.
Where can I download the REF1714-NDS-GBA-Action-Replay-Max design files?
From the RWeick/REF1714-NDS-GBA-Action-Replay-Max repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the REF1714-NDS-GBA-Action-Replay-Max design in my own project?
Yes, under the terms of its GPL-3.0 license, which RWeick chose for the repository.
