Kicad iqdac

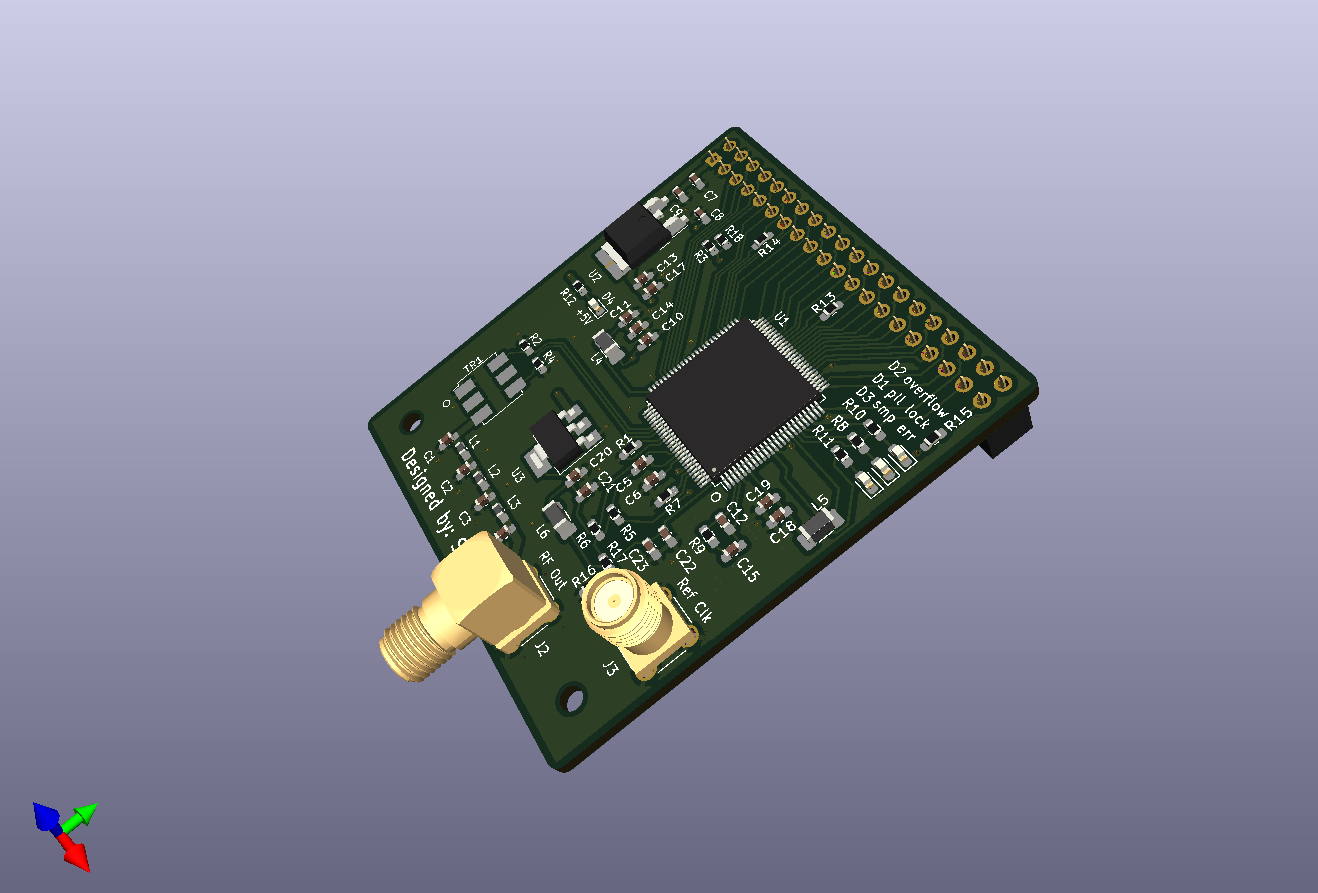

About the Kicad iqdac PCB
Kicad iqdac is an open source PCB design by s59mz, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 53.3 × 58.4 mm, with 65 components from 23 distinct parts.
Other key parts include the AD9957 and AMS1117-1.8. By type, the board carries 31 capacitors, 17 resistors, 6 inductors, 4 diodes, 3 ICs and 3 connectors.
From the project
AD9957 DAC test module for the Z-Turn I/O expansion card
Main components on the Kicad iqdac
Kicad iqdac bill of materials (BOM)
65 components, 23 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AD9957 | TQFP-100-1EP_14x14mm_P0.5mm_EP5x5mm | U1 |
| 1 | AMS1117-1.8 | TO-252-2 | U2 |
| 1 | AMS1117-1.8 | SOT-223-3_TabPin2 | U3 |
| 1 | Conn_02x20_Odd_Even | PinSocket_2x20_P2.54mm_Vertical | J1 |
| 1 | RF Out | SMA_Amphenol_132291_Vertical | J2 |
| 1 | Ref Clk | SMA_Amphenol_132291_Vertical | J3 |
| 1 | ADT2-1T | Mini-Circuits_CD542_H2.84mm | TR1 |
| 2 | green | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D1, D4 |
| 2 | red | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D2, D3 |
| 2 | 24n | L_0603_1608Metric_Pad1.05x0.95mm_HandSolder | L1, L3 |
| 1 | 30n | L_0603_1608Metric_Pad1.05x0.95mm_HandSolder | L2 |
| 3 | 1u | L_1206_3216Metric_Pad1.22x1.90mm_HandSolder | L4, L5, L6 |
| 2 | 3p3 | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1, C4 |
| 2 | 6p4 | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C2, C3 |
| 18 | 100n | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C5, C6, C9, C10, C14, C16, C17, C19 +10 |
| 7 | 10u | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C7, C8, C11, C13, C18, C20, C22 |
| 1 | 100p | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C12 |
| 1 | 470p | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C15 |
| 3 | 10k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R3, R18 |
| 3 | 49.9E | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R2, R4, R16 |
Show 3 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 8 | 1k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R5, R6, R7, R8, R10, R11, R12, R17 |
| 1 | 680E | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R9 |
| 2 | 47E | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R13, R14 |
Kicad iqdac design files
The KiCad project lives in the s59mz/kicad-iqdac repository on GitHub; these links point at the commit this page was built from.
- Layoutiqdac.kicad_pcb
- Schematiciqdac.kicad_sch
Kicad iqdac: common questions
How big is the Kicad iqdac PCB?
The Kicad iqdac measures 53.3 × 58.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Kicad iqdac?
65 components, from 23 distinct parts. The full bill of materials is listed on this page.
Where can I download the Kicad iqdac design files?
From the s59mz/kicad-iqdac repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Kicad iqdac design in my own project?
Yes, under the terms of its GPL-3.0 license, which s59mz chose for the repository.
