Ximi plates pointing device template
About the Ximi plates pointing device template PCB
Ximi plates pointing device template is an open source PCB design by sadekbaroudi, published on GitHub under the MIT license. It is a 2-layer board measuring 30 × 30 mm, with 25 components from 5 distinct parts.
By type, the board carries 22 switches and 2 connectors.
From the project

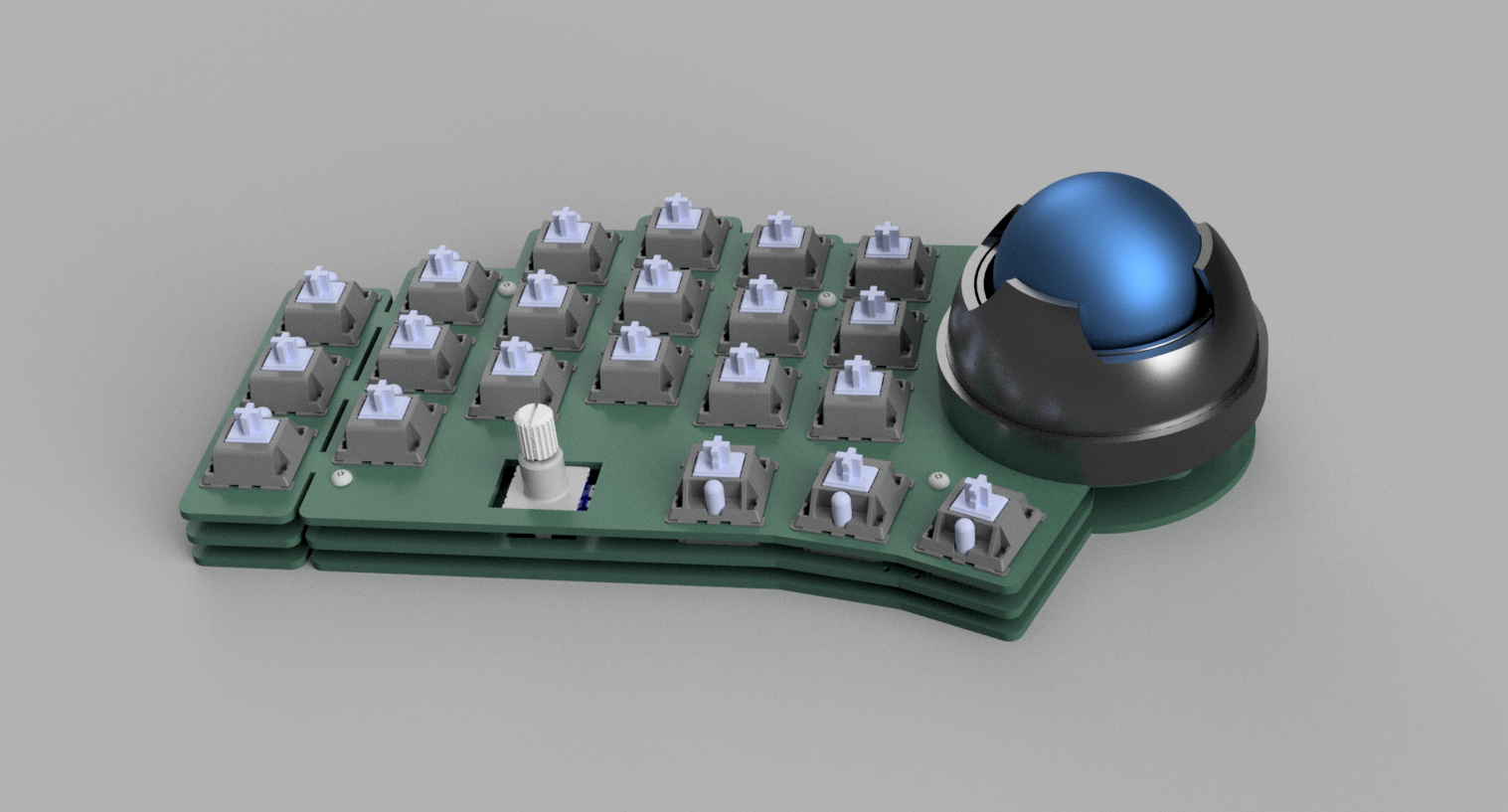

This includes FR-4 plates to allow you to assemble the ximi pcb with plates, along with the ability to add a modular attachment for the pointing device.
This includes FR-4 plates to allow you to assemble the ximi pcb with plates, along with the ability to add a modular attachment for the pointing device.
To build this style case, you'll need: 2 sets of FR-4 plates, found in the fr-4 directory 10x - 8mm M2 standoffs 20x - 5mm M2 screws + 2 per pointing device 2x - M2 4mm heat set inserts per pointing device * 3D printed attachment per pointing device
Ximi plates pointing device template bill of materials (BOM)
25 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | USB_C_Receptacle_USB2.0 | USB_C_Receptacle_HRO_TYPE-C-31-M-12 | J2 |
| 1 | AudioJack4dpb | TRRS-PJ-320A | J7 |
| 1 | fp-modular-pointing-mount | fp-trackball-pcb-mount | H17 |
| 21 | SW_Push | switch-cutout-mx | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +13 |
| 1 | RotaryEncoder_Switch | RotaryEncoder_EC11-no-legs | SW47 |
Ximi plates pointing device template design files
The KiCad project lives in the sadekbaroudi/fingerpunch repository on GitHub; these links point at the commit this page was built from.
Ximi plates pointing device template: common questions
How big is the Ximi plates pointing device template PCB?
The Ximi plates pointing device template measures 30 × 30 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Ximi plates pointing device template?
25 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the Ximi plates pointing device template design files?
From the sadekbaroudi/fingerpunch repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Ximi plates pointing device template design in my own project?
Yes, under the terms of its MIT license, which sadekbaroudi chose for the repository.
