MOSFET-As-Switch-Kicad-Simulation
About the MOSFET-As-Switch-Kicad-Simulation PCB
MOSFET-As-Switch-Kicad-Simulation is an open source PCB design by satvikpandurangi, published on GitHub. It is a board, with 4 components from 4 distinct parts.
By type, the board carries 1 transistor and 1 resistor.
From the project
A complete KiCad SPICE simulation demonstrating the switching characteristics and transient response of an N-Channel MOSFET.

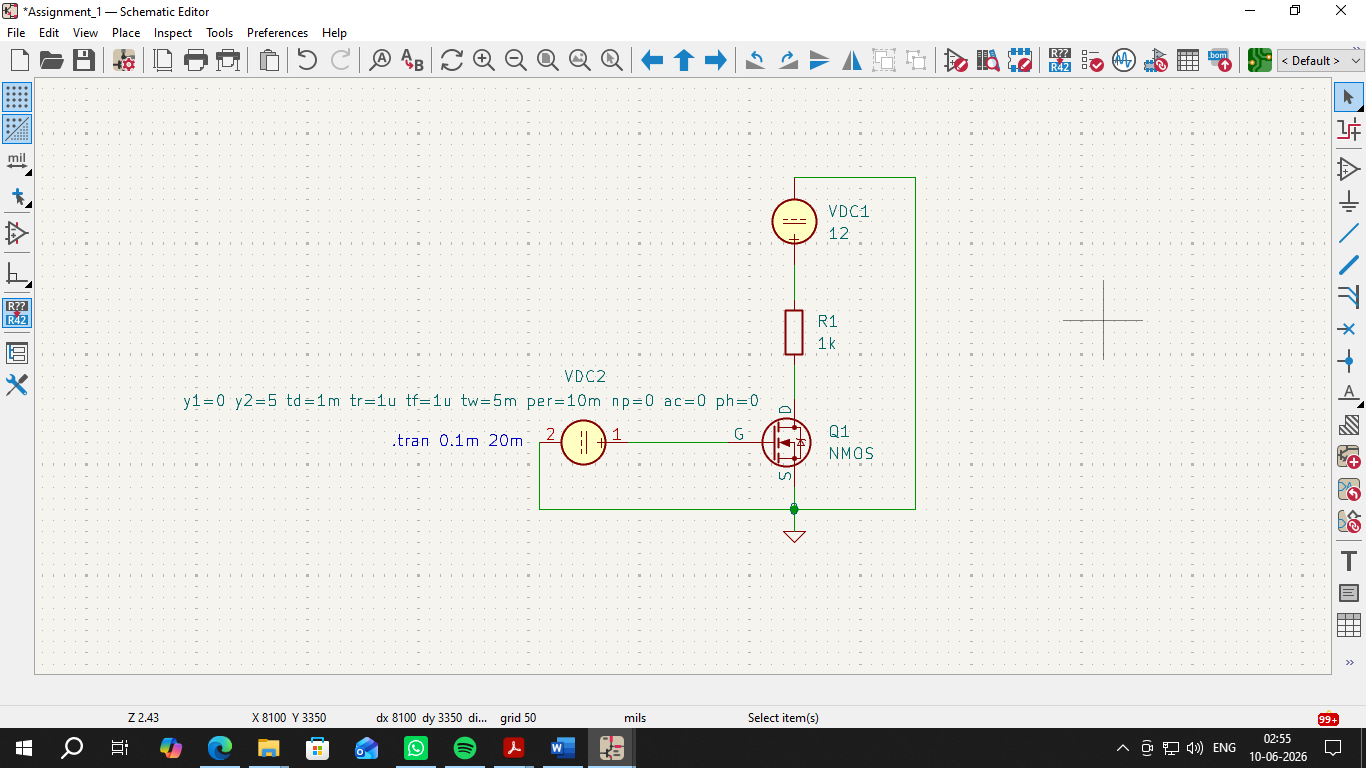

This repository contains a fully functional KiCad schematic and SPICE simulation demonstrating how an N-Channel Enhancement MOSFET operates as an electronic switch. Using KiCad's integrated ngspice engine, the project models a transistor controlling a resistive load and verifies its switching behavior through transient analysis — bypassing the need for physical hardware prototyping.
MOSFET-As-Switch-Kicad-Simulation bill of materials (BOM)
4 components, 4 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NMOS | Q1 | |
| 1 | 12 | VDC1 | |
| 1 | ${SIM.PARAMS} | VDC2 | |
| 1 | 1k | R1 |
MOSFET-As-Switch-Kicad-Simulation design files
The KiCad project lives in the satvikpandurangi/MOSFET-As-Switch-Kicad-Simulation repository on GitHub; these links point at the commit this page was built from.
- SchematicMOSFET_As_Switch.kicad_sch
MOSFET-As-Switch-Kicad-Simulation: common questions
How many components are on the MOSFET-As-Switch-Kicad-Simulation?
4 components, from 4 distinct parts. The full bill of materials is listed on this page.
Where can I download the MOSFET-As-Switch-Kicad-Simulation design files?
From the satvikpandurangi/MOSFET-As-Switch-Kicad-Simulation repository on GitHub, which has the schematic; the links under Design files point to each one.
Can I use the MOSFET-As-Switch-Kicad-Simulation design in my own project?
The repository has no license, so all rights stay with satvikpandurangi. Use it as a reference, and ask the author before reusing the design.
