About the EMP-20Module PCB

EMP-20Module is an open source PCB design by schlae, published on GitHub. It is a 2-layer board measuring 20.3 × 118.1 mm, with 152 components from 77 distinct parts.

By type, the board carries 148 jumpers and 2 connectors.

From the project

Universal EMP-20 Family Module

The Needham Electronics EMP-20 is an older parallel-port connected device programmer that can be found fairly inexpensively and supports a wide range of older devices, so it is particularly useful for retrocomputing.

The EMP-20 requires a set of family modules to rewire the socket for particular types of target devices. Typically only power, ground, and VPP signals route through the family module.

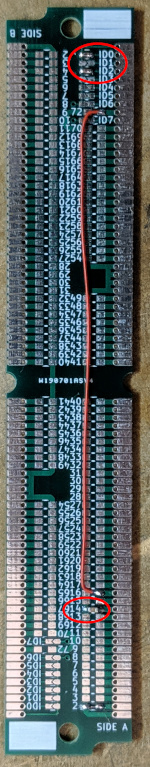

EMP-20Module, from the project README — From the project README

EMP-20Module bill of materials (BOM)

152 components, 77 distinct parts.

Qty	Part	Footprint	Refs
1	SIDE A	EDGE_DIMM_80_127	J1
1	SIDE B	EDGE_DIMM_80_127	J2
2	MountingHole	MH_125	H1, H2
2	ID0	JMP1608	JP1, JP75
2	ID1	JMP1608	JP2, JP76
2	ID2	JMP1608	JP3, JP77
2	ID3	JMP1608	JP4, JP78
2	ID4	JMP1608	JP5, JP79
2	ID5	JMP1608	JP6, JP80
2	ID6	JMP1608	JP7, JP81
2	72	RESC1608X55_HandSoldering	JP8, JP82
2	ID7	JMP1608	JP9, JP83
2	70	RESC1608X55_HandSoldering	JP10, JP84
2	69	RESC1608X55_HandSoldering	JP11, JP85
2	68	RESC1608X55_HandSoldering	JP12, JP86
2	67	RESC1608X55_HandSoldering	JP13, JP87
2	66	RESC1608X55_HandSoldering	JP14, JP88
2	65	RESC1608X55_HandSoldering	JP15, JP89
2	64	RESC1608X55_HandSoldering	JP16, JP90
2	63	RESC1608X55_HandSoldering	JP17, JP91

Show 57 more

Qty	Part	Footprint	Refs
2	62	RESC1608X55_HandSoldering	JP18, JP92
2	61	RESC1608X55_HandSoldering	JP19, JP93
2	60	RESC1608X55_HandSoldering	JP20, JP94
2	59	RESC1608X55_HandSoldering	JP21, JP95
2	58	RESC1608X55_HandSoldering	JP22, JP96
2	57	RESC1608X55_HandSoldering	JP23, JP97
2	56	RESC1608X55_HandSoldering	JP24, JP98
2	55	RESC1608X55_HandSoldering	JP25, JP99
2	54	RESC1608X55_HandSoldering	JP26, JP100
2	49	RESC1608X55_HandSoldering	JP27, JP101
2	48	RESC1608X55_HandSoldering	JP28, JP102
2	47	RESC1608X55_HandSoldering	JP29, JP103
2	46	RESC1608X55_HandSoldering	JP30, JP104
2	45	RESC1608X55_HandSoldering	JP31, JP105
2	44	RESC1608X55_HandSoldering	JP32, JP106
2	43	RESC1608X55_HandSoldering	JP33, JP107
2	42	RESC1608X55_HandSoldering	JP34, JP108
2	41	RESC1608X55_HandSoldering	JP35, JP109
2	40	RESC1608X55_HandSoldering	JP36, JP110
2	39	RESC1608X55_HandSoldering	JP37, JP111
2	38	RESC1608X55_HandSoldering	JP38, JP112
2	37	RESC1608X55_HandSoldering	JP39, JP113
2	36	RESC1608X55_HandSoldering	JP40, JP114
2	35	RESC1608X55_HandSoldering	JP41, JP115
2	34	RESC1608X55_HandSoldering	JP42, JP116
2	33	RESC1608X55_HandSoldering	JP43, JP117
2	32	RESC1608X55_HandSoldering	JP44, JP118
2	31	RESC1608X55_HandSoldering	JP45, JP119
2	30	RESC1608X55_HandSoldering	JP46, JP120
2	29	RESC1608X55_HandSoldering	JP47, JP121
2	28	RESC1608X55_HandSoldering	JP48, JP122
2	27	RESC1608X55_HandSoldering	JP49, JP123
2	26	RESC1608X55_HandSoldering	JP50, JP124
2	25	RESC1608X55_HandSoldering	JP51, JP125
2	24	RESC1608X55_HandSoldering	JP52, JP126
2	23	RESC1608X55_HandSoldering	JP53, JP127
2	22	RESC1608X55_HandSoldering	JP54, JP128
2	21	RESC1608X55_HandSoldering	JP55, JP129
2	20	RESC1608X55_HandSoldering	JP56, JP130
2	19	RESC1608X55_HandSoldering	JP57, JP131
2	18	RESC1608X55_HandSoldering	JP58, JP132
2	17	RESC1608X55_HandSoldering	JP59, JP133
2	16	RESC1608X55_HandSoldering	JP60, JP134
2	15	RESC1608X55_HandSoldering	JP61, JP135
2	14	RESC1608X55_HandSoldering	JP62, JP136
2	13	RESC1608X55_HandSoldering	JP63, JP137
2	12	RESC1608X55_HandSoldering	JP64, JP138
2	11	RESC1608X55_HandSoldering	JP65, JP139
2	10	RESC1608X55_HandSoldering	JP66, JP140
2	9	RESC1608X55_HandSoldering	JP67, JP141
2	8	RESC1608X55_HandSoldering	JP68, JP142
2	7	RESC1608X55_HandSoldering	JP69, JP143
2	6	RESC1608X55_HandSoldering	JP70, JP144
2	5	RESC1608X55_HandSoldering	JP71, JP145
2	4	RESC1608X55_HandSoldering	JP72, JP146
2	3	RESC1608X55_HandSoldering	JP73, JP147
2	2	RESC1608X55_HandSoldering	JP74, JP148

EMP-20Module design files

The KiCad project lives in the schlae/EMP-20Module repository on GitHub; these links point at the commit this page was built from.

LayoutEMP-20 Module.kicad_pcb

EMP-20Module: common questions

How big is the EMP-20Module PCB?

The EMP-20Module measures 20.3 × 118.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the EMP-20Module?

152 components, from 77 distinct parts. The full bill of materials is listed on this page.

Where can I download the EMP-20Module design files?

From the schlae/EMP-20Module repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the EMP-20Module design in my own project?

The repository has no license, so all rights stay with schlae. Use it as a reference, and ask the author before reusing the design.
