PCB-Business-Card is an open source PCB design by SethHibpshman, published on GitHub. It is a 2-layer board measuring 88.9 × 99.7 mm, with 29 components from 29 distinct parts.
From the project

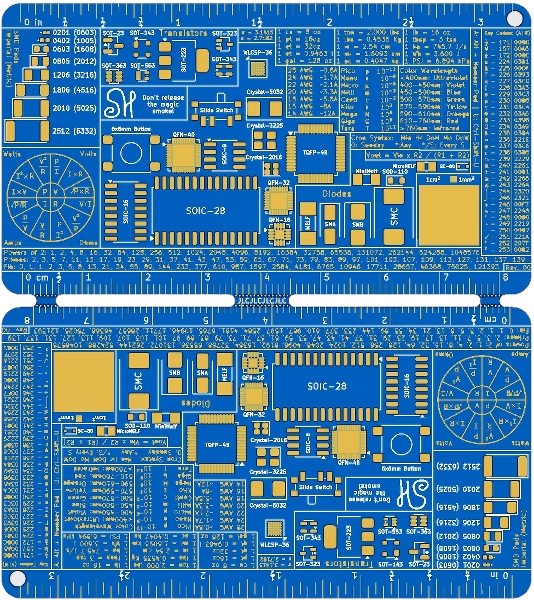

A business card created in KiCad utilizing the silkscreen and exposed copper layers for a dual tone effect. Has reference equations and footprints on one side and business card info on the other.
- Overview - Design - Manufacturing - Panelization - PCB Design - Bill of Materials - Author - License
This card is a small side project built to double as both a functional reference sheet and a business card. Instead of printing on paper, the whole thing lives on a PCB. One face is packed with the common
The dual tone look comes from the contrast between the white silkscreen ink and the bare gold exposed copper underneath, so no paint or extra process is needed to get a two color card off a standard fab run.
PCB-Business-Card bill of materials (BOM)
29 components, 29 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SW_SPST_PTS645Sx43SMTR92 | SW_SPST_PTS645Sx43SMTR92 | 6x6mm Button |
| 1 | Crystal_SMD_2016-4Pin_2.0x1.6mm | Crystal_SMD_2016-4Pin_2.0x1.6mm | Crystal-2016 |
| 1 | Crystal_SMD_3225-4Pin_3.2x2.5mm | Crystal_SMD_3225-4Pin_3.2x2.5mm | Crystal-3225 |
| 1 | Crystal_SMD_5032-2Pin_5.0x3.2mm | Crystal_SMD_5032-2Pin_5.0x3.2mm | Crystal-5032 |
| 1 | QFN-16-1EP_3x3mm_P0.5mm_EP1.45x1.45mm | QFN-16-1EP_3x3mm_P0.5mm_EP1.45x1.45mm | QFN-16 |
| 1 | QFN-32-1EP_4x4mm_P0.4mm_EP2.65x2.65mm | QFN-32-1EP_4x4mm_P0.4mm_EP2.65x2.65mm | QFN-32 |
| 1 | QFN-40-1EP_5x5mm_P0.4mm_EP3.6x3.6mm | QFN-40-1EP_5x5mm_P0.4mm_EP3.6x3.6mm | QFN-40 |
| 1 | D_SC-80 | D_SC-80 | SC-80 |
| 1 | D_SOD-110 | D_SOD-110 | SOD-110 |
| 1 | SOIC-8_3.9x4.9mm_P1.27mm | SOIC-8_3.9x4.9mm_P1.27mm | SOIC-8 |
| 1 | SOIC-16_3.9x9.9mm_P1.27mm | SOIC-16_3.9x9.9mm_P1.27mm | SOIC-16 |
| 1 | SOIC-28W_7.5x17.9mm_P1.27mm | SOIC-28W_7.5x17.9mm_P1.27mm | SOIC-28 |
| 1 | SOT-23 | SOT-23 | SOT-23 |
| 1 | SOT-143 | SOT-143 | SOT-143 |
| 1 | SOT-223 | SOT-223 | SOT-223 |
| 1 | SOT-323_SC-70 | SOT-323_SC-70 | SOT-323 |
| 1 | SOT-343_SC-70-4 | SOT-343_SC-70-4 | SOT-343 |
| 1 | SOT-363_SC-70-6 | SOT-363_SC-70-6 | SOT-363 |
| 1 | SOT-553 | SOT-553 | SOT-553 |
| 1 | TQFP-48_7x7mm_P0.5mm | TQFP-48_7x7mm_P0.5mm | TQFP-48 |
Show 9 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | WLCSP-36_2.82x2.67mm_Layout6x6_P0.4mm | WLCSP-36_2.82x2.67mm_Layout6x6_P0.4mm | WLCSP-36 |
| 1 | LED_0201_0603Metric | LED_0201_0603Metric | 0201 (0603) |
| 1 | LED_0402_1005Metric | LED_0402_1005Metric | 0402 (1005) |
| 1 | LED_0603_1608Metric | LED_0603_1608Metric | 0603 (1608) |
| 1 | LED_0805_2012Metric | LED_0805_2012Metric | 0805 (2012) |
| 1 | LED_1206_3216Metric | LED_1206_3216Metric | 1206 (3216) |
| 1 | LED_1806_4516Metric | LED_1806_4516Metric | 1806 (4516) |
| 1 | LED_2010_5025Metric | LED_2010_5025Metric | 2010 (5025) |
| 1 | LED_2512_6332Metric | LED_2512_6332Metric | 2512 (6332) |
PCB-Business-Card design files
The KiCad project lives in the SethHibpshman/PCB-Business-Card repository on GitHub; these links point at the commit this page was built from.
PCB-Business-Card: common questions
How big is the PCB-Business-Card?
The PCB-Business-Card measures 88.9 × 99.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PCB-Business-Card?
29 components, from 29 distinct parts. The full bill of materials is listed on this page.
Where can I download the PCB-Business-Card design files?
From the SethHibpshman/PCB-Business-Card repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the PCB-Business-Card design in my own project?
The repository has no license, so all rights stay with SethHibpshman. Use it as a reference, and ask the author before reusing the design.
