About the Hermes PCB
Hermes is an open source PCB design by Shadow220108, published on GitHub. It is a 4-layer board measuring 70 × 70 mm, with 16 components from 16 distinct parts.
By type, the board carries 4 LEDs and 1 resistor.
From the project
This is my first iteration of a USB Hub using the FE1.1s IC. I plan to make future versions with more ports and different ICs, It was built to solve the scarcity of ports on my miserable laptop
This is my first iteration of a USB Hub using the FE1.1s IC. I plan to make future versions with more ports and different ICs, It was built to solve the scarcity of ports on my miserable laptop

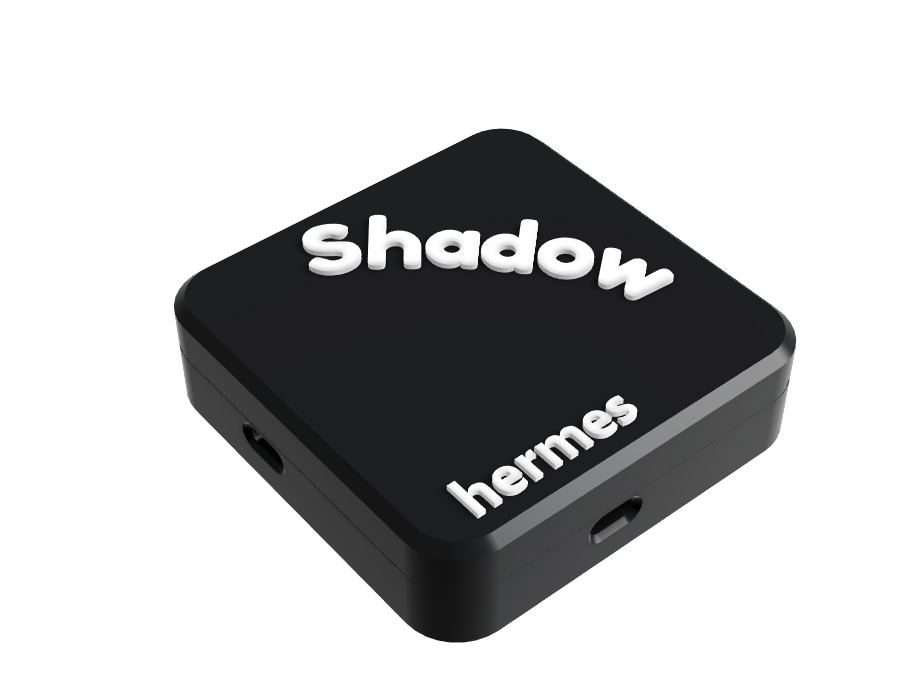

All the components will be hand soldered by me, and the case will be 3D Printed! The bottom and top cases will be attached together with 4mm magnets!
The PCB was made in KiCAD (an open-source software), which uses a 4-layer board with a (5V GND 5V GND) stackup to provide a clean GND plane for data signals. It can support up to 480MHz.
Hermes bill of materials (BOM)
16 components, 16 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 2.7K | R_0603_1608Metric | 2.7k |
| 1 | 2A | Fuse_1206_3216Metric | 2A |
| 1 | 5.1k | R_0805_2012Metric | 5.1k |
| 1 | 10k | R_0805_2012Metric | 10k |
| 1 | 10u | C_0603_1608Metric | 10u |
| 1 | 12Mhz | Crystal_SMD_5032-4Pin_5.0x3.2mm | 12Mhz |
| 1 | 22pF | C_0805_2012Metric | 22pF |
| 1 | 56k | R_0805_2012Metric | 56k |
| 1 | 330R | R_0805_2012Metric | 330R |
| 1 | FE1.1s | SSOP-28_3.9x9.9mm_P0.635mm | FE1.1s |
| 1 | SRV05-4 | SOT-23-6-routable | SRVO5 |
| 1 | PORT1 | LED_D3.0mm | PORT1 |
| 1 | PORT2 | LED_D3.0mm | PORT2 |
| 1 | PORT3 | LED_D3.0mm | PORT3 |
| 1 | PORT4 | LED_D3.0mm | PORT4 |
| 1 | 330R | R_0805_2012Metric | R1 |
