Dl3000-adapters
About the Dl3000-adapters PCB
Dl3000-adapters is an open source PCB design by sirhcel, published on GitHub under the CC0-1.0 license. It is a 2-layer board measuring 57 × 35 mm, with 8 components from 4 distinct parts.
By type, the board carries 5 connectors and 3 test points.
From the project

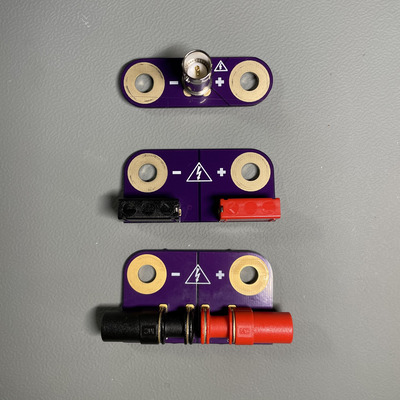

Banana Jack and BNC Adapters for RIGOL DL3000 Electronic Loads
This project is about banana jack and BNC adapters for RIGOL's DL3000 series electronic loads. There are already adapters for narrower binding posts (like BK Precision, ...) but I did not find any for the 39 mm pitch of the RIGOL DL3000 series.
These adapters are meant for conveniently feeding a few amperes - not for high current applications.
The BNC adapter has a pretty standard footprint. So you should be able to find a suitable replacement from your preferred distributor. Information on replacement parts welcome.
Dl3000-adapters bill of materials (BOM)
8 components, 4 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | Banana Jack | Hirschmann_SKS_PB4 | J1, J3 |
| 1 | BNC | BNC_TEConnectivity_1478204_Vertical | J2 |
| 2 | Banana Jack | Pomona_73099 | J4, J5 |
| 3 | Binding Posts | TestPoint_2Pads_D15.0mm_Drill7.0mm_RIGOL_DL3000_Binding_Posts | TP1, TP2, TP3 |
Dl3000-adapters design files
The KiCad project lives in the sirhcel/dl3000-adapters repository on GitHub; these links point at the commit this page was built from.
Dl3000-adapters: common questions
How big is the Dl3000-adapters PCB?
The Dl3000-adapters measures 57 × 35 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Dl3000-adapters?
8 components, from 4 distinct parts. The full bill of materials is listed on this page.
Where can I download the Dl3000-adapters design files?
From the sirhcel/dl3000-adapters repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Dl3000-adapters design in my own project?
Yes, under the terms of its CC0-1.0 license, which sirhcel chose for the repository.
