High freq range amp
About the High freq range amp PCB
High freq range amp is an open source PCB design by sirlilpanda, published on GitHub. It is a board, with 141 components from 46 distinct parts.
Other key parts include the THS3491XDDA. By type, the board carries 33 resistors, 27 diodes, 27 capacitors, 14 connectors, 9 test points and 6 jumpers.
From the project
amplifer for sending out a 20v pkpk waveform at 10MHz
a cool table showing the workflow of all the kicad projects. | project_name | DRC | ERC | | ------------ | --- | --- | | 10MHz-amp | ❌| ❌ |

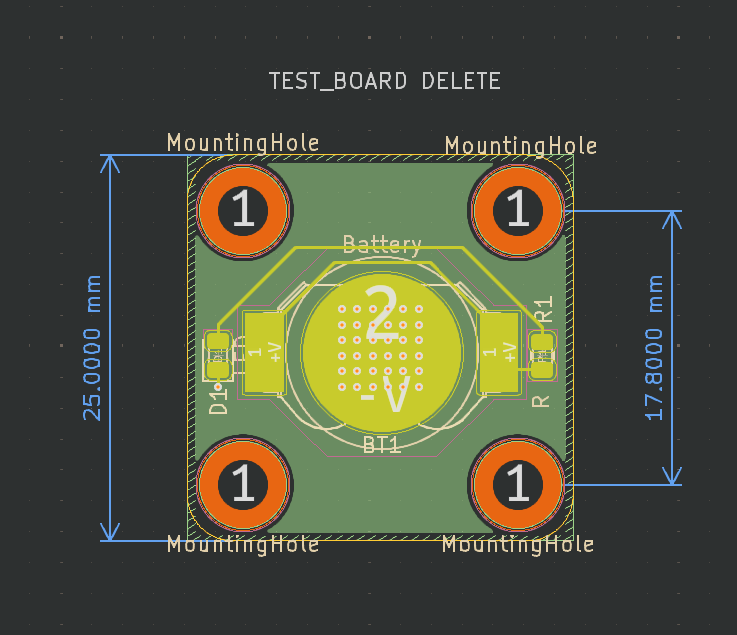

This is a simple project template for new kicad projects. This template has some basic setup already completed such as workflows for auto creating all the things you forget when creating a kicad project such as:
This workflow will also run the design rules check on the PCB and schematic to ensure that you upload a working PCB. These reports are uploaded as summaries within the github actions tab. This template has a simple schematic PCB in it (because…
Main components on the High freq range amp
High freq range amp bill of materials (BOM)
141 components, 46 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | THS3491XDDA THS3491xDDA | SOIC-8-1EP_3.9x4.9mm_P1.27mm_EP2.41x3.3mm | U1 |
| 2 | DMPH6250SQ-13 | SOT-23-3 | Q1, Q3 |
| 1 | DMN6075SQ-7 | SOT-23-3 | Q2 |
| 2 | Conn_Coaxial | BNC_TEConnectivity_1478035_Horizontal | J1, J7 |
| 3 | BANANA_JACK | J2, J3, J4 | |
| 3 | 1X03_SOCKET 1x03_Socket | Molex_KK-396_5273-03A_1x03_P3.96mm_Vertical | J5, J10, J11 |
| 2 | CONN_01X03_PIN Conn_01x03_Pin | J6, J9 | |
| 1 | PJ-063AH | BarrelJack_CUI_PJ-063AH_Horizontal | J8 |
| 1 | 01X03_PIN 01x03_Pin | J12 | |
| 1 | CONN_01X08_SOCKET Conn_01x08_Socket | J13 | |
| 1 | CONN_01X08_PIN Conn_01x08_Pin | PinHeader_2x04_P2.54mm_Vertical | J14 |
| 2 | Fuse | MountingHole_3mm_Pad_Via | F1, F2 |
| 1 | Fuse | F3 | |
| 2 | Heatsink | HS1, HS2 | |
| 3 | RVP BYPASS | SolderJumper-2_P1.3mm_Open_TrianglePad1.0x1.5mm | JP1, JP2, JP5 |
| 1 | +VDC | SolderJumper-2_P1.3mm_Open_TrianglePad1.0x1.5mm | JP3 |
| 1 | -VDC | SolderJumper-2_P1.3mm_Open_TrianglePad1.0x1.5mm | JP4 |
| 1 | 24V | SolderJumper-2_P1.3mm_Open_TrianglePad1.0x1.5mm | JP6 |
| 6 | TQ2-24V | TQ2 | K1, K2, K3, K4, K5, K6 |
| 1 | Housing | N1 |
Show 26 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | SW_SPDT | SW1, SW2, SW3 | |
| 1 | SP6T-A10603RNZQ | PinHeader_2x04_P2.54mm_Vertical | SW4 |
| 9 | crimp | TP3, TP4, TP5, TP6, TP7, TP8, TP9, TP10 +1 | |
| 4 | SM15T39A | ST_D_SMC | D1, D2, D8, D9 |
| 2 | SMAJ16CA | D_SMA | D3, D4 |
| 3 | BZV55B10 | D_MiniMELF | D5, D6, D16 |
| 11 | LED | LED_D5.0mm_Horizontal_O6.35mm_Z3.0mm | D7, D10, D11, D12, D15, D17, D18, D19 +3 |
| 6 | NSR0340HT1G | D_0603_1608Metric | D13, D22, D23, D24, D25, D26 |
| 1 | SMAJ26CA | D_SMA | D14 |
| 5 | 2508051217Y6 | R_0805_2012Metric | FB1, FB2, FB3, FB4, FB5 |
| 2 | 100P 100p | C_0603_1608Metric | C1, C6 |
| 2 | 1000P 1000p | C_0603_1608Metric | C2, C7 |
| 2 | 10N 10n | C_0603_1608Metric | C3, C8 |
| 10 | 100N 100n | C_0805_2012Metric | C4, C9, C15, C16, C20, C23, C24, C25 +2 |
| 5 | 6.8U 6.8u | C_1812_4532Metric | C5, C10, C17, C18, C19 |
| 3 | 22U 22u | CP_Elec_6.3x7.7 | C11, C12, C21 |
| 3 | 10U 10u | C_0603_1608Metric | C13, C14, C22 |
| 1 | 1k | Potentiometer_Alps_RK09Y11_Single_Horizontal | R1 |
| 1 | 1000R | R_0603_1608Metric | R2 |
| 1 | 274R | R_0805_2012Metric | R3 |
| 1 | 157R | R_0603_1608Metric | R4 |
| 1 | 15R0 | R_0603_1608Metric | R5 |
| 2 | 50R | R_0603_1608Metric | R6, R12 |
| 15 | 10K 10k | R_0603_1608Metric | R7, R8, R9, R11, R13, R14, R15, R21 +7 |
| 1 | 3000R | R_1206_3216Metric | R10 |
| 10 | 0 | R_0603_1608Metric | R16, R17, R18, R19, R20, R29, R30, R31 +2 |
