Kicad project template
About the Kicad project template PCB

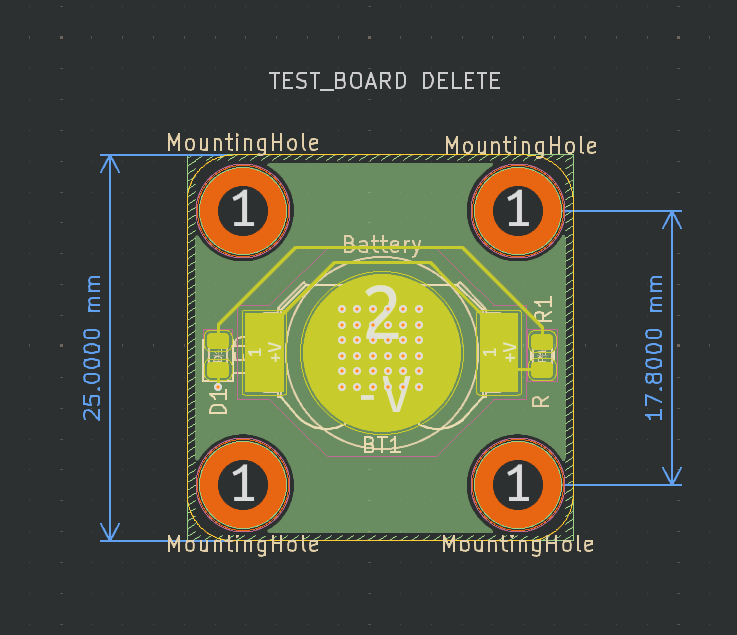

Kicad project template is an open source PCB design by sirlilpanda, published on GitHub. It is a 4-layer board measuring 25 × 25 mm, with 3 components from 3 distinct parts.
By type, the board carries 1 battery holder, 1 diode and 1 resistor.
From the project
a simple template for creating PCB with ci/cd for create docs
a cool table showing the workflow of all the kicad projects. | project_name | DRC | ERC | | ------------ | --- | --- | | template | ❌| ✅ |
This is a simple project template for new kicad projects. This template has some basic setup already completed such as workflows for auto creating all the things you forget when creating a kicad project such as:
This workflow will also run the design rules check on the PCB and schematic to ensure that you upload a working PCB. These reports are uploaded as summaries within the github actions tab. This template has a simple schematic PCB in it (because…
Kicad project template bill of materials (BOM)
3 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Battery | BatteryHolder_LINX_BAT-HLD-012-SMT | BT1 |
| 1 | LED | LED_0805_2012Metric | D1 |
| 1 | R | R_0805_2012Metric | R1 |
