I386sx socket is an open source PCB design by skiselev, published on GitHub. It is a 2-layer board measuring 38.7 × 38.7 mm, with 14 components from 10 distinct parts.
Other key parts include the 80386SX/TI486SXLC/Cx486SLC and NCP1117-3.3. By type, the board carries 5 capacitors, 4 connectors, 3 jumpers and 2 ICs.
From the project

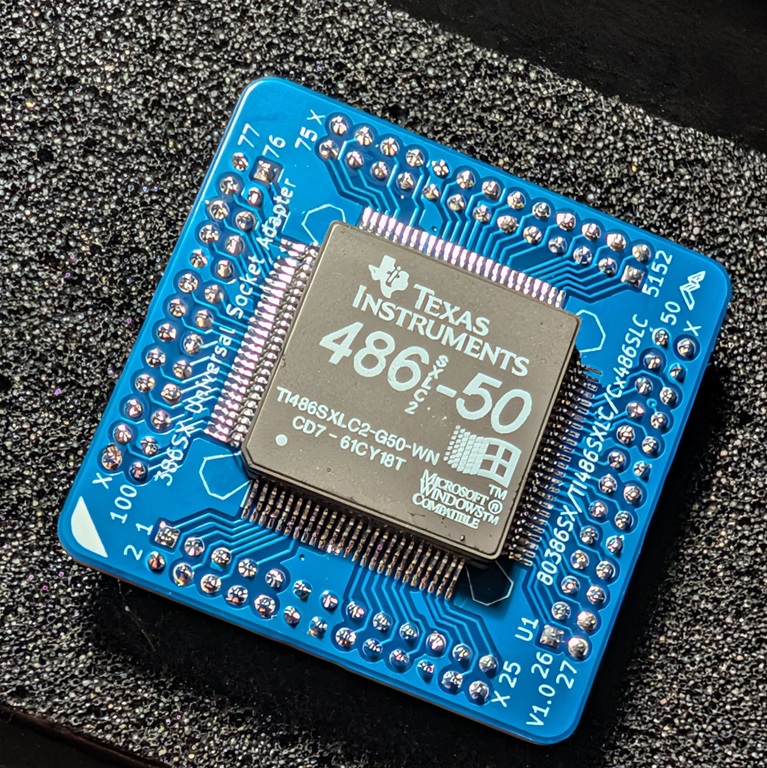

386SX Universal Socket Adapter
Schematic - Version 1.0 PCB Layout - Version 1.0
Position | Description -----------------|-------------------------------------------------------------------------------------------------- Closed (default) | 5V CPU: 5V from the socket is connected to the CPU VCC pins, bypassing the 3.3V voltage regulator Open | 3.3V CPU: CPU VCC pins are connected to the 3.3V voltage regulator
Main components on the I386sx socket
I386sx socket bill of materials (BOM)
14 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 80386SX/TI486SXLC/Cx486SLC | PQFP-100_19x19mm_P0.635mm_i386sx | U1 |
| 1 | NCP1117-3.3 | TO-252-2 | U2 |
| 1 | CPU 1-25 | PinHeader_2x13_P2.00mm_Vertical | J1 |
| 1 | CPU 26-50 | PinHeader_2x13_P2.00mm_Vertical | J2 |
| 1 | CPU 51-75 | PinHeader_2x13_P2.00mm_Vertical | J3 |
| 1 | CPU 76-100 | PinHeader_2x13_P2.00mm_Vertical | J4 |
| 2 | 5V/3.3V | SolderJumper-2_P1.3mm_Bridged2Bar_RoundedPad1.0x1.5mm | JP1, JP2 |
| 1 | 5V/3.3V | SolderJumper-3_P1.3mm_Bridged2Bar12_RoundedPad1.0x1.5mm_NumberLabels | JP3 |
| 3 | 100nF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1, C2, C3 |
| 2 | 10uF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C4, C5 |
