Led star
About the Led star PCB

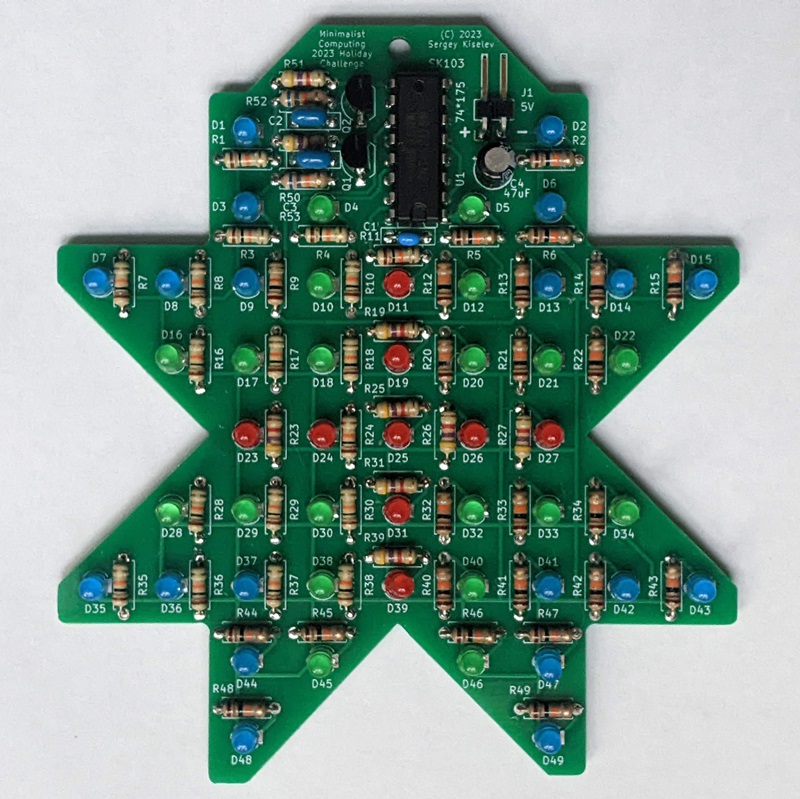

Led star is an open source PCB design by skiselev, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 91.4 × 101.6 mm, with 110 components from 11 distinct parts.
Other key parts include the 74*175. By type, the board carries 53 resistors, 49 diodes, 4 capacitors, 2 transistors, 1 IC and 1 connector.
From the project
Minimalist Computing - Holiday174 Design Contest - Blinking Star
This project is my submission for the Facebook's Minimalist Computing group Holiday Design Contest.
My design is an eight pointed star with animated LEDs. The shape is inspired by the Vintage Computing Christmas Challenge 2022.
The design includes: A multivibrator, implemented using two transistors - Q1 and Q2, four resistors - R50-R53, and two capacitors - C2 and C3. The multivibrator provides the clock for the rest of the circuit. The choosen values of the R52, R53 - 62 k, C2 and C3 - 2.2 uF result in approximately 5.3 Hz frequency. The formula to calculate the frequency is f = 1 /…
Main components on the Led star
Led star bill of materials (BOM)
110 components, 11 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74*175 | DIP-16_W7.62mm | U1 |
| 2 | 2N3904 | TO-92_Inline_Wide | Q1, Q2 |
| 1 | 5V | PinHeader_1x02_P2.54mm_Horizontal | J1 |
| 20 | Blue | LED_D3.0mm_Clear | D1, D2, D3, D6, D7, D8, D9, D13 +12 |
| 20 | Green | LED_D3.0mm_Clear | D4, D5, D10, D12, D16, D17, D18, D20 +12 |
| 9 | Red | LED_D3.0mm_Clear | D11, D19, D23, D24, D25, D26, D27, D31 +1 |
| 1 | 0.1uF | C_Rect_L7.0mm_W2.0mm_P5.00mm | C1 |
| 2 | 2.2uF | C_Rect_L7.0mm_W2.0mm_P5.00mm | C2, C3 |
| 1 | 47uF | CP_Radial_D5.0mm_P2.50mm | C4 |
| 51 | 4.7k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R2, R3, R4, R5, R6, R7, R8 +43 |
| 2 | 62k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R52, R53 |
