About the Up dediprog adapter PCB

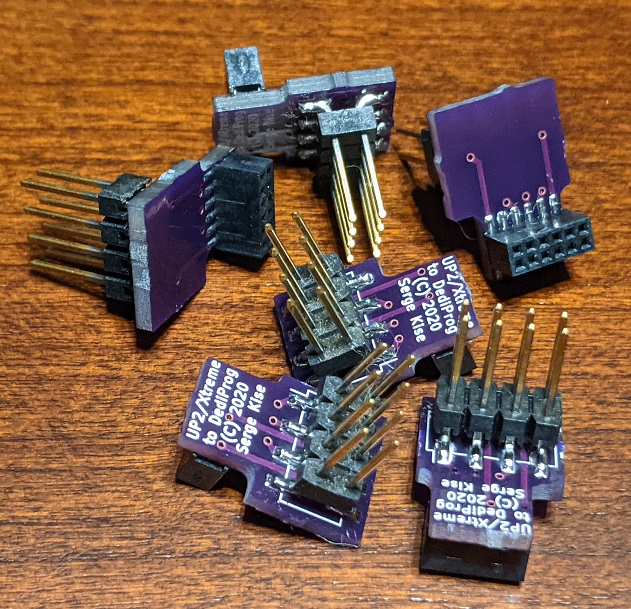

Up dediprog adapter is an open source PCB design by skiselev, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 15.9 × 11.4 mm, with 2 components from 2 distinct parts.
From the project
UP2/UP Xtreme to DediProg SPI Flash Adapter
UP2/Xtreme to DediProg Adapter project on Mouser.com - View and order all components except of the PCB.
UP2/Xtreme to DediProg Adapter project on OSH Park - Order PCBs.
Component type | Reference | Description | Quantity | Possible sources and notes ------------------ | --------- | ------------------------------------------- | -------- | -------------------------- PCB | | UP2/Xtreme to DediProg Adapter PCB | 1 | Order from OSH Park or another PCB manufacturer using provided KiCad or Gerber files Connector | J1 | 2x6 pin socket, 1.27 mm lead pitch | 1 | Mouser 649-221321-00012T4LF Connector…

Up dediprog adapter bill of materials (BOM)
2 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | DediProg | PinHeader_2x04_P2.54mm_Vertical_SMD | J1 |
| 1 | UP | PinSocket_2x06_P1.27mm_Vertical_SMD | J2 |
