About the Example placement PCB
Example placement is an open source PCB design by snhobbs, published on GitHub under the LGPL-3.0 license. It is a 2-layer board measuring 57 × 87 mm, with 17 components from 15 distinct parts.
By type, the board carries 16 test points and 1 connector.
From the project
Auto place components into pcbnew from a centroid file. Useful for maintaining a common board form factor.
A schematic is drawn up with matching reference designators:
The schematic is exported to a PCB which will look like this:

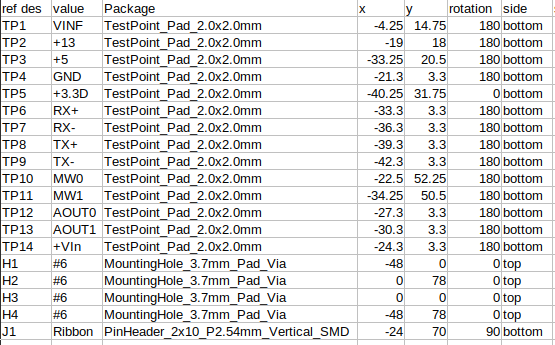

Running the script on this board with this command exports the following board with the components exactly aligned ready for layout. The group can be treated as a footprint, placed where ever is useful. During layout you only have to deal with a single coordinate as the position within the group is locked.

Example placement bill of materials (BOM)
17 components, 15 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_01x20 | PinHeader_2x10_P2.54mm_Vertical_SMD | J1 |
| 1 | VINF | PinHeader_1x01_P2.54mm_Vertical | TP1 |
| 1 | +13 | PinHeader_1x01_P2.54mm_Vertical | TP2 |
| 1 | +5 | PinHeader_1x01_P2.54mm_Vertical | TP3 |
| 3 | GND | PinHeader_1x01_P2.54mm_Vertical | TP4, TP15, TP16 |
| 1 | +3.3D | PinHeader_1x01_P2.54mm_Vertical | TP5 |
| 1 | RX+ | PinHeader_1x01_P2.54mm_Vertical | TP6 |
| 1 | RX- | PinHeader_1x01_P2.54mm_Vertical | TP7 |
| 1 | TX+ | PinHeader_1x01_P2.54mm_Vertical | TP8 |
| 1 | TX- | PinHeader_1x01_P2.54mm_Vertical | TP9 |
| 1 | MW0 | PinHeader_1x01_P2.54mm_Vertical | TP10 |
| 1 | MW1 | PinHeader_1x01_P2.54mm_Vertical | TP11 |
| 1 | AOUT0 | PinHeader_1x01_P2.54mm_Vertical | TP12 |
| 1 | AOUT1 | PinHeader_1x01_P2.54mm_Vertical | TP13 |
| 1 | +VIn | PinHeader_1x01_P2.54mm_Vertical | TP14 |
Example placement design files
The KiCad project lives in the snhobbs/kicad-parts-placer repository on GitHub; these links point at the commit this page was built from.
Example placement: common questions
How big is the Example placement PCB?
The Example placement measures 57 × 87 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Example placement?
17 components, from 15 distinct parts. The full bill of materials is listed on this page.
Where can I download the Example placement design files?
From the snhobbs/kicad-parts-placer repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Example placement design in my own project?
Yes, under the terms of its LGPL-3.0 license, which snhobbs chose for the repository.
