About the EEM2TTL PCB
EEM2TTL is an open source PCB design by snu-quiqcl, published on GitHub. It is a board, with 1 components from 1 distinct parts.
From the project
EEM interface to TTL interface convertor board with direction, and termination select

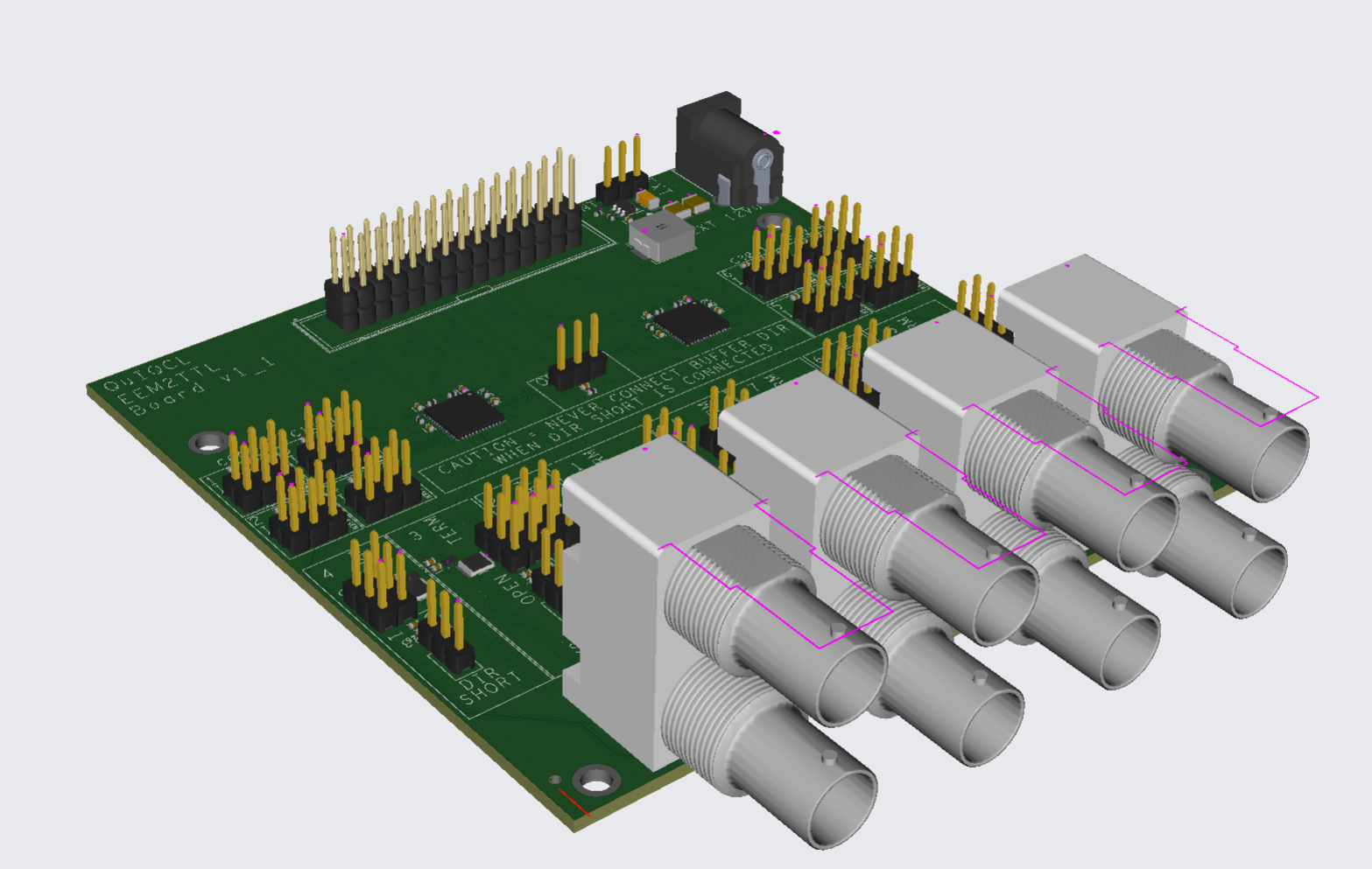

The EEM2TTL PCB board converts electrical signals between the LVDS interface and 3.3V TTL signals. It allows for selectable signal direction and optional 50-ohm termination. Power can be supplied either through the EEM interface or an external 12V power pin.
EEM2TTL bill of materials (BOM)
1 components, 1 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C1005X5R1E104KT000E | C1 |
EEM2TTL design files
The KiCad project lives in the snu-quiqcl/EEM2TTL repository on GitHub; these links point at the commit this page was built from.
EEM2TTL: common questions
How many components are on the EEM2TTL?
1 components, from 1 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the EEM2TTL design files?
From the snu-quiqcl/EEM2TTL repository on GitHub, which has a netlist and the BOM; the links under Design files point to each one.
Can I use the EEM2TTL design in my own project?
The repository has no license, so all rights stay with snu-quiqcl. Use it as a reference, and ask the author before reusing the design.
