12v ac to dc converter
About the 12v ac to dc converter PCB
12v ac to dc converter is an open source PCB design by Srushti-D-Hebbar, published on GitHub under the MIT license. It is a 2-layer board measuring 39 × 32.2 mm, with 10 components from 6 distinct parts.
By type, the board carries 5 diodes, 2 connectors, 2 resistors and 1 capacitor.
From the project
Two-layer KiCad PCB for converting 12V AC to unregulated DC using a full-wave bridge rectifier, capacitor filtering, and LED power indication.
A compact two-layer PCB designed in KiCad for converting a 12V AC input into an unregulated DC output using a full-wave bridge rectifier and capacitor filtering. The board also includes an LED power indicator and a bleeder resistor across the DC output.

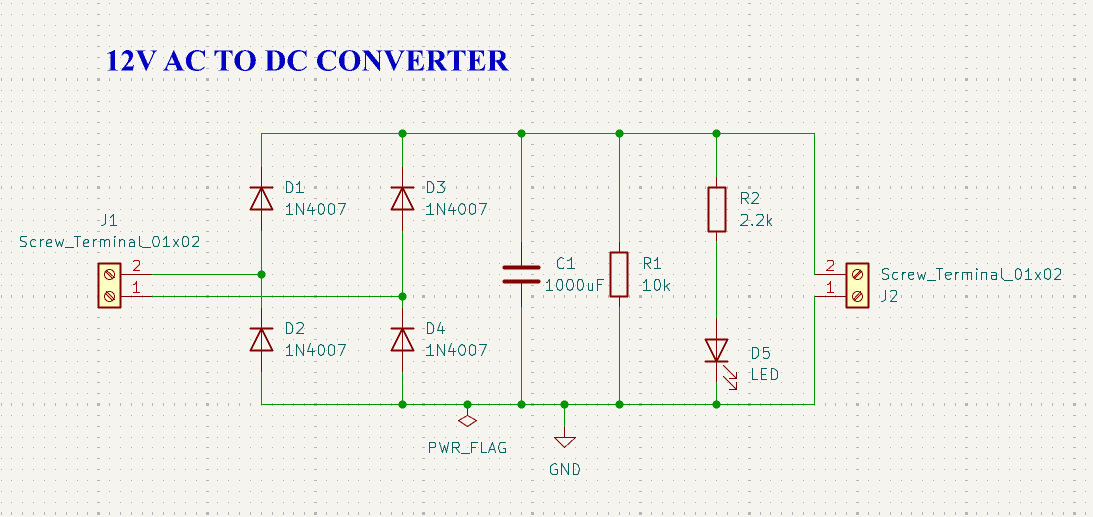

The circuit uses four 1N4007 diodes arranged as a full-wave bridge rectifier to convert the AC input into pulsating DC. A 1000µF electrolytic capacitor smooths the rectified output, while a 10kΩ bleeder resistor provides a discharge path when the input power is removed. An LED with a current-limiting resistor indicates the presence of the DC…
12v ac to dc converter bill of materials (BOM)
10 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | SCREW_TERMINAL_01X02 Screw_Terminal_01x02 | TerminalBlock_Phoenix_MKDS-1,5-2-5.08_1x02_P5.08mm_Horizontal | J1, J2 |
| 4 | 1N4007 | D_DO-41_SOD81_P10.16mm_Horizontal | D1, D2, D3, D4 |
| 1 | LED | LED_D5.0mm | D5 |
| 1 | 1000UF 1000uF | C_Radial_D8.0mm_H11.5mm_P3.50mm | C1 |
| 1 | 10K 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
| 1 | 2.2K 2.2k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2 |
12v ac to dc converter design files
The KiCad project lives in the Srushti-D-Hebbar/12v-ac-to-dc-converter repository on GitHub; these links point at the commit this page was built from.
12v ac to dc converter: common questions
How big is the 12v ac to dc converter PCB?
The 12v ac to dc converter measures 39 × 32.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 12v ac to dc converter?
10 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the 12v ac to dc converter design files?
From the Srushti-D-Hebbar/12v-ac-to-dc-converter repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the 12v ac to dc converter design in my own project?
Yes, under the terms of its MIT license, which Srushti-D-Hebbar chose for the repository.
