5v to-3v3-voltage regulator
About the 5v to-3v3-voltage regulator PCB
5v to-3v3-voltage regulator is an open source PCB design by Srushti-D-Hebbar, published on GitHub under the MIT license. It is a 2-layer board measuring 56.7 × 23.7 mm, with 8 components from 5 distinct parts.
Other key parts include the AMS1117CD-3.3. By type, the board carries 5 capacitors, 2 connectors and 1 IC.
From the project
Complete KiCad PCB design of a 5V to 3.3V linear voltage regulator using AMS1117-3.3, with schematic, two-layer PCB layout, routing, and 0 DRC violations.

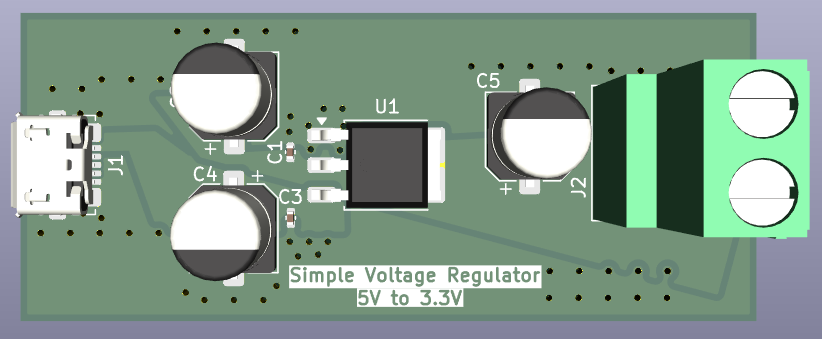

A compact 5V to 3.3V linear voltage regulator board designed in KiCad 10 using the AMS1117-3.3 regulator. The board accepts 5V input through a Micro-USB connector and provides a regulated 3.3V output through a 2-pin screw terminal. The board accepts 5V input through a Micro-USB connector and provides a regulated 3.3V output through a 2-pin screw terminal.
The board converts a 5V input supply to a regulated 3.3V output using the AMS1117-3.3 linear voltage regulator. The design includes input and output filtering capacitors to improve supply stability and reduce voltage fluctuations.
Main components on the 5v to-3v3-voltage regulator
5v to-3v3-voltage regulator bill of materials (BOM)
8 components, 5 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AMS1117CD-3.3 | TO-252-3_TabPin2 | U1 |
| 1 | USB_B_Micro | USB_Micro-B_Molex_47346-0001 | J1 |
| 1 | SCREW_TERMINAL_01X02 Screw_Terminal_01x02 | TerminalBlock_Phoenix_MKDS-3-2-5.08_1x02_P5.08mm_Horizontal | J2 |
| 2 | 100N 100n | C_0402_1005Metric | C1, C3 |
| 3 | 22U 22u | CP_Elec_6.3x7.7 | C2, C4, C5 |
5v to-3v3-voltage regulator design files
The KiCad project lives in the Srushti-D-Hebbar/5v-to-3v3-voltage-regulator repository on GitHub; these links point at the commit this page was built from.
5v to-3v3-voltage regulator: common questions
How big is the 5v to-3v3-voltage regulator PCB?
The 5v to-3v3-voltage regulator measures 56.7 × 23.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 5v to-3v3-voltage regulator?
8 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the 5v to-3v3-voltage regulator design files?
From the Srushti-D-Hebbar/5v-to-3v3-voltage-regulator repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the 5v to-3v3-voltage regulator design in my own project?
Yes, under the terms of its MIT license, which Srushti-D-Hebbar chose for the repository.
