SHINSANWASWITCH
About the SHINSANWASWITCH PCB

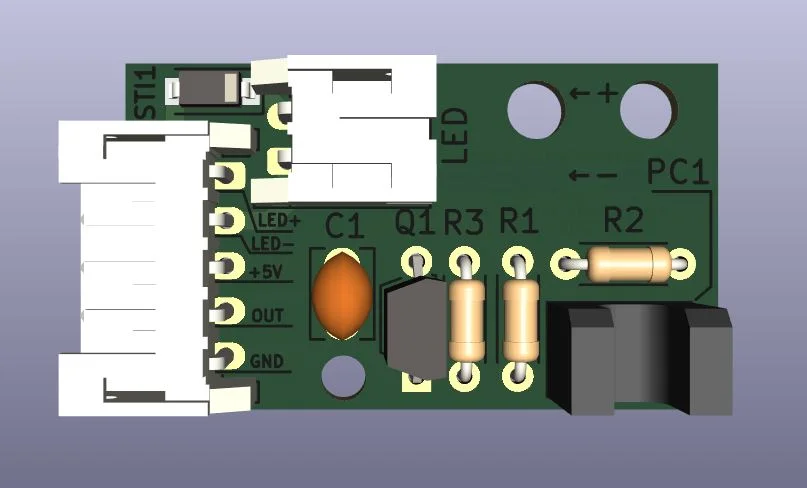

SHINSANWASWITCH is an open source PCB design by steelpuxnastik, published on GitHub under the MIT license. It is a 2-layer board measuring 26.3 × 15.4 mm, with 9 components from 9 distinct parts.
By type, the board carries 3 resistors, 1 transistor, 1 connector, 1 LED and 1 capacitor.
From the project
DIY-friendly photointerrupter microswitch/lamp holder 2-in-1 for generic 100mm Chinese arcade buttons. Enables an OBSA-LHSXF+OBSA-100UMQ-like setup at low cost with generic parts.
DIY-friendly photointerrupter microswitch/lamp holder 2-in-1 for generic 100mm Chinese arcade buttons. Enables an OBSA-LHSXF+OBSA-100UMQ-like setup at low cost with generic parts.
- PCB: 1x shinsanwaswitchPCB 1mm thickness (KiCad 6.99+ (6.99.0-1330-ge68e2e973e), release build required for exporting Gerber files or take Gerber files archive in Gerber/shinsanwaswitch.zip) - C1: Generic 0.1uF through hole ceramic capacitor. - C2: not necessary, but recommended 47uF 6.3v electrolitic capacitor on the power line input (there is no separated place on board for it's installing, so can be soldered…
SHINSANWASWITCH bill of materials (BOM)
9 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 2SC5395 | TO-92S_Wide | Q1 |
| 1 | Conn_01x05_Male | JST_PH_S5B-PH-K_1x05_P2.00mm_Horizontal | J1 |
| 1 | RPI-352 | RPI-352 | PC1 |
| 1 | NSI45020AT1G | D_SOD-123 | STI1 |
| 1 | Conn_01x02_Female | JST_PH_S2B-PH-K_1x02_P2.00mm_Horizontal | LED1 |
| 1 | 0.1uf | C_Disc_D3.8mm_W2.6mm_P2.50mm | C1 |
| 1 | 330 | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R1 |
| 1 | 22K | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R2 |
| 1 | 10K | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R3 |
SHINSANWASWITCH design files
The KiCad project lives in the steelpuxnastik/SHINSANWASWITCH repository on GitHub; these links point at the commit this page was built from.
SHINSANWASWITCH: common questions
How big is the SHINSANWASWITCH PCB?
The SHINSANWASWITCH measures 26.3 × 15.4 mm, has 2 copper layers and is 1 mm thick.
How many components are on the SHINSANWASWITCH?
9 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the SHINSANWASWITCH design files?
From the steelpuxnastik/SHINSANWASWITCH repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the SHINSANWASWITCH design in my own project?
Yes, under the terms of its MIT license, which steelpuxnastik chose for the repository.
