FW16-OCuLink
About the FW16-OCuLink PCB

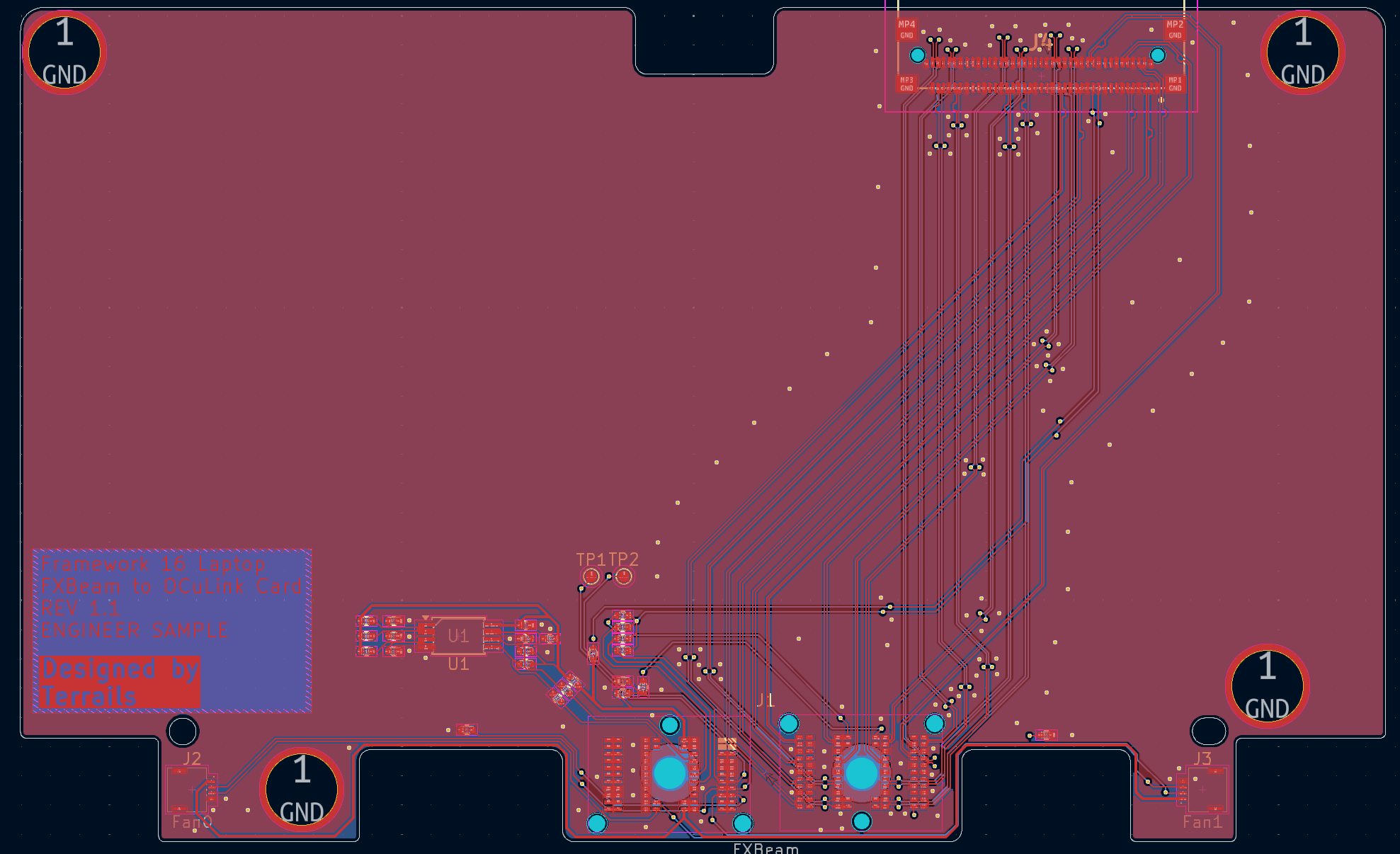

FW16-OCuLink is an open source PCB design by Terrails, published on GitHub under the MIT license. It is a 4-layer board measuring 119 × 73.9 mm, with 47 components from 14 distinct parts.
Other key parts include the BR24G32FVT-3GE2 and TL331LV. By type, the board carries 35 resistors, 5 capacitors, 3 ICs, 2 connectors and 2 switches.
From the project
The schematic in itself is pretty simple. You only need to connect the TX and RX PCIe lanes to the correct pins of the OCuLink connector. And then add components such as the EEPROM that the Embedded Controller (EC) on the laptop reads to configure GPIO pins and bifurcation.
The schematic in itself is pretty simple. You only need to connect the TX and RX PCIe lanes to the correct pins of the OCuLink connector. And then add components such as the EEPROM that the Embedded Controller (EC) on the laptop reads to configure GPIO pins and bifurcation.
A pdf version of the schematic is available here.
The EEPROM's address pins are all connected to the ground as that is the address the EC expects and by default the write protection (WP) is disabled by being connected to GND to allow writing data to it.
Main components on the FW16-OCuLink
FW16-OCuLink bill of materials (BOM)
47 components, 14 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | BR24G32FVT-3GE2 | TSSOP-8_4.4x3mm_P0.65mm | U1 |
| 2 | TL331LV | SOT-23-5 | U2, U3 |
| 1 | USB_A | 87583-2010BLF | J5 |
| 1 | x8 NPIO | Nano-Pitch-173162-0132 | J6 |
| 1 | SW_DPDT_x2 | SSSS820101 | SW1 |
| 1 | SW_DIP_x02 | SW_DIP_SPSTx02_Slide_Copal_CHS-02B_W7.62mm_P1.27mm | SW2 |
| 5 | 0.1U | C_0402_1005Metric | C1, C2, C3, C4, C5 |
| 2 | 330K | R_0402_1005Metric | R1, R2 |
| 16 | 0R | R_0402_1005Metric | R3, R4, R5, R7, R8, R10, R12, R13 +8 |
| 2 | 4.7K | R_0402_1005Metric | R6, R9 |
| 5 | 100K | R_0402_1005Metric | R11, R24, R25, R29, R32 |
| 6 | 1K | R_0402_1005Metric | R16, R17, R19, R21, R28, R31 |
| 2 | 10K | R_0402_1005Metric | R18, R20 |
| 2 | 47K | R_0402_1005Metric | R26, R27 |
FW16-OCuLink design files
The KiCad project lives in the Terrails/FW16-OCuLink repository on GitHub; these links point at the commit this page was built from.
- Layoutfw16_oculink8i.kicad_pcb
- Schematicfw16_oculink8i.kicad_sch
FW16-OCuLink: common questions
How big is the FW16-OCuLink PCB?
The FW16-OCuLink measures 119 × 73.9 mm, has 4 copper layers and is 1.1382 mm thick.
How many components are on the FW16-OCuLink?
47 components, from 14 distinct parts. The full bill of materials is listed on this page.
Where can I download the FW16-OCuLink design files?
From the Terrails/FW16-OCuLink repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the FW16-OCuLink design in my own project?
Yes, under the terms of its MIT license, which Terrails chose for the repository.
