Abductor
About the Abductor PCB
Abductor is an open source PCB design by therealdreg, published on GitHub under the MIT license. It is a 6-layer board measuring 54 × 67 mm, with 2 components from 2 distinct parts.
Other key parts include the PCIE-064-02-F-D-TH. By type, the board carries 1 IC and 1 connector.
From the project

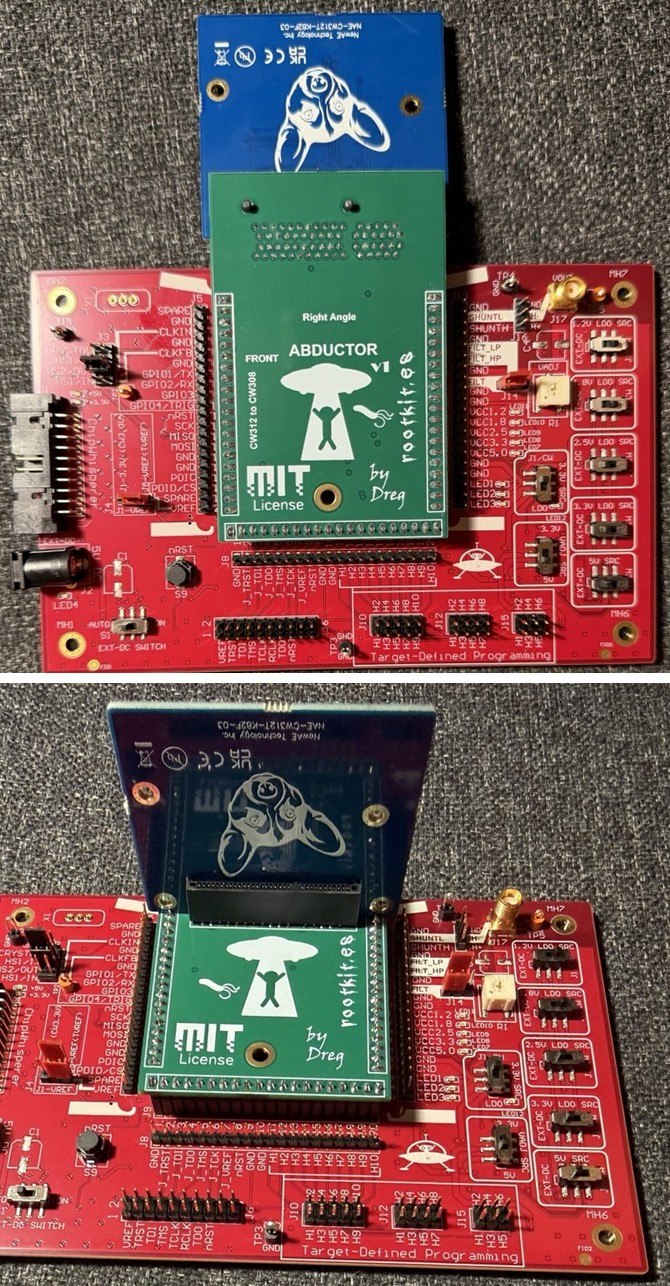

Adapter board that lets CW312-format targets run on the ChipWhisperer CW308 UFO, bridging the UFO target socket to a CW312 card-edge slot.
An adapter board that lets you run CW312-format (card-edge) targets on the ChipWhisperer CW308 UFO. Discussion and questions on the NewAE forum: https://forum.newae.com/t/abductor-a-cw312-to-cw308-ufo-adapter-board/6514
There are two versions, one with a right-angle connector and one without. A dedicated target board designed for one specific use case is usually preferable; when that is not practical, or simply not possible, this adapter is a low-cost alternative.
Main components on the Abductor
Abductor bill of materials (BOM)
2 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PCIE-064-02-F-D-TH SAMTEC | CONN-TH_64P-P2.00_PCIE-064-02-F-D-TH | U1 |
| 1 | CW308_TBOARD CW308_TARGETCON | CW308_TBOARD_CONN | J1 |
Abductor design files
The KiCad project lives in the therealdreg/abductor repository on GitHub; these links point at the commit this page was built from.
Abductor: common questions
How big is the Abductor PCB?
The Abductor measures 54 × 67 mm, has 6 copper layers and is 1.5886 mm thick.
How many components are on the Abductor?
2 components, from 2 distinct parts. The full bill of materials is listed on this page.
Where can I download the Abductor design files?
From the therealdreg/abductor repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Abductor design in my own project?
Yes, under the terms of its MIT license, which therealdreg chose for the repository.
