CW312T Template Kicad Dreg Port

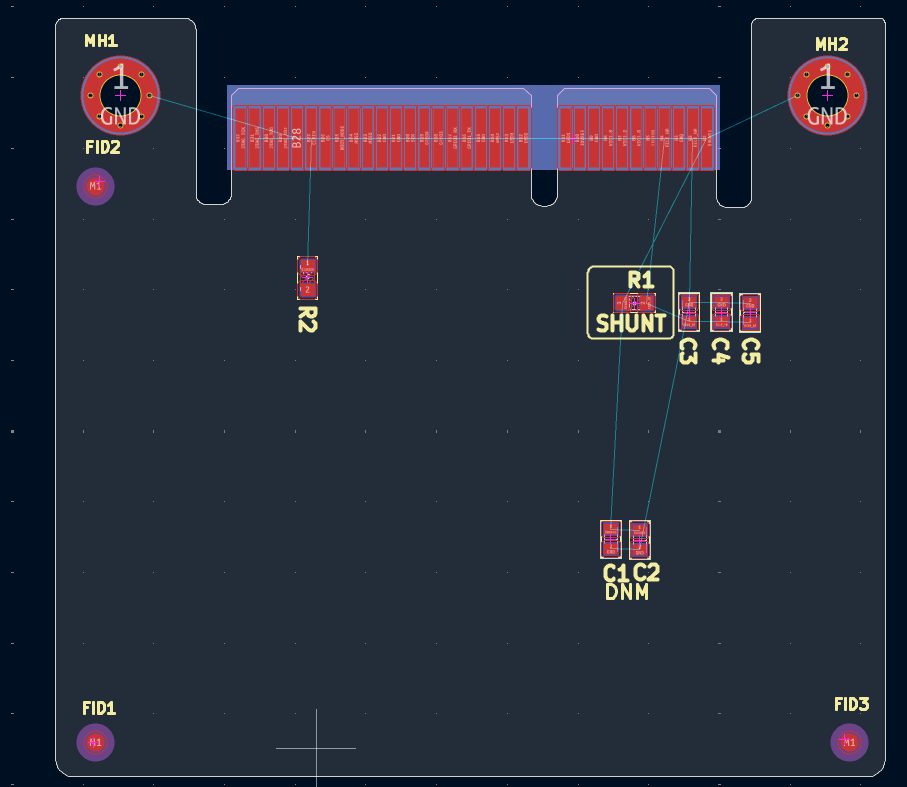

About the CW312T Template Kicad Dreg Port PCB
CW312T Template Kicad Dreg Port is an open source PCB design by therealdreg, published on GitHub under the MIT license. It is a 2-layer board measuring 58.7 × 53.7 mm, with 13 components from 7 distinct parts.
By type, the board carries 5 capacitors, 2 resistors and 1 connector.
From the project
chipwhisper CW312T template for KiCad & EASYEDA PRO
chipwhisper CW312T template for KiCad with Dreg port (and easyeda file to import)
- Thickness: 1.6 mm (0.062"). Required by the CW312 card-edge connector (Samtec MECF), and it's the default thickness anyway, so no extra cost. - Edge fingers: ENIG + "gold fingers" (solder mask removed over the pads) is enough for a target plugged in/out a few dozen times. Note JLCPCB only does "gold fingers" with ENIG selected, this is NOT real electroplated hard gold. Use real hard gold (e.g. PCBWay) only if you need hundreds/thousands of insertions. - Bevel/chamfer (30°): JLCPCB won't bevel boards smaller…
CW312T Template Kicad Dreg Port bill of materials (BOM)
13 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PCIeX4-GF-2D-1000-1K-O64 | PCIeX4-GF-2D-1000-1K-O64 | P1 |
| 3 | FIDU-ROUND-1.0MM | FIDU-ROUND-1.0mm | FID1, FID2, FID3 |
| 2 | MOUNT_#4_TIGHT 4-40 MH, Tight Fit | MOUNT_#4_TIGHT | MH1, MH2 |
| 2 | DNM | CAPC0603_M | C1, C2 |
| 2 | 100n | CAPC0603_M | C3, C4 |
| 1 | 2u2 | CAPC0603_M | C5 |
| 2 | 10R | RESC1608X55N | R1, R2 |
CW312T Template Kicad Dreg Port design files
The KiCad project lives in the therealdreg/CW312T_Template_Kicad_Dreg_Port repository on GitHub; these links point at the commit this page was built from.
CW312T Template Kicad Dreg Port: common questions
How big is the CW312T Template Kicad Dreg Port PCB?
The CW312T Template Kicad Dreg Port measures 58.7 × 53.7 mm, has 2 copper layers and is 0.41116 mm thick.
How many components are on the CW312T Template Kicad Dreg Port?
13 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the CW312T Template Kicad Dreg Port design files?
From the therealdreg/CW312T_Template_Kicad_Dreg_Port repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the CW312T Template Kicad Dreg Port design in my own project?
Yes, under the terms of its MIT license, which therealdreg chose for the repository.
