SNES-Gamepads to-SPI-Adaptor
About the SNES-Gamepads to-SPI-Adaptor PCB
SNES-Gamepads to-SPI-Adaptor is an open source PCB design by thgrass, published on GitHub under the MIT license. It is a 2-layer board measuring 51.1 × 40.4 mm, with 4 components from 3 distinct parts.
From the project

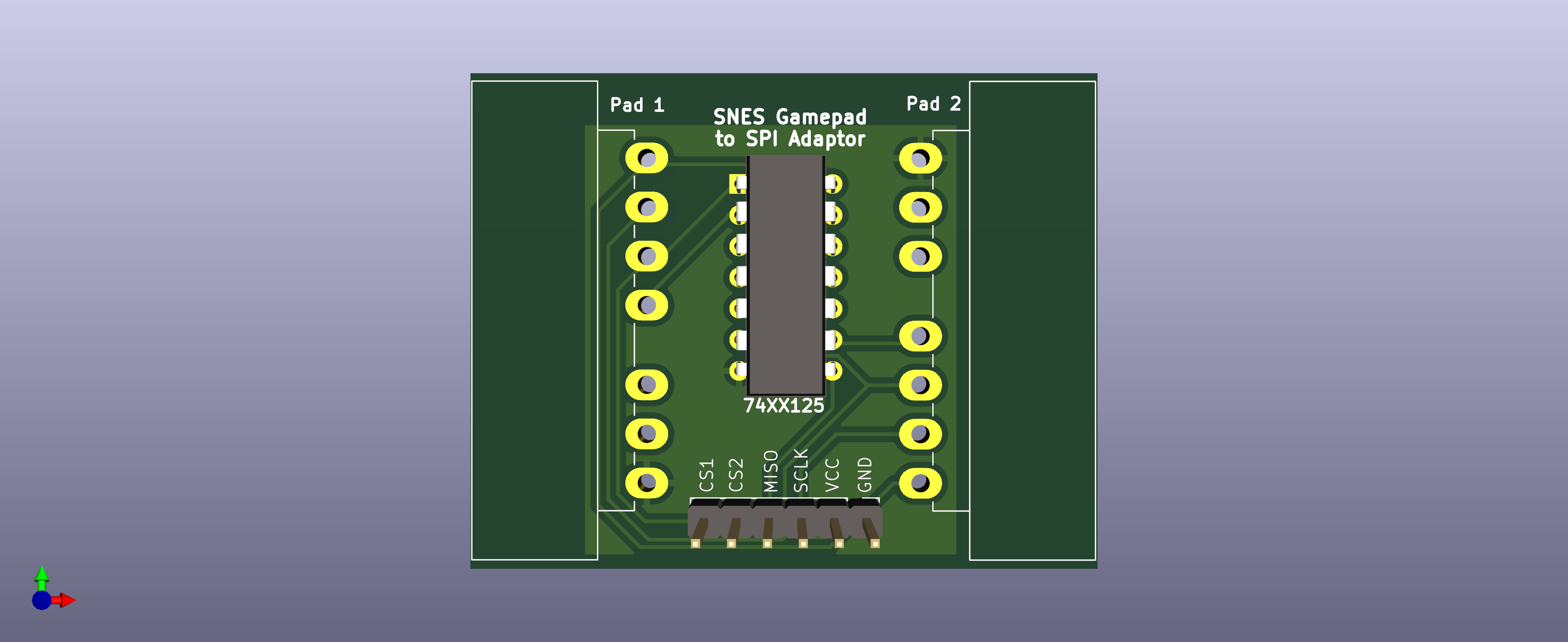

A PCB that converts two SNES controllers to real SPI devices.
KiCad-Libraries for the SNES controller port have been taken from here: https://github.com/pdaehne/SNES-Userport-Adapter
SNES-Gamepads to-SPI-Adaptor bill of materials (BOM)
4 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | SNES Controller Socket | SNES_Controller_Socket | J1, J3 |
| 1 | SPI_generic | PinHeader_1x06_P2.54mm_Vertical | J2 |
| 1 | 74AHCT125 | DIP-14_W7.62mm | 74XX125 |
SNES-Gamepads to-SPI-Adaptor design files
The KiCad project lives in the thgrass/SNES-Gamepads-to-SPI-Adaptor repository on GitHub; these links point at the commit this page was built from.
- LayoutSNES_SPI_Adaptor.kicad_pcb
- SchematicSNES_SPI_Adaptor.kicad_sch
SNES-Gamepads to-SPI-Adaptor: common questions
How big is the SNES-Gamepads to-SPI-Adaptor PCB?
The SNES-Gamepads to-SPI-Adaptor measures 51.1 × 40.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SNES-Gamepads to-SPI-Adaptor?
4 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the SNES-Gamepads to-SPI-Adaptor design files?
From the thgrass/SNES-Gamepads-to-SPI-Adaptor repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the SNES-Gamepads to-SPI-Adaptor design in my own project?
Yes, under the terms of its MIT license, which thgrass chose for the repository.
