Neogeo controller tester
About the Neogeo controller tester PCB
Neogeo controller tester is an open source PCB design by turmoni, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 51.6 × 44.5 mm, with 30 components from 6 distinct parts.
By type, the board carries 16 resistors, 12 diodes and 2 connectors.
From the project

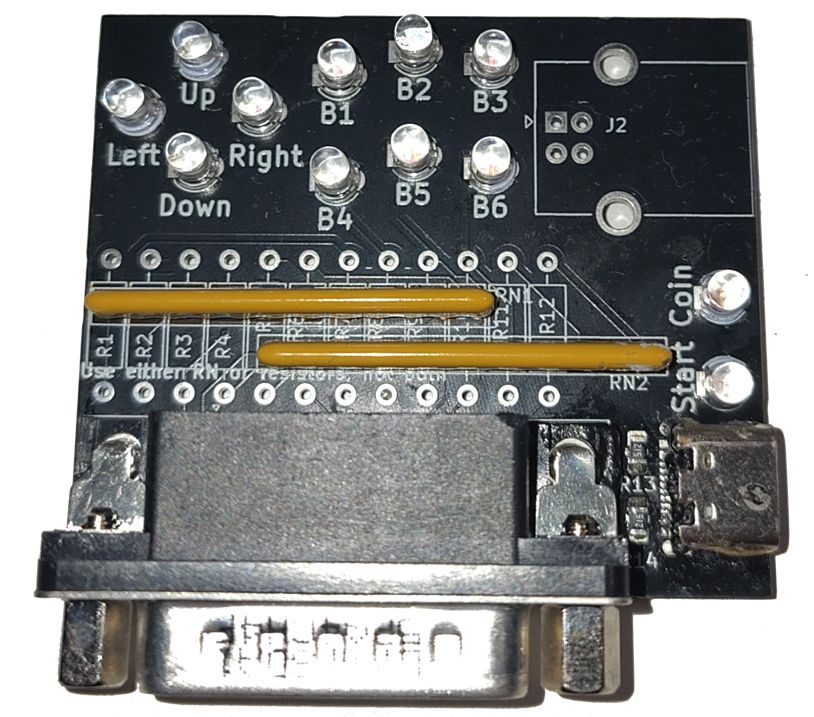

A simple board that tests the pins of a NeoGeo/Supergun-compatible DA15 controller
A simple board that tests the pins of a NeoGeo/Supergun-compatible DA15 controller. Ultimately this is a slightly fancy way of getting 5V through a bunch of LEDs, which will illuminate when the corresponding button is pressed.
I created this for my own use with building my 9pin2supergun project, as a simple visual way to check whether my hardware and code were working properly, but I can imagine it being useful to other people.
Neogeo controller tester bill of materials (BOM)
30 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | USB_B | USB_B_OST_USB-B1HSxx_Horizontal | J2 |
| 1 | UJ20-C-H-C-4-SMT-TR | CUI_UJ20-C-H-C-4-SMT-TR | J3 |
| 12 | LED | LED_D3.0mm | D1, D2, D3, D4, D5, D6, D7, D8 +4 |
| 12 | 150R | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1, R2, R3, R4, R5, R6, R7, R8 +4 |
| 2 | 5.1k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R13, R14 |
| 2 | R_Pack06_SIP | R_Array_SIP12 | RN1, RN2 |
Neogeo controller tester design files
The KiCad project lives in the turmoni/neogeo_controller_tester repository on GitHub; these links point at the commit this page was built from.
Neogeo controller tester: common questions
How big is the Neogeo controller tester PCB?
The Neogeo controller tester measures 51.6 × 44.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Neogeo controller tester?
30 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the Neogeo controller tester design files?
From the turmoni/neogeo_controller_tester repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Neogeo controller tester design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which turmoni chose for the repository.
