Heart ariella
About the Heart ariella PCB
Heart ariella is an open source PCB design by urish, published on GitHub. It is a 2-layer board measuring 29.8 × 25.4 mm, with 9 components from 5 distinct parts.
By type, the board carries 5 diodes, 1 battery holder, 1 switch and 1 resistor.
From the project

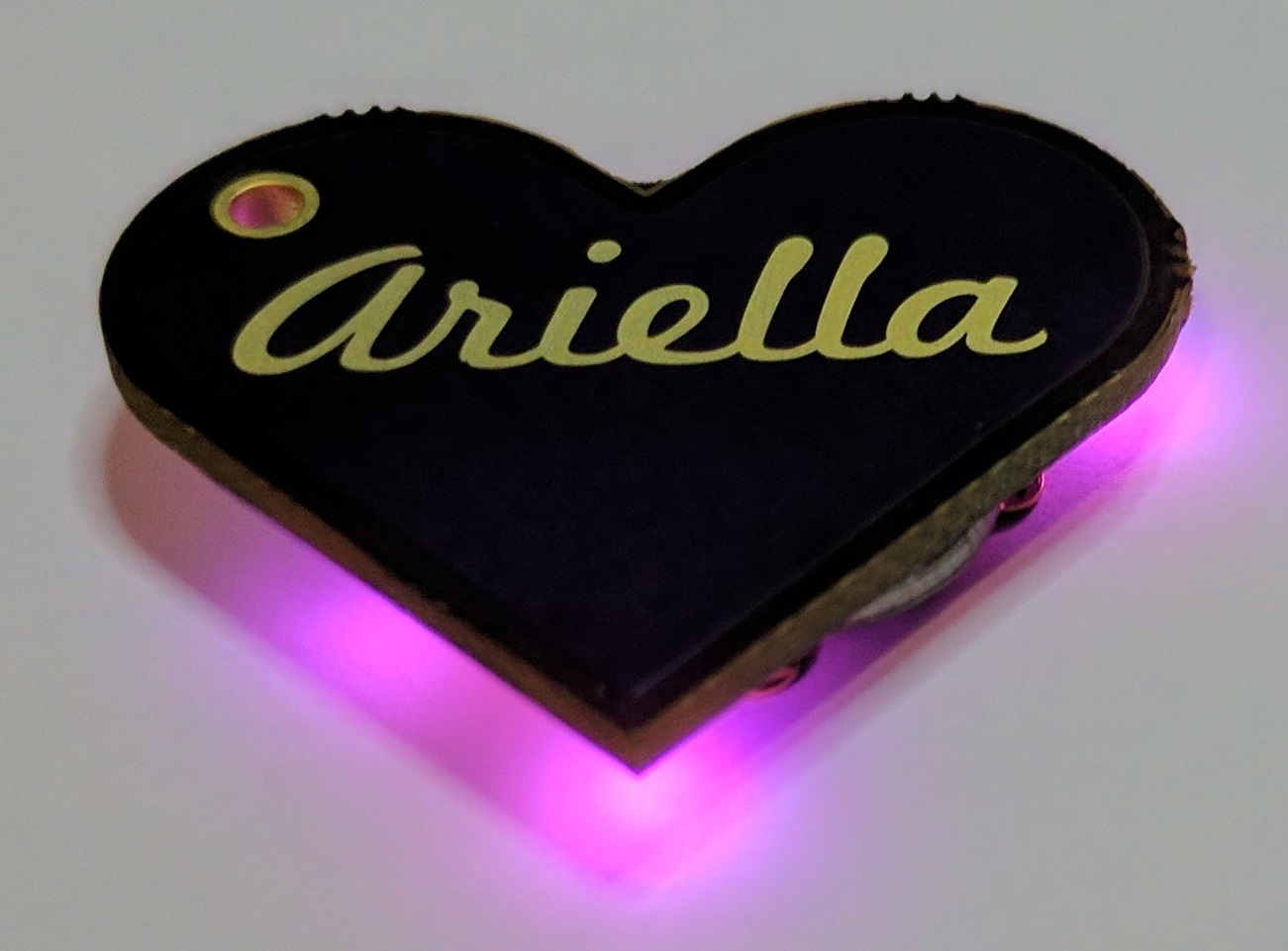

Heart-shaped flashlight PCB for Ariella
A Practical Guide to Designing PCB Art - A blog post explaining how I designed and manufactured the board
The project files are available either in KiCad or Eagle format. The boards were manufactured by OSH Park.
Heart ariella bill of materials (BOM)
9 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Battery_Cell | BATCONN_12MM | BT1 |
| 1 | SW_SPDT | AYZ0202 | SW1 |
| 1 | G*** | heart | svg2mod |
| 5 | LED | LED_0603 | D1, D2, D3, D4, D5 |
| 1 | 330 | R_0603 | R1 |
Heart ariella design files
The KiCad project lives in the urish/heart-ariella repository on GitHub; these links point at the commit this page was built from.
Heart ariella: common questions
How big is the Heart ariella PCB?
The Heart ariella measures 29.8 × 25.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Heart ariella?
9 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the Heart ariella design files?
From the urish/heart-ariella repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Heart ariella design in my own project?
The repository has no license, so all rights stay with urish. Use it as a reference, and ask the author before reusing the design.
