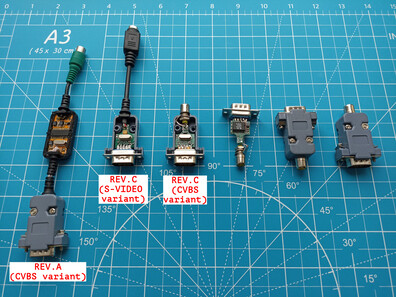

Rgb2svideo
About the Rgb2svideo PCB
Rgb2svideo is an open source PCB design by UzixLS, published on GitHub under the MIT license. It is a 2-layer board measuring 37.2 × 16.4 mm, with 38 components from 21 distinct parts.
Other key parts include the BH7236AF or KA2198BD. By type, the board carries 20 capacitors, 13 resistors, 2 inductors, 1 IC, 1 transistor and 1 crystal.
From the project
Converts RGB + Sync analog signal to S-Video (and also Composite).
This device converts 15KHz RGB + Sync analog video signal to S-Video or CVBS (composite) signal. Both PAL and NTSC are supported (you should choose one at build).
release/pcb.rev.C.pdf - schematic and bill of materials release/bom_interactive.rev.C.html - interactive BOM release/gerber.rev.C.zip - fabrication files
release/pcb.rev.A2.pdf - schematic and bill of materials release/bom_interactive.rev.A2.html - interactive BOM release/gerber.rev.A2.zip - fabrication files
Main components on the Rgb2svideo
Rgb2svideo bill of materials (BOM)
38 components, 21 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | BH7236AF or KA2198BD | SOP-24_5.0x15.4mm_P1.27mm | U1 |
| 1 | BC847 | SOT-23 | Q1 |
| 1 | 4.433619MHz | Crystal_HC49-4H_Vertical | Y1 |
| 1 | * | L_1210_3225Metric_Pad1.42x2.65mm_HandSolder | L1 |
| 1 | BLM21AG601SN | L_0805_2012Metric_Pad1.15x1.40mm_HandSolder | L2 |
| 3 | 220u | CP_EIA-3528-12_Kemet-T | C1, C6, C15 |
| 4 | 100n | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C2, C3, C5, C12 |
| 1 | 470n | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C4 |
| 3 | * | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C7, C10, C20 |
| 2 | 47p | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C8, C11 |
| 1 | * | CP_EIA-3216-18_Kemet-A_Pad1.58x1.35mm_HandSolder | C9 |
| 1 | 150p | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C13 |
| 1 | 100p | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C14 |
| 2 | 10n | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C16, C17 |
| 2 | 10u | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C18, C19 |
| 6 | 75 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R2, R3, R4, R5, R6 |
| 1 | 2.2k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R7 |
| 2 | * | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R8, R9 |
| 1 | 510 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R10 |
| 2 | 10k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R11, R12 |
Show 1 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 1.5k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R13 |
Rgb2svideo design files
The KiCad project lives in the UzixLS/rgb2svideo repository on GitHub; these links point at the commit this page was built from.
Rgb2svideo: common questions
How big is the Rgb2svideo PCB?
The Rgb2svideo measures 37.2 × 16.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Rgb2svideo?
38 components, from 21 distinct parts. The full bill of materials is listed on this page.
Where can I download the Rgb2svideo design files?
From the UzixLS/rgb2svideo repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Rgb2svideo design in my own project?
Yes, under the terms of its MIT license, which UzixLS chose for the repository.
