SV18W-6S6P-2323
About the SV18W-6S6P-2323 PCB
SV18W-6S6P-2323 is an open source PCB design by wallalex0, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 100 × 15 mm, with 36 components from 1 distinct parts.
From the project

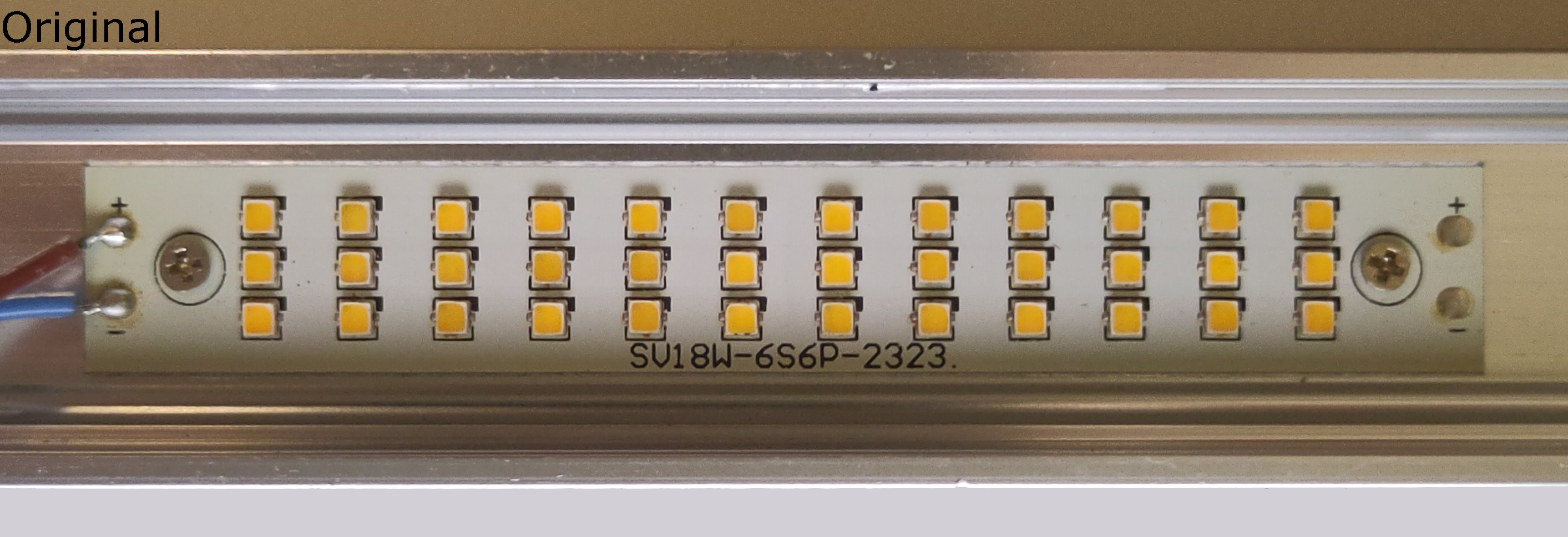

KiCad PCB repository for a led arranged aluminium pcb. Originally named SV18W-6S6P-2323.
This is a KiCad PCB repository for a led arranged aluminium pcb.
This PCB is for a led lamp needing constant current of 1A and variable voltage around 14V to 21V.
Like its title suggest it consists of leds mounted in a 6 series times 6 parallel configuration.
I made this PCB, because on the net I did not find a applicable off the shelf replacement pcb, after one of these elements broke in my lamp.
SV18W-6S6P-2323 bill of materials (BOM)
36 components, 1 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 36 | GW JTLPS1.EM-KKLL-XX57-1 LED OSRAM(欧司朗) | LED-SMD_L3.5-W2.8_GWJTLPS1.EM-KLLL-XX55-1 | D1, D2, D3, D4, D5, D6, D7, D8 +28 |
SV18W-6S6P-2323 design files
The KiCad project lives in the wallalex0/SV18W-6S6P-2323 repository on GitHub; these links point at the commit this page was built from.
- LayoutSV18W-6S6P-2323.kicad_pcb
- SchematicSV18W-6S6P-2323.kicad_sch
SV18W-6S6P-2323: common questions
How big is the SV18W-6S6P-2323 PCB?
The SV18W-6S6P-2323 measures 100 × 15 mm, has 2 copper layers and is 1.2 mm thick.
How many components are on the SV18W-6S6P-2323?
36 components, from 1 distinct parts. The full bill of materials is listed on this page.
Where can I download the SV18W-6S6P-2323 design files?
From the wallalex0/SV18W-6S6P-2323 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the SV18W-6S6P-2323 design in my own project?
Yes, under the terms of its GPL-3.0 license, which wallalex0 chose for the repository.
