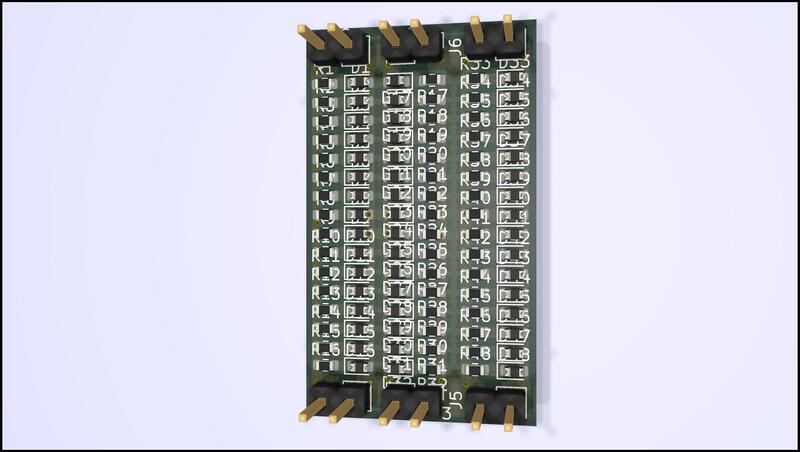

WTC PROJECT-LED PANEL
About the WTC PROJECT-LED PANEL PCB
WTC PROJECT-LED PANEL is an open source PCB design by WingTechCorner, published on GitHub. It is a 2-layer board measuring 21.1 × 35.9 mm, with 102 components from 3 distinct parts.
By type, the board carries 48 diodes, 48 resistors and 6 connectors.
From the project
A small LED panel with three rows that can be powered by 3v3. Common ground between the rows.
A small LED panel. Designed with KiCad and files generated and placed into MANUFACTURING for production via JLCPCB.
0603 white led with LSCS part numbers in the CSV and schematic files. 0603 150-ohm resistors ( limits current to around 15-20ma when powered at 3v3 ) 3 x strips of 16 LED/RESISTOR pairs, in two groups. Common GND 2 x 3v3 groupings headers at head and tail of board to allow for chaining. * 3V3 and GND paths run along front and back.
WTC PROJECT-LED PANEL bill of materials (BOM)
102 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 6 | Conn_01x02_Male | PinHeader_1x02_P2.54mm_Vertical | J1, J2, J3, J4, J5, J6 |
| 48 | C2290 WHITE_LED | D_0603_1608Metric | D1, D2, D3, D4, D5, D6, D7, D8 +40 |
| 48 | C22808 150Ohms-±1%-1_10W-0603 | R_0603_1608Metric | R1, R2, R3, R4, R5, R6, R7, R8 +40 |
WTC PROJECT-LED PANEL design files
The KiCad project lives in the WingTechCorner/WTC_PROJECT-LED_PANEL repository on GitHub; these links point at the commit this page was built from.
WTC PROJECT-LED PANEL: common questions
How big is the WTC PROJECT-LED PANEL PCB?
The WTC PROJECT-LED PANEL measures 21.1 × 35.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the WTC PROJECT-LED PANEL?
102 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the WTC PROJECT-LED PANEL design files?
From the WingTechCorner/WTC_PROJECT-LED_PANEL repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the WTC PROJECT-LED PANEL design in my own project?
The repository has no license, so all rights stay with WingTechCorner. Use it as a reference, and ask the author before reusing the design.
