Super-EGA-120
About the Super-EGA-120 PCB

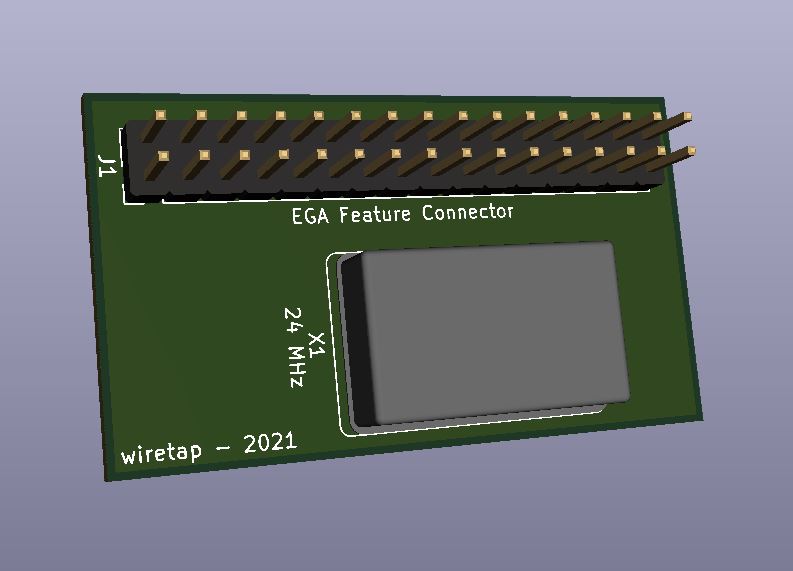

Super-EGA-120 is an open source PCB design by wiretap-retro, published on GitHub. It is a 2-layer board measuring 45.5 × 25.9 mm, with 2 components from 2 distinct parts.
By type, the board carries 1 crystal and 1 connector.
From the project
A project from PC Magazine (September 16, 1986) to enable older EGA video cards to use 120 column mode.
Super-EGA-120 bill of materials (BOM)
2 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 26MHz Oscillator | Oscillator_DIP-14 | X1 |
| 1 | EGA Feature | PinHeader_2x16_P2.54mm_Vertical | J1 |
Super-EGA-120 design files
The KiCad project lives in the wiretap-retro/Super-EGA-120 repository on GitHub; these links point at the commit this page was built from.
Super-EGA-120: common questions
How big is the Super-EGA-120 PCB?
The Super-EGA-120 measures 45.5 × 25.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Super-EGA-120?
2 components, from 2 distinct parts. The full bill of materials is listed on this page.
Where can I download the Super-EGA-120 design files?
From the wiretap-retro/Super-EGA-120 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Super-EGA-120 design in my own project?
The repository has no license, so all rights stay with wiretap-retro. Use it as a reference, and ask the author before reusing the design.
