Nfc led
About the Nfc led PCB
Nfc led is an open source PCB design by wyolum, published on GitHub. It is a 2-layer board measuring 11 × 16.5 mm, with 3 components from 3 distinct parts.
By type, the board carries 1 diode, 1 inductor and 1 capacitor.
From the project

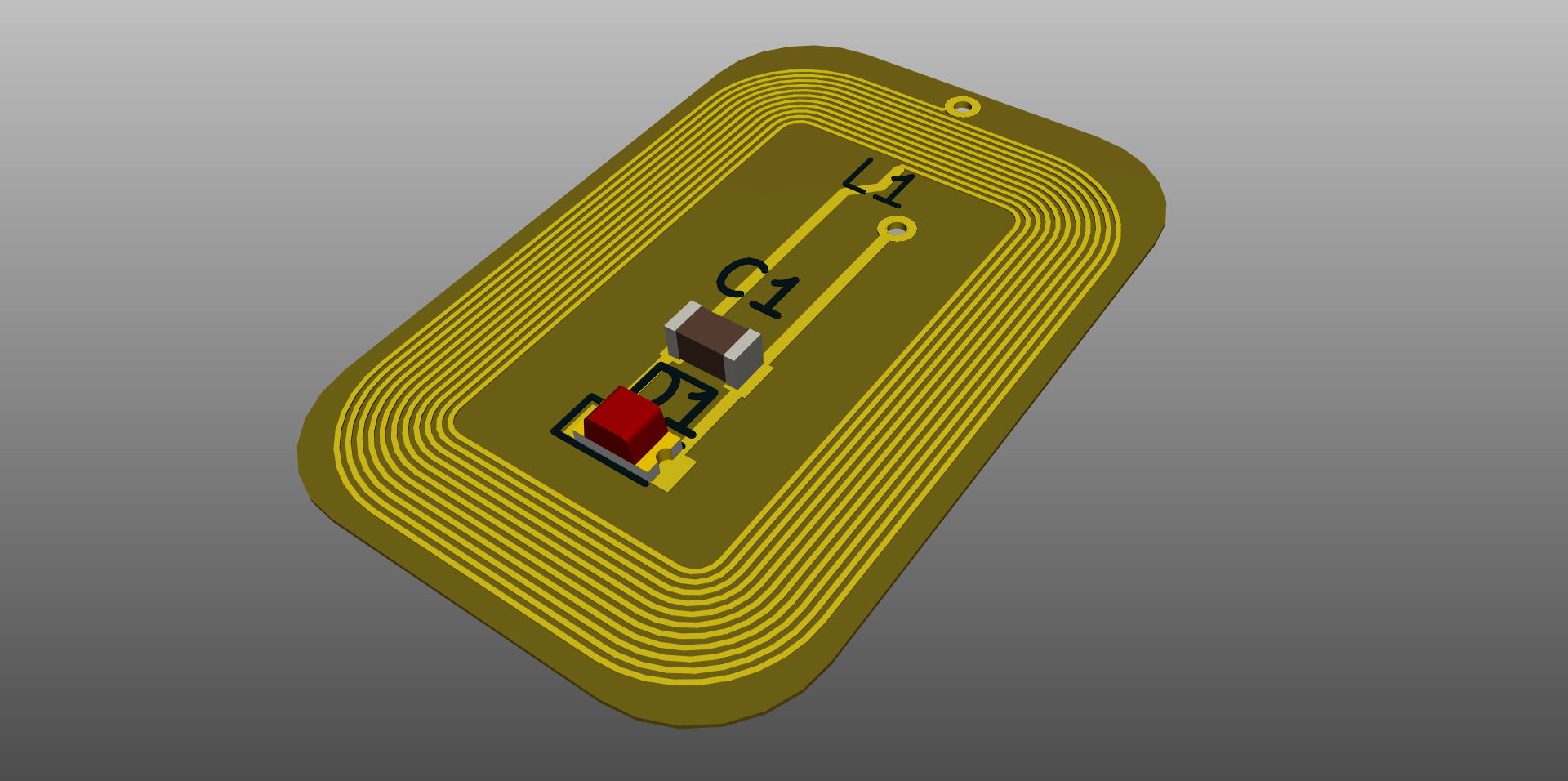

LED that lights up when energized by a NFC signal (or is supposed to, at least, until this is proven to work).
[CERN Open Hardware Licence v1.2 ]:http://www.ohwr.org/attachments/2388/cernohlv12.txt
Nfc led bill of materials (BOM)
3 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LED_ALT | LED_0603 | D1 |
| 1 | INDUCTOR | ant_nfc | L1 |
| 1 | C | L_0603 | C1 |
Nfc led design files
The KiCad project lives in the wyolum/nfc_led repository on GitHub; these links point at the commit this page was built from.
- Layoutnfc_led.kicad_pcb
Nfc led: common questions
How big is the Nfc led PCB?
The Nfc led measures 11 × 16.5 mm, has 2 copper layers and is 0.1 mm thick.
How many components are on the Nfc led?
3 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the Nfc led design files?
From the wyolum/nfc_led repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Nfc led design in my own project?
The repository has no license, so all rights stay with wyolum. Use it as a reference, and ask the author before reusing the design.
