Infrared Gel Universal Dispenser
About the Infrared Gel Universal Dispenser PCB
Infrared Gel Universal Dispenser is an open source PCB design by abdontroche, published on GitHub under the CC0-1.0 license. It is a 2-layer board measuring 76.4 × 63.3 mm, with 8 components from 7 distinct parts.
Other key parts include the LM358P. By type, the board carries 3 diodes, 2 connectors, 1 IC and 1 transistor.
From the project
This project pretends to be a open source device that could help people fighting against the COVID-19.
Dear Members: This group is made up of students, professors and graduates of the FP-UNA and its objective is to think, formulate and carry out concrete actions in the face of this adverse situation that we are experiencing in the country with respect to the COVID-19 coronavirus. We started with people from the electronics and computing area but we are not closed in any way. The work is voluntary and non-profit. On the shoulders of giants we will better face adversities.

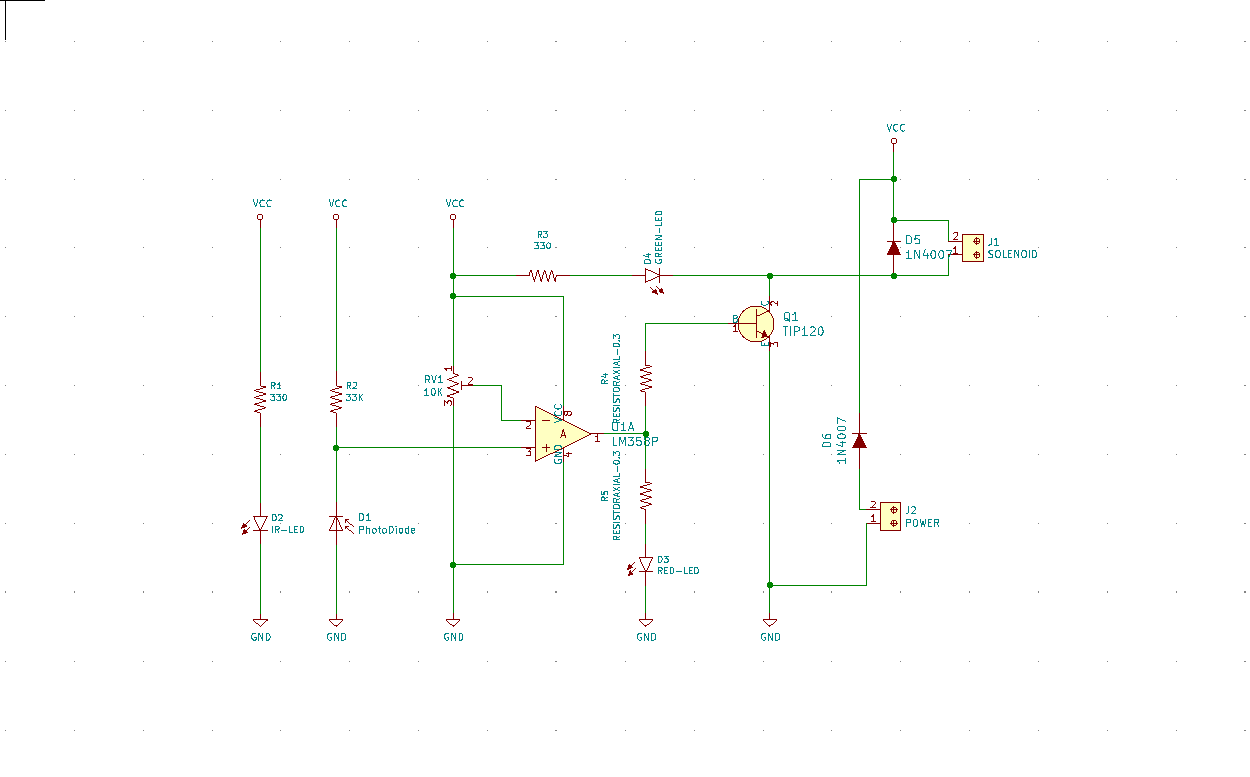

Main components on the Infrared Gel Universal Dispenser
Infrared Gel Universal Dispenser bill of materials (BOM)
8 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM358P | DIP-8_W7.62mm | U1 |
| 1 | TIP120 | TO-220-3 | Q1 |
| 1 | SOLENOID | Term_Block_1x2_P5mm | J1 |
| 1 | POWER | Term_Block_1x2_P5mm | J2 |
| 1 | 10K | Potentiometer_Bourns_3386F_Vertical | RV1 |
| 1 | PhotoDiode | LED_D5.0mm_IRGrey | D1 |
| 2 | 1N4007 | DO-41 | D5, D6 |
Infrared Gel Universal Dispenser design files
The KiCad project lives in the abdontroche/InfraRed_Gel_Universal_Dispenser repository on GitHub; these links point at the commit this page was built from.
Infrared Gel Universal Dispenser: common questions
How big is the Infrared Gel Universal Dispenser PCB?
The Infrared Gel Universal Dispenser measures 76.4 × 63.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Infrared Gel Universal Dispenser?
8 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the Infrared Gel Universal Dispenser design files?
From the abdontroche/InfraRed_Gel_Universal_Dispenser repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Infrared Gel Universal Dispenser design in my own project?
Yes, under the terms of its CC0-1.0 license, which abdontroche chose for the repository.
