Devkit-Addon
About the Devkit-Addon PCB
Devkit-Addon is an open source PCB design by AEFeinstein, published on GitHub under the MIT license. It is a 2-layer board measuring 38.7 × 47.9 mm, with 27 components from 15 distinct parts.
Other key parts include the GS321-TR and AM4311T42A0. By type, the board carries 10 resistors, 7 capacitors, 5 switches, 3 ICs, 1 connector and 1 microphone.
From the project

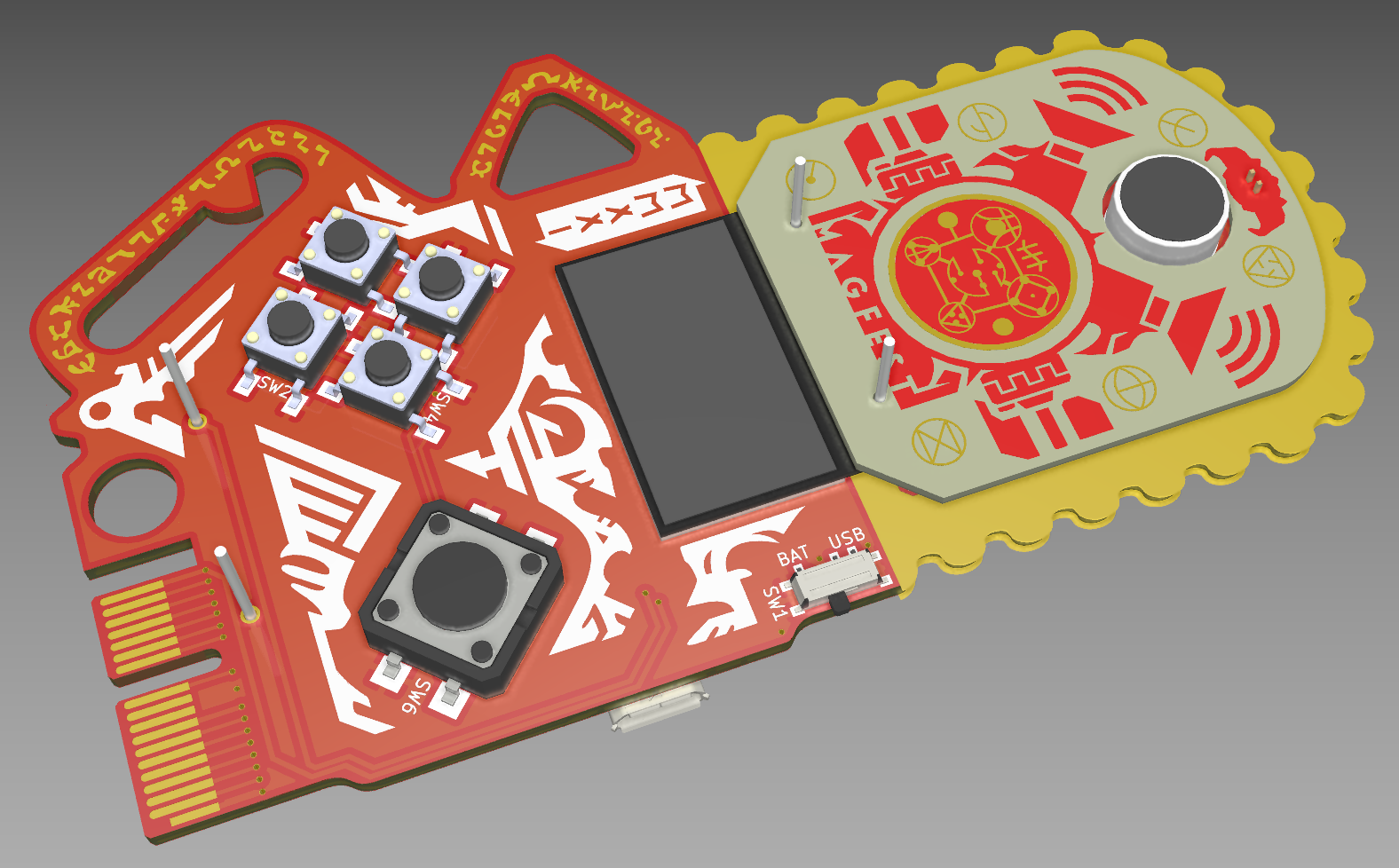

This is the hardware repository for the Super Magfest 2022 Swadge.
This is the hardware repository for the Super Magfest 2022 Swadge.
The corresponding firmware repository for the Super Magfest 2022 Swadge can be found here.
If you have any questions, feel free to create a Github ticket or email us at circuitboards@magfest.org.
Main components on the Devkit-Addon
Devkit-Addon bill of materials (BOM)
27 components, 15 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | GS321-TR | SOT-23-5 | U1, U3 |
| 1 | AM4311T42A0 | MICROPHONE-AM4311T42A0 | U2 |
| 1 | Conn_02x15_Top_Bottom | PinHeader_2x15_P2.54mm_Vertical | J1 |
| 1 | Microphone | CMA-4544PF-W | MK1 |
| 5 | 4-1437565-2 | SW_4-1437565-2 | SW1, SW2, SW3, SW4, SW5 |
| 2 | 100pF | C_0603_1608Metric | C1, C4 |
| 1 | 1uF | C_0603_1608Metric | C2 |
| 1 | 4.7uF | C_0603_1608Metric | C3 |
| 1 | 22u | C_0603_1608Metric | C5 |
| 2 | 0.22uF | C_0603_1608Metric | C6, C7 |
| 5 | 10K | R_0603_1608Metric | R1, R2, R7, R9, R10 |
| 1 | 1.5K | R_0603_1608Metric | R3 |
| 1 | 100K | R_0603_1608Metric | R4 |
| 2 | 47K | R_0603_1608Metric | R5, R6 |
| 1 | 220K | R_0603_1608Metric | R8 |
Devkit-Addon design files
The KiCad project lives in the AEFeinstein/Super-2022-Swadge-HW repository on GitHub; these links point at the commit this page was built from.
Devkit-Addon: common questions
How big is the Devkit-Addon PCB?
The Devkit-Addon measures 38.7 × 47.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Devkit-Addon?
27 components, from 15 distinct parts. The full bill of materials is listed on this page.
Where can I download the Devkit-Addon design files?
From the AEFeinstein/Super-2022-Swadge-HW repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Devkit-Addon design in my own project?
Yes, under the terms of its MIT license, which AEFeinstein chose for the repository.
